Description

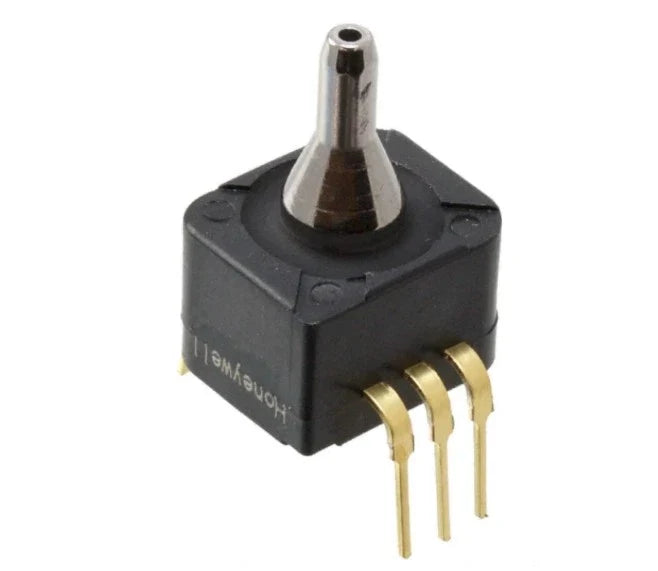

The Honeywell 40PC100G2A is a board mount gauge pressure sensor designed to measure pressures from 0 to 100 psi in dry gas and air applications. Featuring an analog voltage output and high accuracy performance, it operates from a regulated 5 VDC supply for stable signal conditioning. This sensor is engineered for PCB through-hole mounting in compact electronic and industrial control systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Sensors |
| Part Number |
40PC100G2A |
| Subcategory |
Board Mount Pressure Sensors |
| Series |
40PC |
| Pressure Type |
Gauge |
| Operating Pressure Range |
0 to 100 psi |
| Accuracy |
±0.25 % |
| Output Type |
Analog Voltage (0.5 to 4.5 V) |
| Supply Voltage Range |
4.75 to 5.25 VDC |
| Typical Supply Voltage |
5 V |
| Operating Supply Current |
10 mA |
| Response Time |
1 ms |
| Mounting Style |
PCB Through Hole |
| Package / Case |
DIP-6 |
| Port Type |
Single Axial Barbless |
| Port Size |
0.1 in |
| Media Type |
Air, Dry Gas |
| Operating Temperature Range |
-40°C to +125°C |
| Number of Pins |
6 |
| RoHS Compliant |
Yes |
| Dimensions |
13.2 x 11.2 x 19.8 mm |
| Weight |
0.34 oz |
Information About 40PC100G2A
The 40PC100G2A is part of Honeywell’s 40PC Series pressure sensors, developed for precision gauge pressure measurement in embedded and OEM designs. It utilizes a piezoresistive sensing element with integrated signal conditioning to provide a calibrated analog output proportional to applied pressure. The device is housed in a DIP-6 package with a single axial barbless port for direct tubing connection to dry gas media. Designed for reliable operation across a wide temperature range, it is suitable for industrial instrumentation, medical devices, and pneumatic monitoring systems.
Key Features:
- 0–100 psi Gauge Range: Measures positive pressure relative to ambient reference.
- Analog Voltage Output (0.5–4.5 V): Provides ratiometric output compatible with 5 V systems.
- High Accuracy: ±0.25% typical accuracy for precise pressure monitoring.
- Fast Response Time: 1 ms response supports dynamic pressure measurement.
- Through-Hole PCB Mounting: DIP-6 package simplifies board-level integration.
- Wide Operating Temperature Range: Operates from –40°C to +125°C.
- Low Supply Current: Typical 10 mA consumption for efficient system design.
- Single Axial Barbless Port: Enables secure tubing connection for air and dry gases.
The 40PC100G2A delivers the reliability and precision required for industrial instrumentation and embedded pressure sensing applications.
