Description

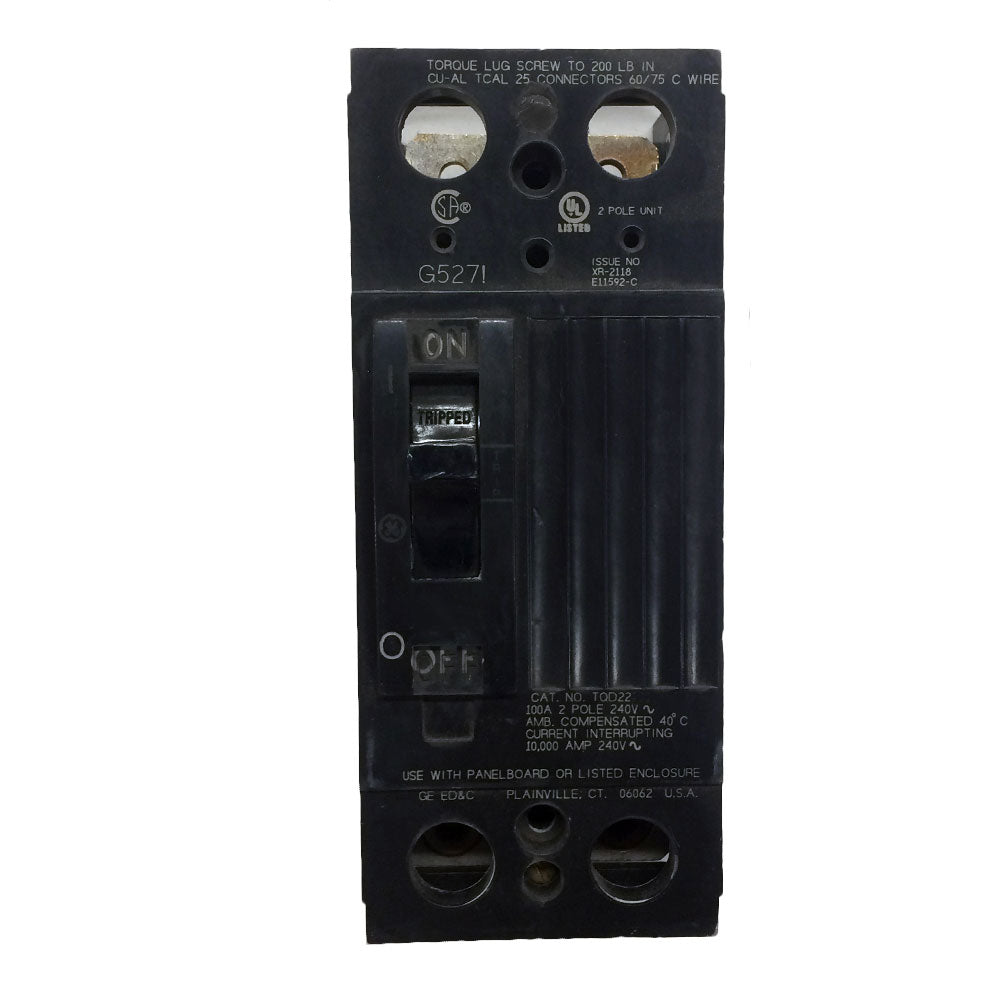

The General Electric TQD22150WL is a 2-pole molded case circuit breaker engineered to provide dependable thermal-magnetic protection in residential, commercial, and light industrial installations. With a 150-amp rating and support for 120/240 VAC systems, it ensures stable circuit interruption under both overload and fault conditions. The TQD22150WL is designed for applications requiring reliable performance, straightforward installation, and compatibility with GE Q-Line systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
General Electric |
| Category |
Circuit Protection |
| Part Number |
TQD22150WL |
| Subcategory |
Molded Case Circuit Breakers |
| Series |
TQD / Q-Line |
| Amperage Rating |
150 A |
| Voltage Rating |
120/240 VAC |
| Interrupting Rating |
14 kAIC @ 277/480 VAC; 10 kAIC @ 240 VAC |
| Number of Poles |
2 |
| Phase |
1 |
| Protection Type |
Thermal Magnetic |
| Trip Functions |
LI – Long-Time & Instantaneous |
| Connection Type |
Feed-Thru |
| Terminal Type |
Load-Side Lug |
| Wire Size Range |
4 AWG to 300 MCM |
| Actuator Type |
Toggle |
| Dimensions (H×W×D) |
6.56 × 2.75 × 2.63 in |
| Temperature Rating |
40 °C |
| Circuit Breaker Type |
Standard Molded Case |
| Weight |
2.75 lb |
Information About TQD22150WL
The TQD22150WL is part of GE’s TQD series, built with a molded case design that offers high dielectric strength and durable mechanical construction. It is compatible with lighting panels, modular metering equipment, and other systems utilizing feed-thru mounting. This breaker uses LI trip technology, providing long-time overload response along with instantaneous protection for short-circuit events. Its thermal-magnetic trip unit and standardized toggle actuator make it suitable for a wide range of single-phase power distribution applications.
Key Features:
- 150 A Circuit Protection: Provides stable overload and fault handling for single-phase electrical systems.
- Thermal-Magnetic Trip Unit: Combines long-time and instantaneous protection for accurate circuit response.
- Feed-Thru Configuration: Enables linear wiring with straightforward integration into Q-Line panel systems.
- High Mechanical Strength Case: Molded housing ensures durability and strong dielectric performance.
- Wide Wire Compatibility: Supports wire sizes from 4 AWG to 300 MCM for flexible installation conditions.
- Standard Interrupt Rating: Rated 14 kAIC at 277/480 VAC and 10 kAIC at 240 VAC for general power distribution.
- Toggle Actuator: Provides quick-make, quick-break operation and clear trip indication.
- UL and CSA Listed: Complies with recognized safety and performance standards.
The TQD22150WL delivers the reliability and precision required for molded case circuit protection in commercial and residential power distribution systems.
