Description

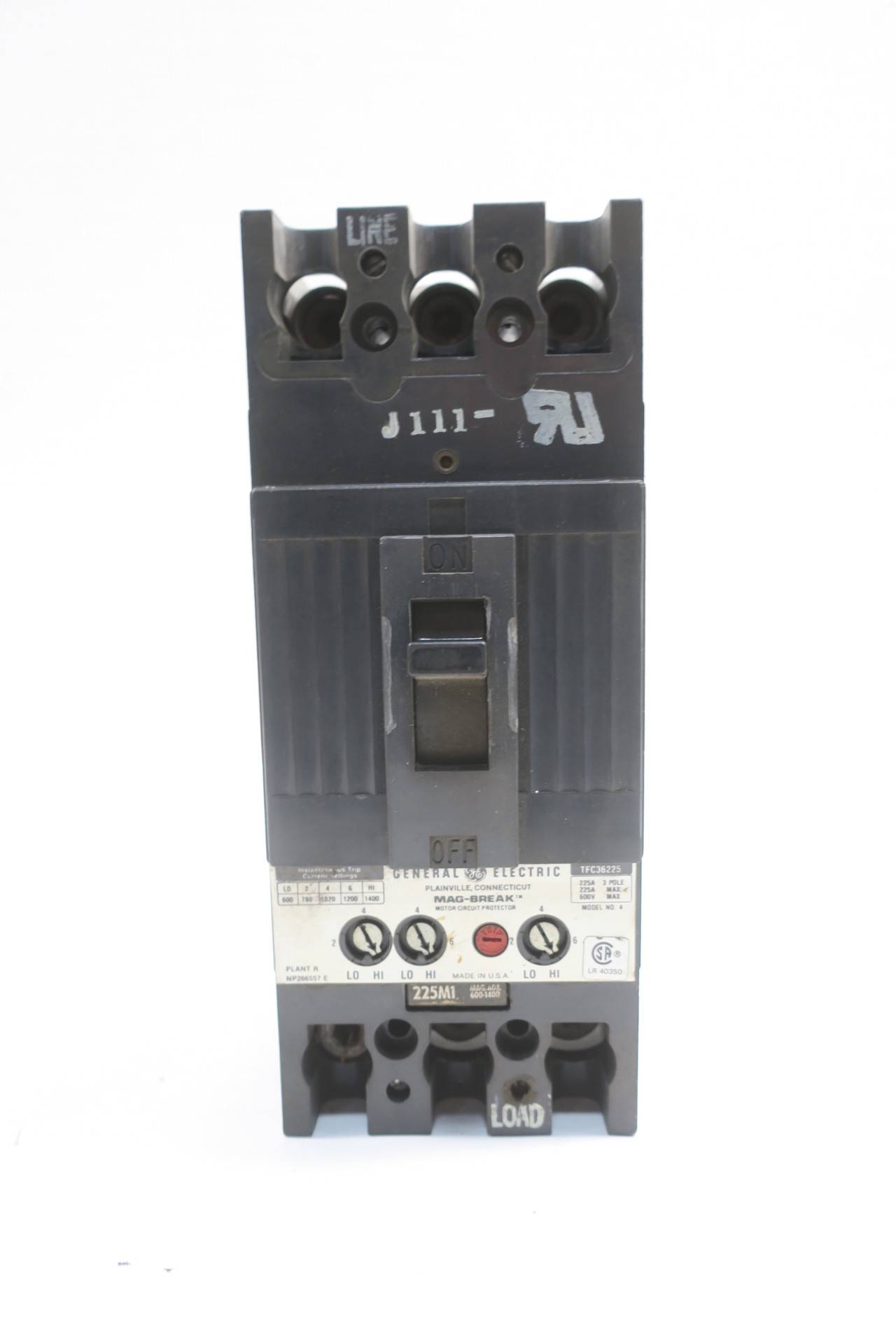

The General Electric TFC36225A is a molded case circuit breaker designed for three-phase power distribution systems. Rated at 225 amps and 600 VAC, it provides reliable overload and short-circuit protection in industrial and commercial applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
General Electric |
| Category |
Electrical Distribution |
| Part Number |
TFC36225A |
| Subcategory |
Molded Case Circuit Breaker |
| Series |
TFC |
| Breaker Type |
Molded Case Circuit Breaker (MCCB) |
| Poles |
3-pole |
| Voltage Rating |
600 V AC maximum |
| Current Rating |
225 A |
| Frequency |
50/60 Hz |
| Trip Type |
Thermal-magnetic |
| Interrupting Rating |
High fault current capacity (series dependent) |
| Frame Size |
TFC frame |
| Mounting Style |
Panelboard or switchboard installation |
| Protection Features |
Overload and short-circuit protection |
| Standards |
UL Listed, ANSI/IEEE compliant |
| Application Use |
Industrial, commercial, and utility distribution |
| Operating Temperature |
-20 °C to +40 °C |
| Weight |
Approx. 9 kg |
Information About TFC36225A
The TFC36225A is part of GE’s TFC Series molded case circuit breakers, built for dependable electrical protection in medium-capacity systems. With a 3-pole configuration and thermal-magnetic trip unit, it ensures accurate fault detection and interruption. This breaker is UL-listed and ANSI compliant, making it suitable for use in switchboards, panelboards, and motor control centers. Its rugged molded housing supports long-term durability and consistent performance in demanding environments.
Key Features:
- TFC Series: GE molded case breaker family for reliable system protection.
- 225A Rating: Supports medium-duty electrical distribution loads.
- 3-Pole Design: Provides balanced protection for three-phase systems.
- 600 VAC Maximum: Rated for industrial and commercial distribution applications.
- Thermal-Magnetic Trip: Ensures accurate overload and short-circuit protection.
- Durable Housing: Molded case construction for long service life.
- UL Listed: Meets industry safety and compliance standards.
- Versatile Applications: Suitable for panelboards, switchboards, and MCCs.
The TFC36225A delivers the reliability and protection required for safe and efficient power distribution in demanding environments.
