Description

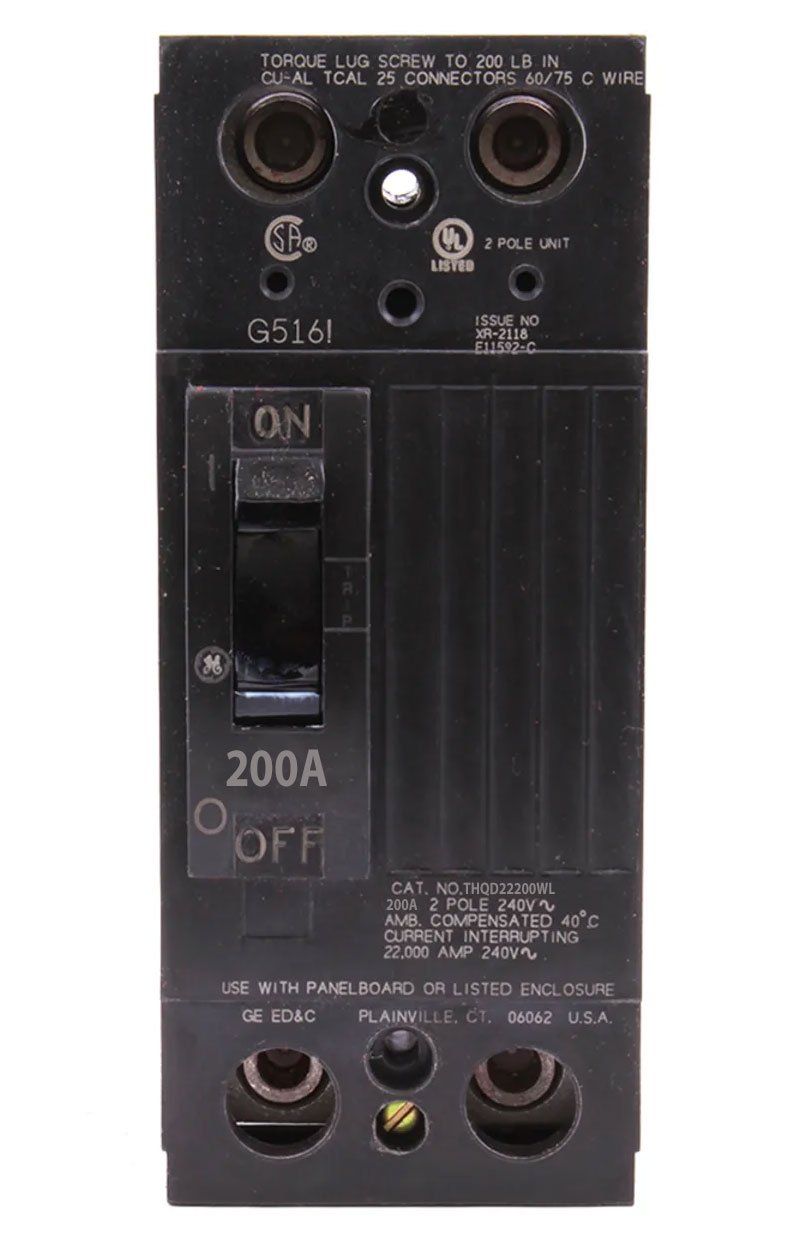

The General Electric THQD22200WL is a 2-pole molded case circuit breaker designed to provide dependable overcurrent protection in 240-volt systems. With a 200-amp rating and thermal-magnetic trip technology, it ensures accurate response to overloads and faults. This breaker is suitable for residential, commercial, and light-industrial electrical distribution applications requiring high interrupting performance.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
General Electric |
| Category |
Circuit Breaker |
| Part Number |
THQD22200WL |
| Subcategory |
Molded Case |
| Series |
THQD / Q-Line |
| Type |
Thermal Magnetic |
| Poles |
2 |
| Phase |
1 |
| Amperage Rating |
200A |
| Voltage Rating |
240V AC |
| Interrupting Rating |
22kA @ 240V |
| Trip Functions |
Long-Time & Instantaneous (LI) |
| Protection Type |
Thermal Magnetic |
| Connection Type |
Feed-Thru |
| Certifications |
UL Listed |
| Dimensions (H x W x D) |
6.56" × 2.75" × 2.67" |
| Weight |
2.76 lbs |
Information About THQD22200WL
The THQD22200WL is part of GE’s Q-Line THQD series, engineered for compatibility with panelboards and switchboards that accept THQD-frame breakers. It features a molded case housing and a non-interchangeable thermal-magnetic trip unit that provides long-time and instantaneous functions. Designed for feed-thru installations, it supports single-phase, 240-volt systems that require reliable circuit protection. Its UL listing and compact dimensions make it suitable for both new installations and replacement of existing Q-Line components.
Key Features:
- 200A Thermal-Magnetic Trip: Provides accurate overcurrent protection with long-time and instantaneous response.
- 2-Pole Configuration: Supports protection of two conductors in single-phase 240V circuits.
- 22 kA Interrupt Rating: Handles high fault currents for enhanced system safety.
- Feed-Thru Connection: Simplifies installation into compatible GE distribution equipment.
- THQD/Q-Line Series Compatibility: Ensures fit and performance consistency with GE THQD panelboard systems.
- UL Listed Construction: Meets established safety and performance standards for electrical protection devices.
- Durable Molded Case: Provides mechanical strength and stability in demanding environments.
- Compact Form Factor: Allows installation where panel space is limited.
The THQD22200WL delivers the reliability and precision required for safe and stable overcurrent protection in power distribution systems.
