Description

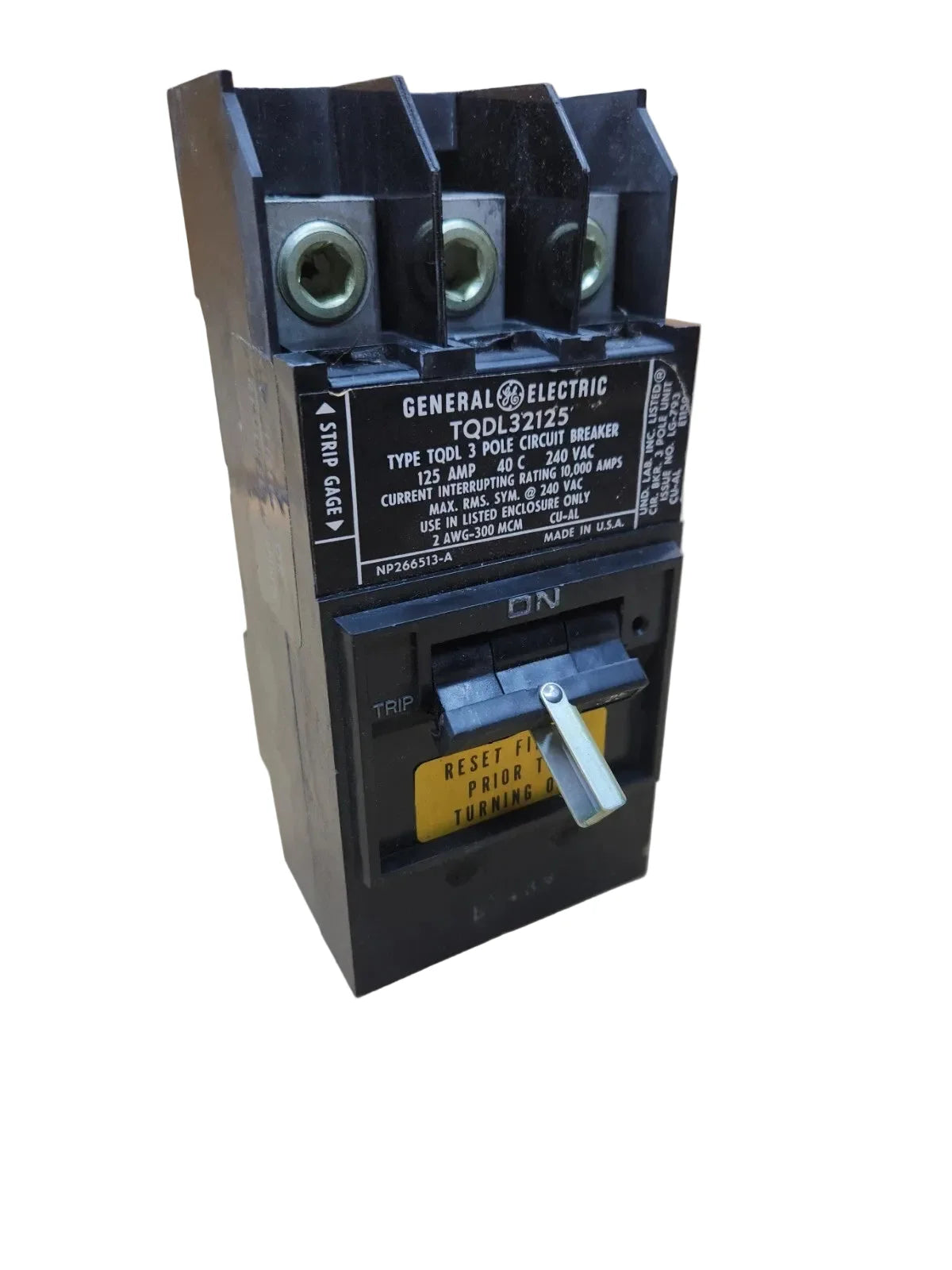

The General Electric TQDL32125 is a molded case circuit breaker designed to provide reliable overcurrent protection in commercial and industrial electrical systems. Rated at 125 amps and 240 volts AC, it ensures safe interruption of fault currents in three-phase applications. This breaker is engineered for dependable performance in panelboard and distribution systems.





Technical Specifications

Condition	New/Never Used Surplus
Brand	General Electric
Category	Electrical Products
Part Number	TQDL32125
Subcategory	Circuit Breakers
Series	Q-Line
Type	Molded Case Circuit Breaker
Amperage	125 A
Voltage Rating	240 VAC
Poles	3
Phase	Three Phase
Trip Unit	Thermal-Magnetic
Mounting Type	Bolt-On
Frequency	50/60 Hz
Application	Commercial and industrial distribution
Certifications	UL Listed
Weight	4 lbs





Information About TQDL32125

The TQDL32125 is part of General Electric’s Q-Line series of circuit breakers, known for compact design and consistent protection characteristics. It features a durable molded case construction that supports long-term operation under electrical and thermal stress conditions. The breaker utilizes a thermal-magnetic trip mechanism, combining inverse-time overload protection with instantaneous short-circuit response. Designed for compatibility with GE panelboards and load centers, it is commonly used in commercial distribution systems requiring stable and efficient circuit protection.

Key Features:

• 125 Amp Rating: Suitable for medium-load electrical distribution circuits.
• 240 VAC Operation: Designed for low-voltage commercial and industrial systems.
• Thermal-Magnetic Trip: Provides both overload and short-circuit protection.
• 3-Pole Configuration: Supports three-phase circuit protection.
• Q-Line Series Design: Ensures compatibility with GE panelboards and load centers.
• Molded Case Construction: Offers durability and electrical insulation.
• Reliable Fault Interruption: Protects circuits from damaging current surges.
• Compact Form Factor: Allows efficient use of panel space.

The TQDL32125 delivers the reliability and precision required for circuit protection in commercial and light industrial power distribution systems.
