Overview

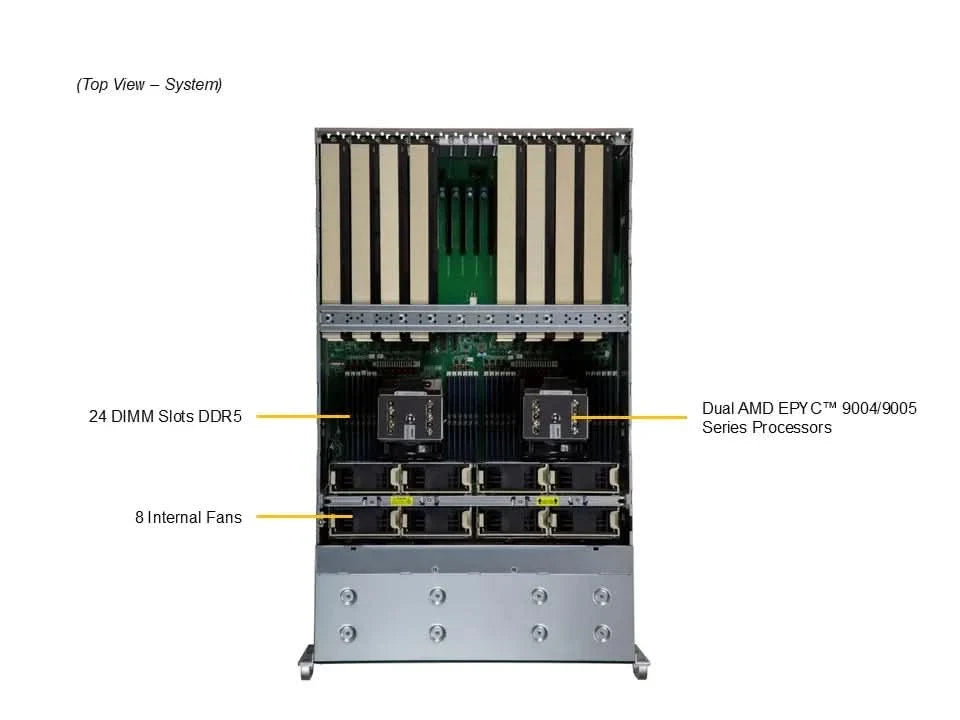

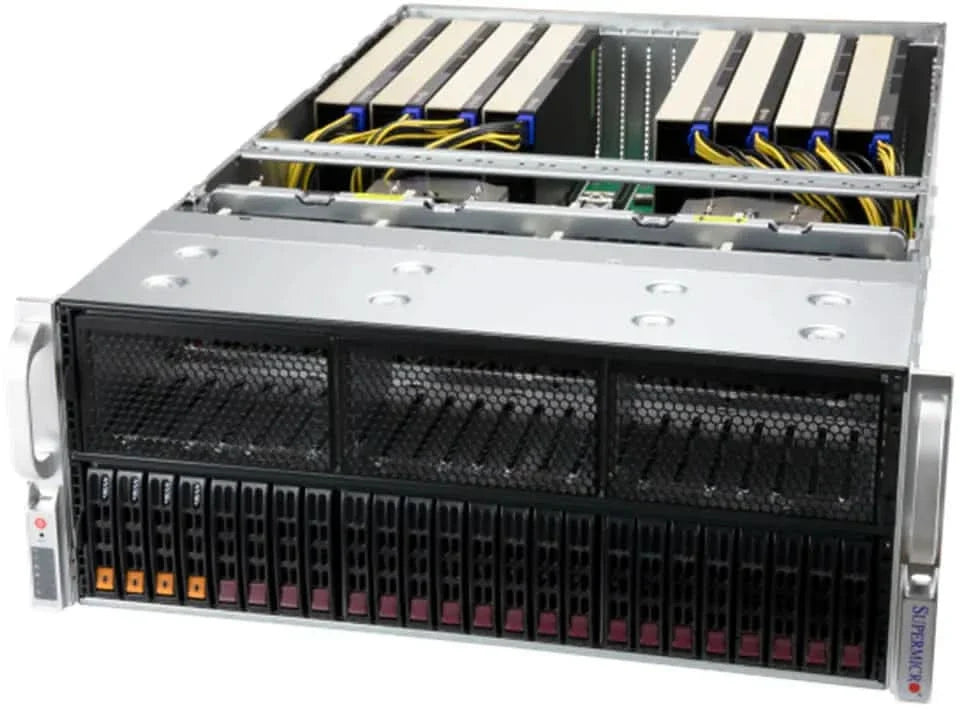

Supermicro AS-4125GS-TNRT DP AMD EPYC 9004/9005 Series GPU A+ Server delivers dual AMD EPYC processors with up to 160 cores, 24 DDR5 DIMM slots supporting 6TB ECC memory, and a 4U rackmount chassis supporting up to 8 double-width GPUs. It includes up to 10 PCIe 5.0 x16 slots, M.2 PCIe 3.0 x4 NVMe, 6 hot-swap drive bays, 4 redundant 2000W Titanium power supplies, dual 10GbE LAN, and advanced security and management features.
Specifications
Model Number:AS-4125GS-TNRT
Brand: Supermicro
Alt Part Number(s):AS -4125GS-TNRT
Product Type: GPU Server
Technical Description
Brand: Supermicro
Model:AS-4125GS-TNRT
Form Factor: 4U Rackmount, GPU Server
Processor: Dual AMD EPYC 9004 / 9005 Series (up to 160 cores per CPU)
Chipset / Platform: AMD SP5
Maximum GPU Support: Up to 8 double-width GPUs
Supported GPUs: NVIDIA H100; A100; L40; L40S; RTX Ada & Blackwell series; AMD Instinct MI100; MI210
GPU Interconnect: PCIe 5.0 x16; NVLink optional; Infinity Fabric Link optional
Memory Slots: 24 DDR5 DIMM slots
Maximum Memory Capacity: Up to 6 TB ECC DDR5 RDIMM

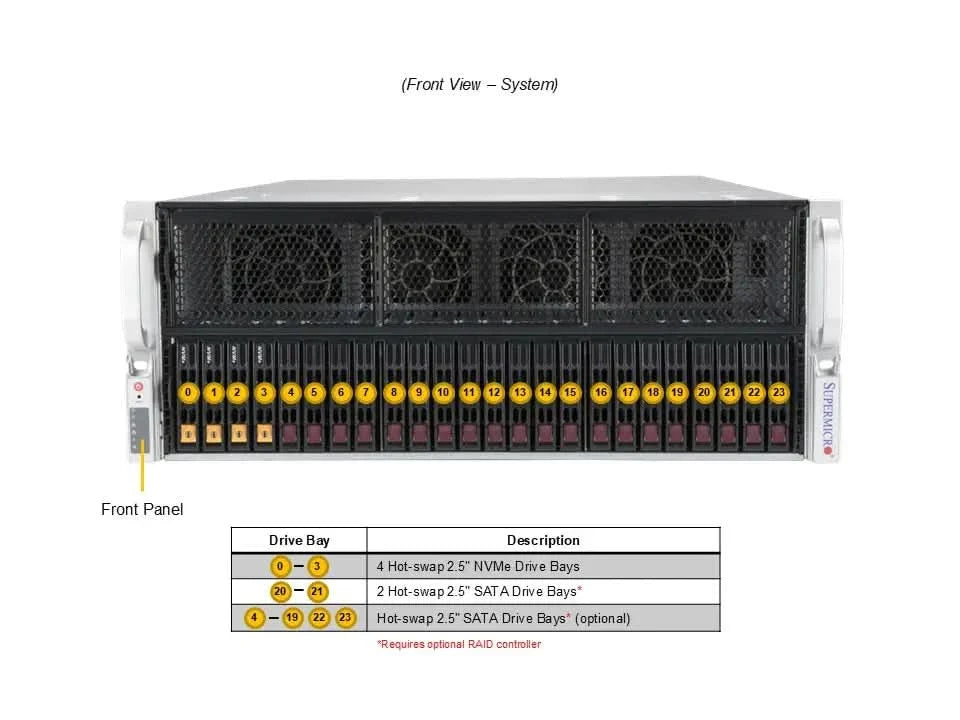

Storage Bays: Up to 6 front hot-swap 2.5 in bays (SATA + NVMe)
Internal Storage: 1 M.2 PCIe 3.0 x4 NVMe slot

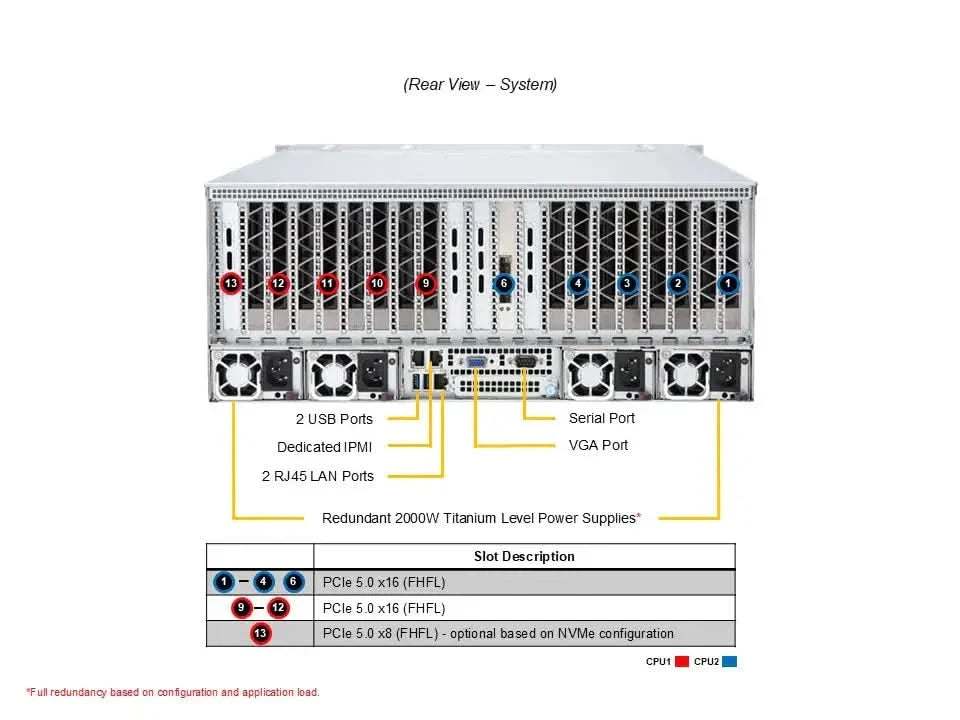

Expansion Slots: Up to 10 PCIe 5.0 x16 FHFL slots
Networking: 2 × 10GbE RJ45; 1 × 1GbE dedicated BMC
Power Supply: 4 × 2000W redundant Titanium-rated (3+1)
Cooling: Up to 8 heavy-duty system fans with speed control
Security & Management: TPM 2.0; Secure Boot; Silicon Root of Trust; Supermicro management suite
*
