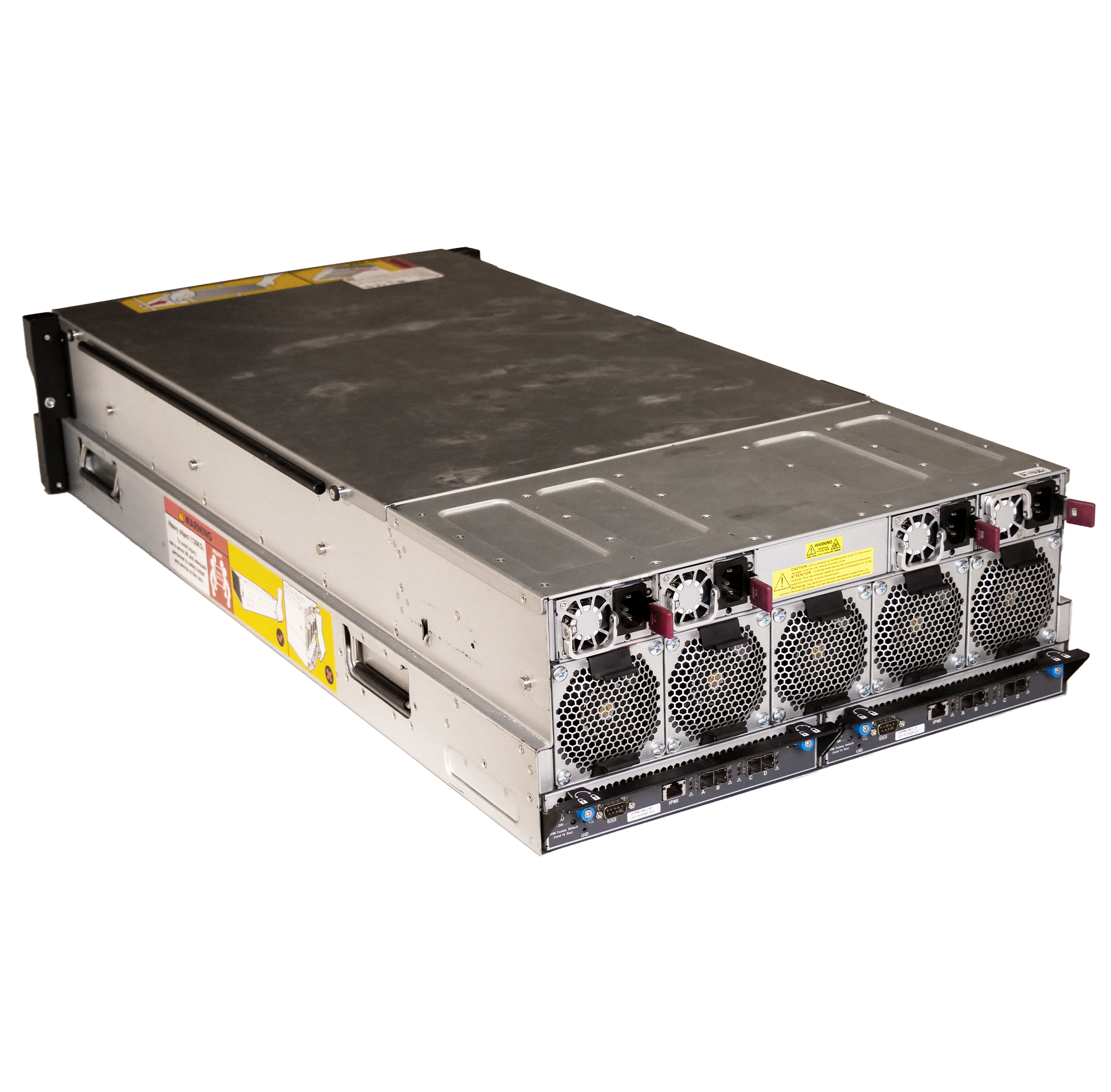

- Up to 90 Enterprise HDDs (SAS or SATA)
- Up to 2.5PB raw capacity in 4U using 28TB HDDs
- 4 rack units height
- Dual-port SAS for high availability

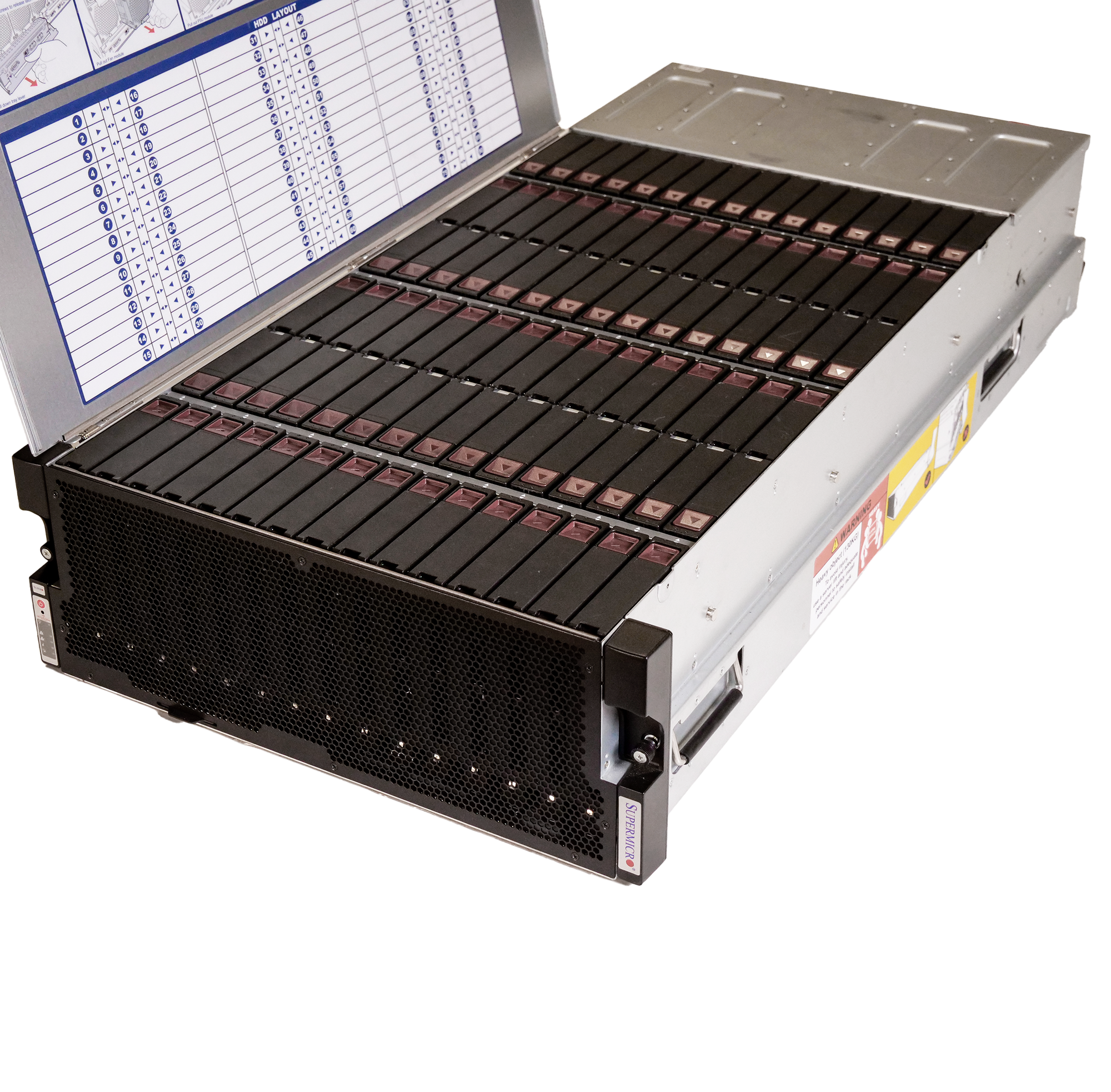

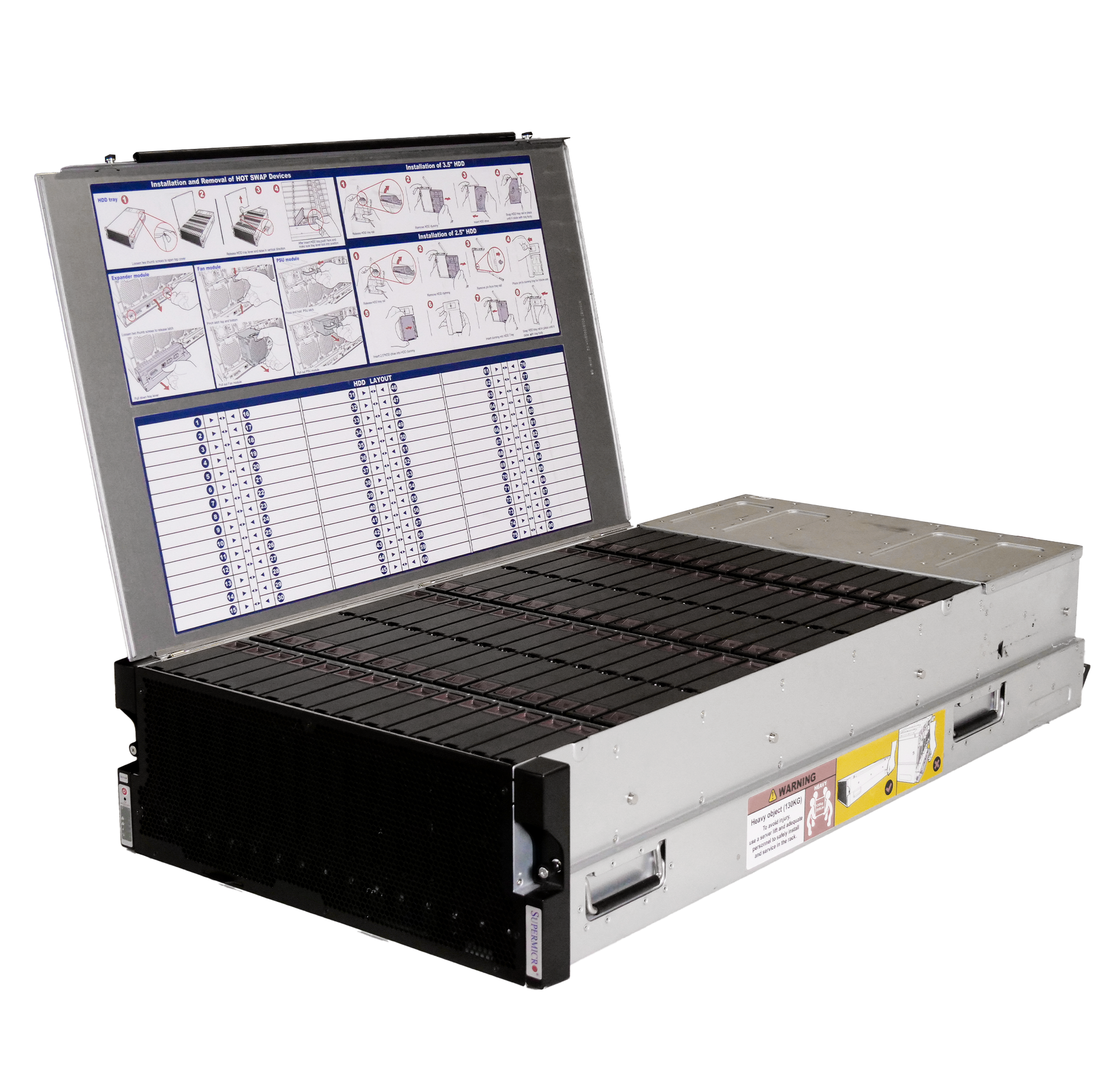

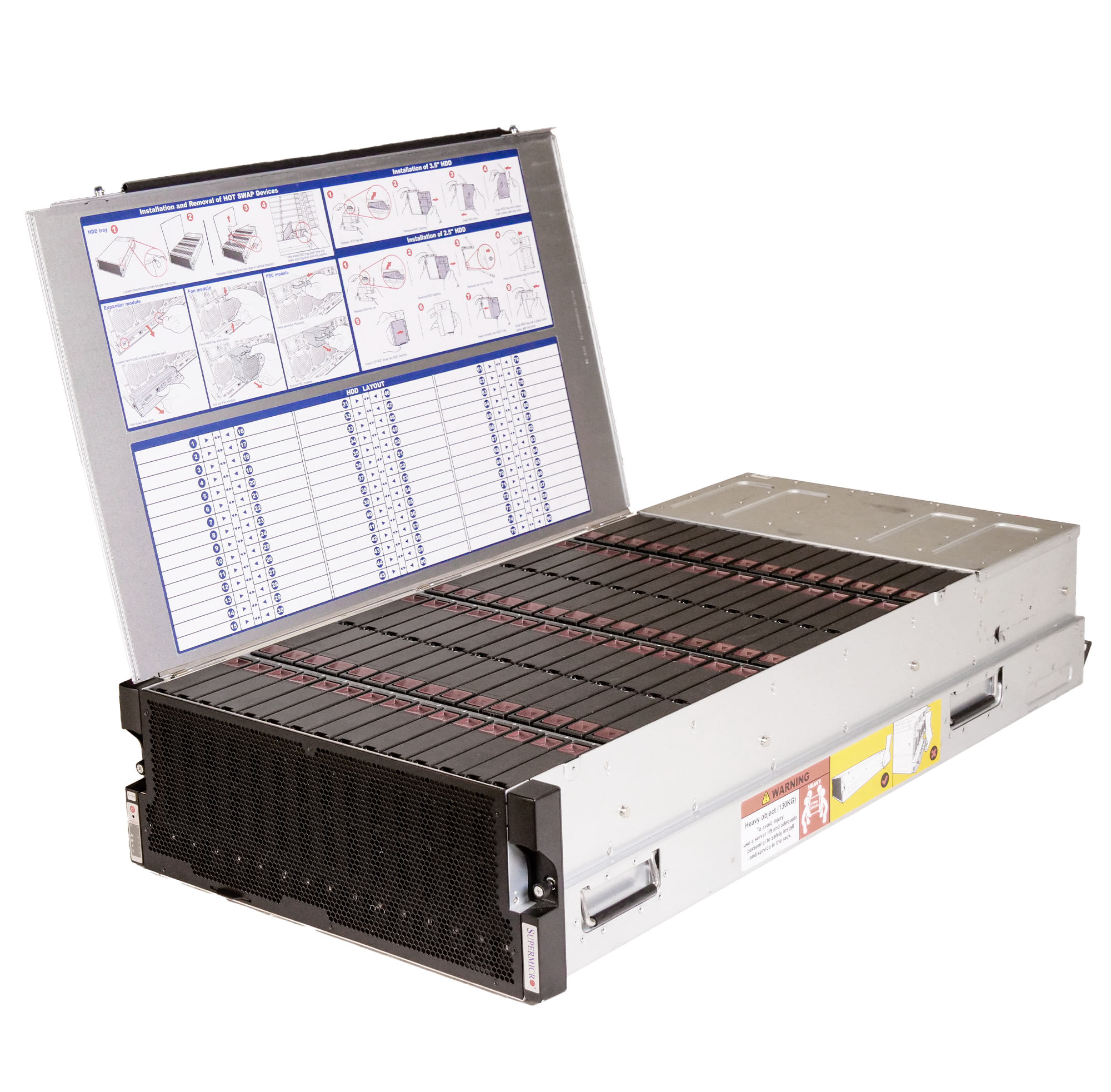

- Rack-mounted top cover for quick and easy service

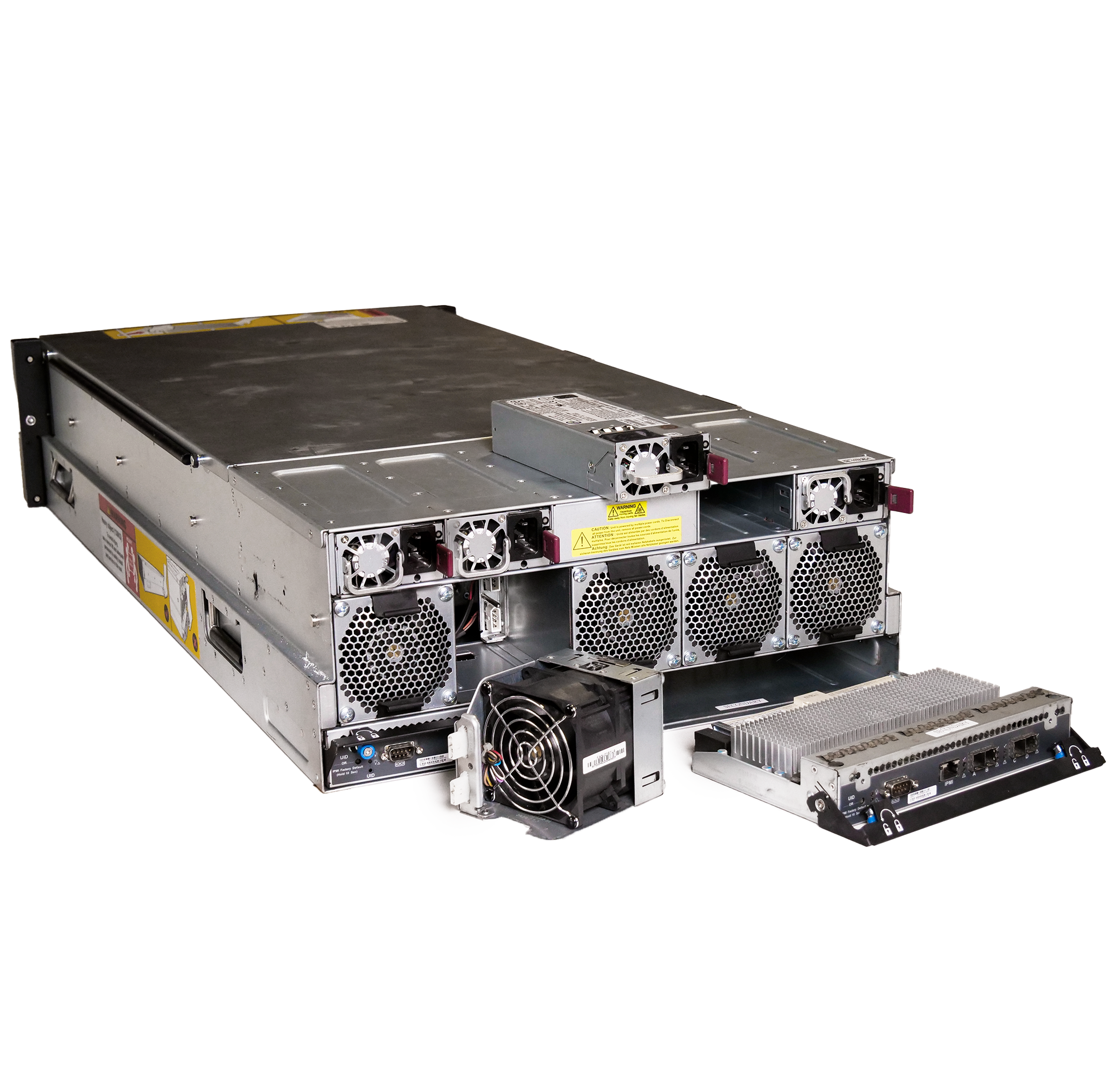

- Enterprise-grade redundant and hot-swappable PSUs, I/O modules, and fans
- JBOD ships with Rails, 2x mini SAS Cables, Trays(Bare JBOD) and Power Cable
Seller Condition Notes:
Damaged Power Buttons. All other functions including IPMI working fine:
C94600E48A10066
C94600E48A10093
C94600J35A90076
1 Bad IOM locking bar
1 bad PSU
WARRANTY
30 Day Warranty on the JBOD Unit
Note: Many configurations available, contact us via email or call us for custom options.
Applications and Workloads
- SDS Environments
- Big Data
- Private Cloud
- Data Analytics
- Cloud Infrastructure
| Max. Drives |
90 x 3.5" drive bays
|
| Drive Interface |
12Gb/s SAS
6Gb/s SATA
|
| Available Drive Capacities |
HDD up to 28TB CMR
|
| Host Interface |
Dual redundant I/O Modules (IOM)*
4x Mini-SAS HD ports per IOM
|
| Weight |
Without Drives: 59kg (130lbs)
With 90 HDDs: 120kg (265lbs)
|
| LED Indicators |
Front/Rear: Power, ID, Fault
Drive: Activity, Fault |
| Physical Dimensions |
Height: 178mm (7")
Width: 447mm (17.6")
Depth: 906mm (35.66")
|
| Management |
IPMI
|
| Power |
4x 80+ Platinum PSUs
800W with Input 100 - 127Vac
1000W with Input 200 - 240Vac
|
| Cooling |
5 80mm main enclosure fans
4x PSUs with built-in fans
|
| Environmental |
Operating Temperature: 5 C to 35 C
Non-op Temperature: -40 to 70 C
Humidity: 8 to 90% relative humidity
Operating Altitude: -300m to 3048m (-984 ft to 10,000 ft)
Sound Power: < 7.2Bels @ 23 C
|
| Serviceability |

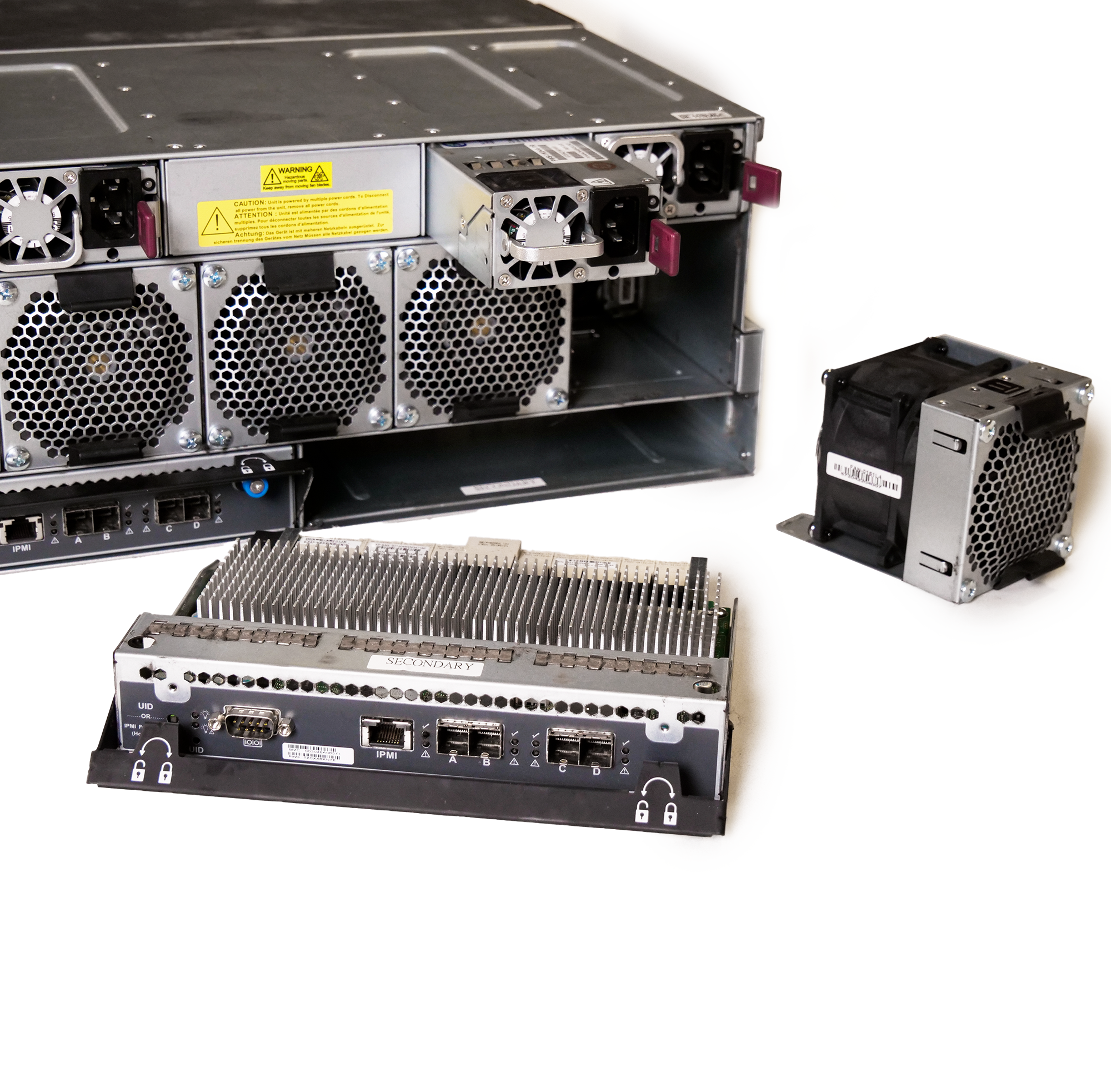

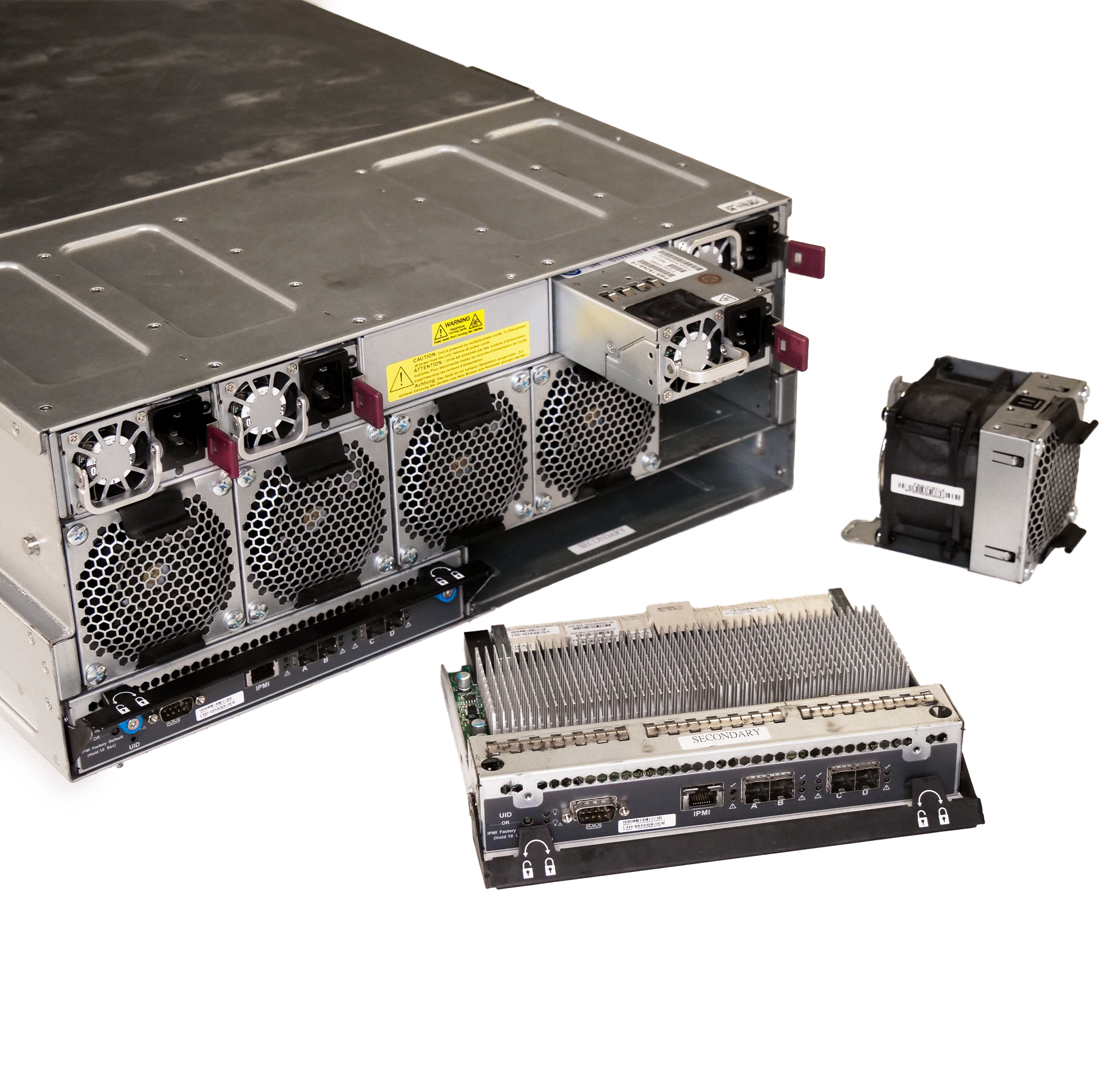

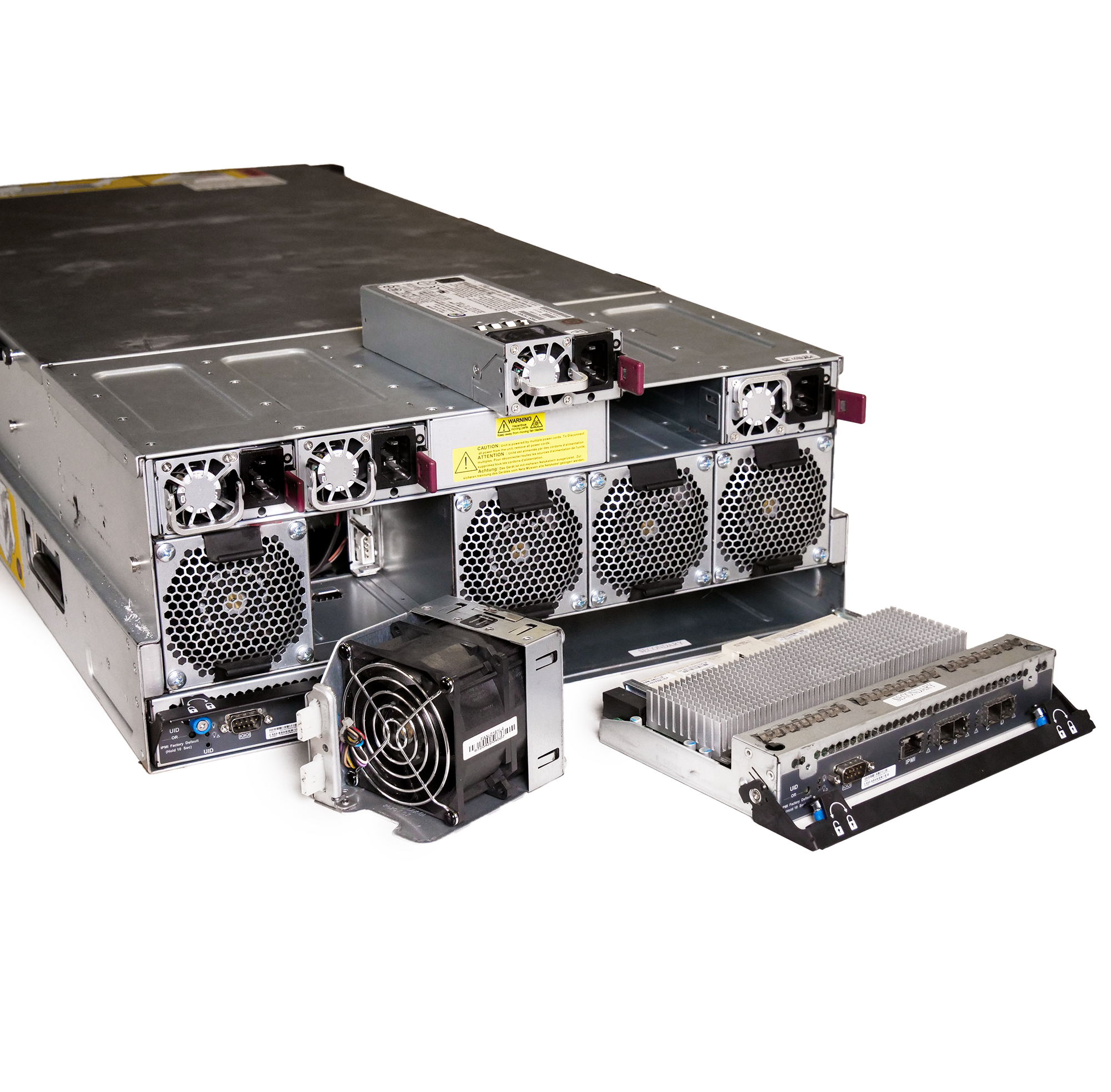

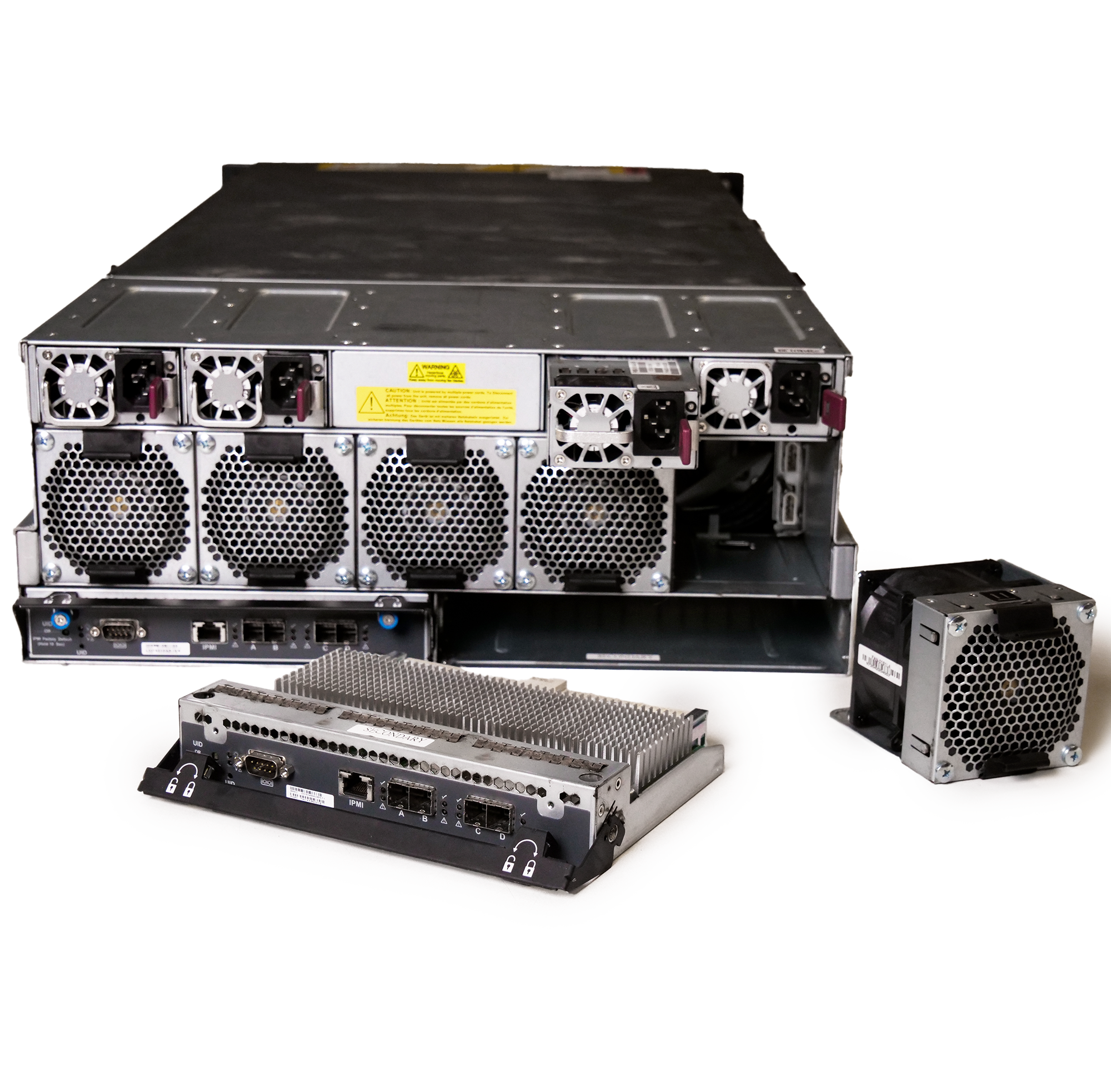

Cable-free hot-swappable IOM, power supply, fans and drives
|
