Description

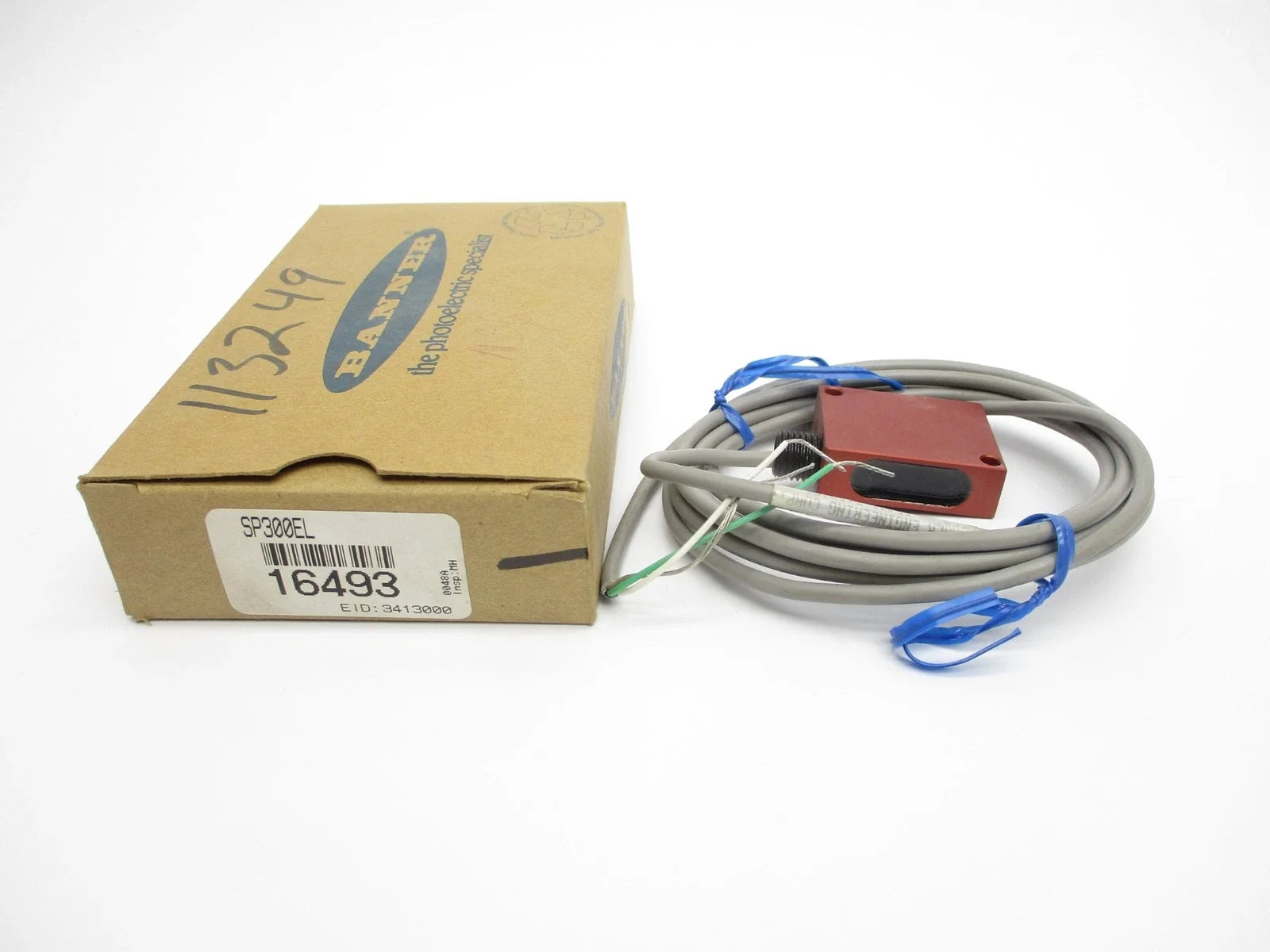

The Banner Engineering SP300EL is a long-range opposed-mode remote photoelectric emitter designed for industrial object detection systems. It operates using an 880 nm infrared light source and is intended for use with a compatible SP300RL receiver and Banner amplifier modules. The sensor supports sensing distances up to 50 feet (15 meters) in opposed mode applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Banner Engineering |
| Category |
Sensors & Switches |
| Part Number |
SP300EL |
| Subcategory |
Photoelectric |
| Series |
SP300EL/RL |
| Sensing Mode |
Opposed Mode (Emitter) |
| Maximum Sensing Range |
Up to 50 ft (15 m) |
| Light Source |
Infrared LED, 880 nm |
| Effective Beam Diameter |
0.14 in (3.6 mm) |
| Operating Temperature |
-40°C to +100°C |
| Construction |
Fully Encapsulated Anodized Aluminum |
| Environmental Rating |
NEMA 1, 3, 4, 12, 13 |
| Cable Length |
6 ft, 2-conductor PVC-covered |
| Maximum Sensor Lead Length |
100 ft |
| Weight |
0.13 kg |
Information About SP300EL

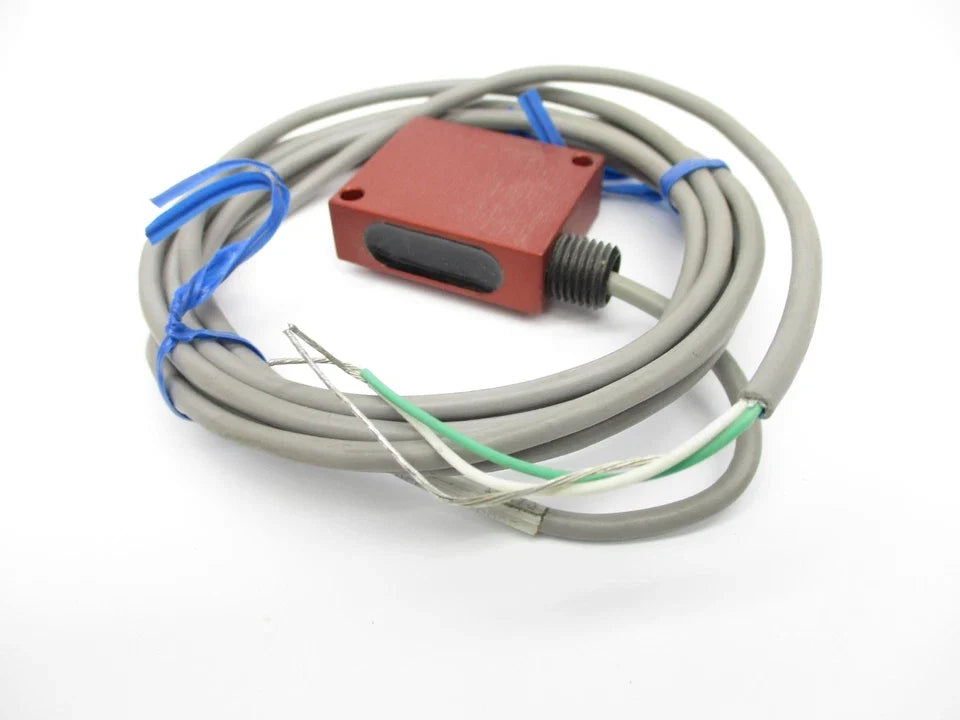

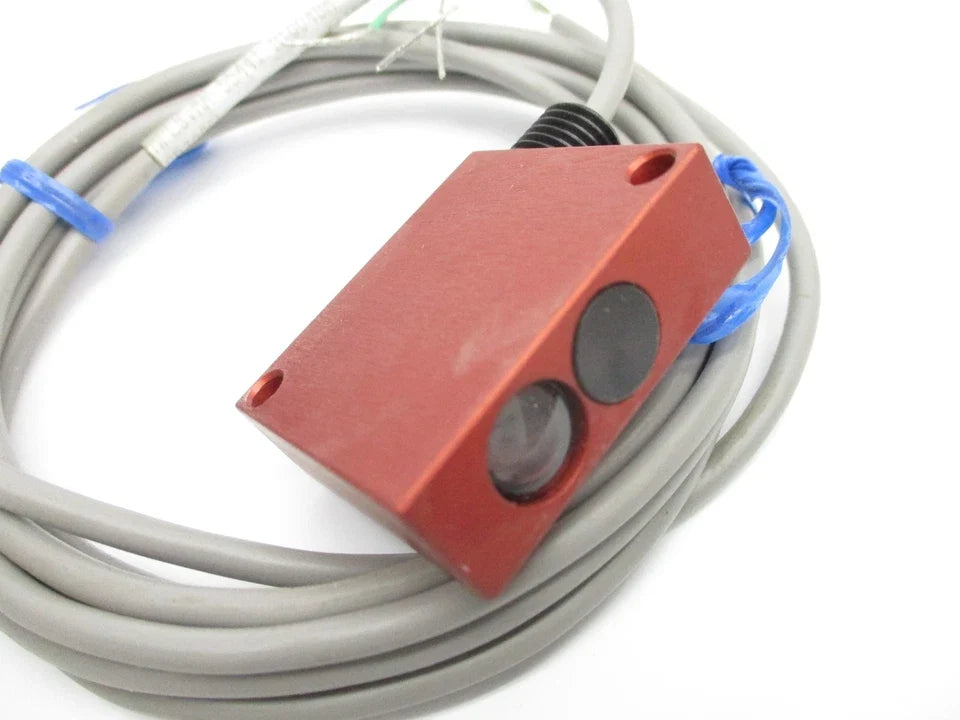

The SP300EL is part of the SP300EL/RL remote sensor pair designed for use with Banner MICRO-AMP®, MAXI-AMP™, and MB Series amplifiers. This model functions exclusively as the emitter component in an opposed-mode sensing system and must be paired with a compatible receiver. The unit is fully encapsulated in an anodized aluminum housing with metalized lenses for durability in industrial environments. It is rated for operation in temperatures from -40°C to +100°C and supports sensor lead lengths up to 100 feet when properly installed.
Key Features:
-
Opposed-mode emitter: Designed for use with SP300RL receiver.
-
Long sensing range: Up to 50 ft (15 m) in opposed configuration.
-
Infrared emission: 880 nm wavelength for industrial sensing.
-
Remote sensor configuration: Requires compatible Banner amplifier module.
-
Encapsulated aluminum housing: Anodized construction for durability.
-
Wide temperature range: Operates from -40°C to +100°C.
-
NEMA-rated enclosure: Suitable for industrial environments.
The SP300EL delivers the reliability and precision required for long-range opposed-mode industrial photoelectric sensing applications.
