Description

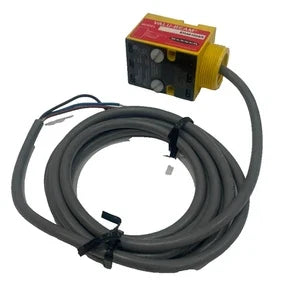

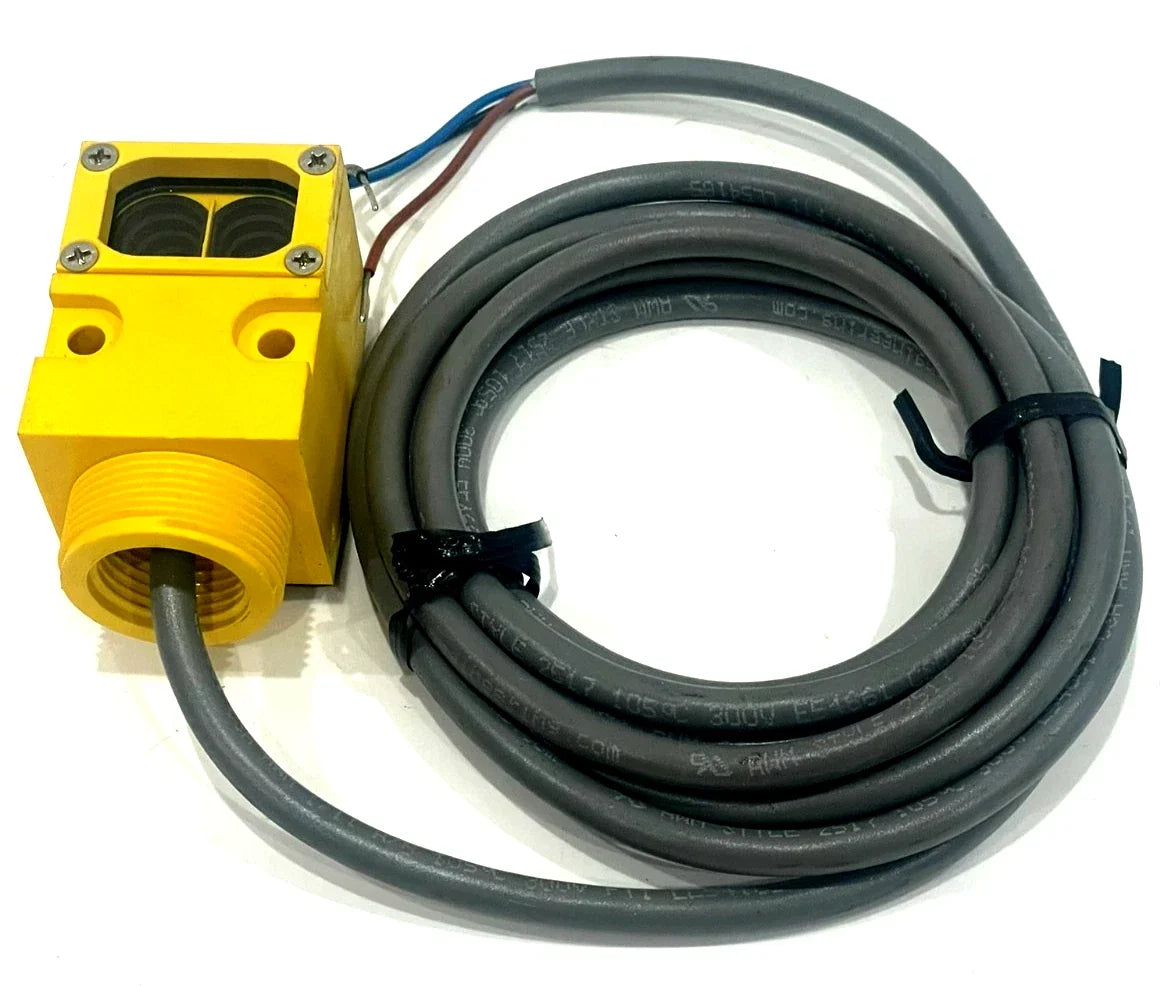

The Banner Engineering SMA912DSR photoelectric sensor is a diffuse reflective sensor designed for reliable non-contact object detection in industrial automation systems. Using an infrared light source, it provides stable sensing performance over a fixed range for general-purpose detection applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Banner Engineering |
| Category |
Sensors |
| Part Number |
SMA912DSR |
| Subcategory |
Photoelectric Sensors |
| Series |
SMA912 Series |
| Sensor Type |
Photoelectric Sensor |
| Sensing Mode |
Diffuse (Reflective) |
| Light Source |
Infrared |
| Measurement Range |
381 mm |
| Supply Voltage |
24–130 VAC |
| Lens Type |
Clear Flat Lens |
| Connection Type |
Cable |
| Application Use |
Industrial Object Detection |
| Operating Environment |
Industrial |
| Weight |
0.75 lbs |
Information About SMA912DSR
The SMA912DSR is part of Banner Engineering’s SMA912 Series, developed for dependable photoelectric sensing in AC-powered industrial environments. This sensor operates in diffuse sensing mode and uses an infrared emitter paired with a clear flat lens to detect objects within its specified range. It is designed to run on a wide 24–130 VAC supply, making it suitable for direct integration into AC control circuits without additional power conversion. With a cable connection and robust industrial construction, it supports consistent operation in factory automation and material handling applications.
Key Features:
- Diffuse Photoelectric Sensing: Detects objects directly without the need for a reflector.
- Infrared Light Source: Provides stable, non-visible sensing for reliable detection.
- Fixed Detection Range: Supports sensing distances up to 381 mm.
- Wide AC Supply Range: Operates on 24–130 VAC for flexible installation.
- Clear Flat Lens Design: Enhances optical performance and detection consistency.
- SMA912 Series Compatibility: Designed for use in Banner SMA912 photoelectric systems.
The SMA912DSR delivers the reliability and precision required for industrial diffuse photoelectric sensing and object detection applications.
