Description

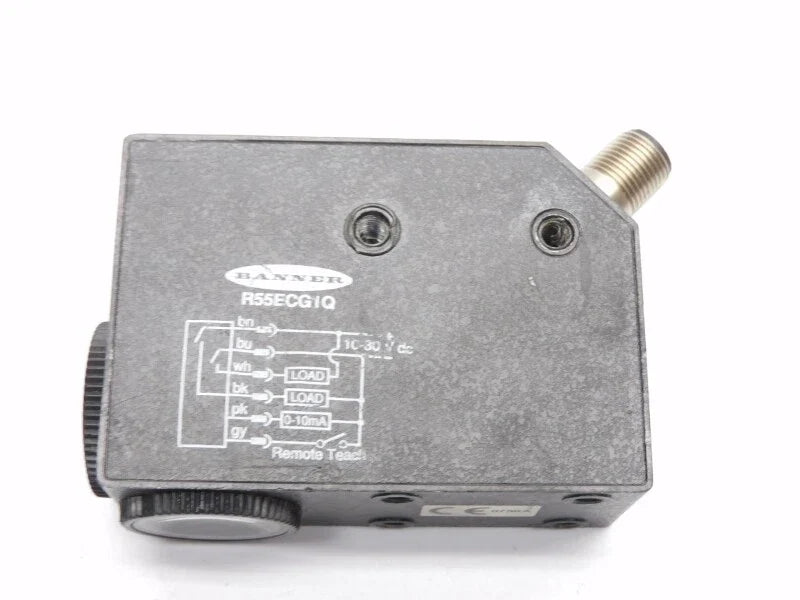

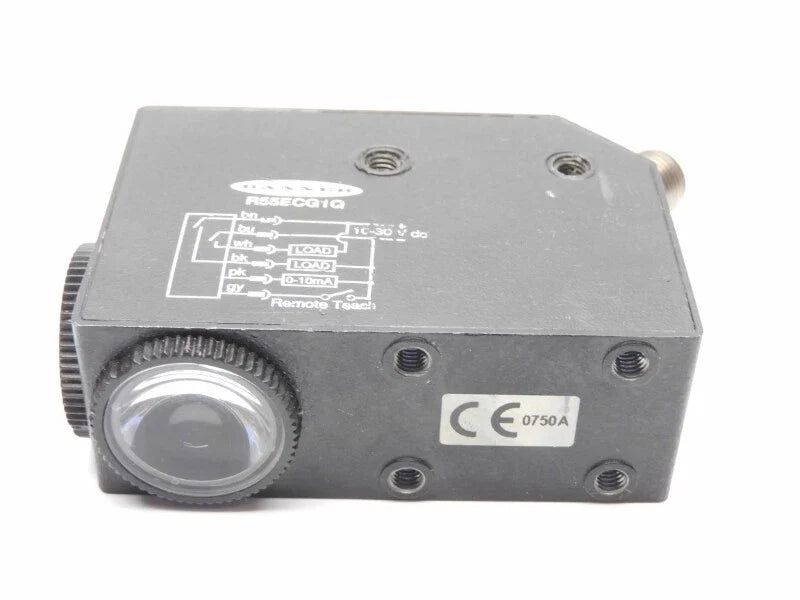

The Banner Engineering R55ECG1Q color mark sensor is a convergent optical sensor designed for precise color and contrast detection in industrial automation systems. Utilizing a blue-green LED sensing beam, this sensor provides reliable non-contact detection for high-speed packaging, printing, and material handling applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Banner Engineering |
| Category |
Sensors |
| Part Number |
R55ECG1Q |
| Subcategory |
Color Mark Sensors |
| Series |
R55 Expert Color Mark Series |
| Sensor Type |
Color Mark / Contrast Sensor |
| Optical Design |
Convergent |
| Parallel Focal Point |
10 mm |
| Light Source |
Blue-Green LED |
| Supply Voltage |
10–30 VDC |
| Discrete Output Type |
Bipolar NPN/PNP |
| Analog Output |
0–10 mA |
| Operation Modes |
Dark-ON / Light-ON |
| Indicator |
Bargraph |
| Connection Type |
M12 Integral Quick Disconnect |
| Number of Pins |
6 |
| Application Use |
Color Mark Detection |
| Operating Environment |
Industrial |
| Weight |
0.89 lbs |
Information About R55ECG1Q
The R55ECG1Q is part of Banner Engineering’s R55 Expert Color Mark Series, developed for high-accuracy color discrimination at close sensing distances. This sensor features a convergent optical design with a fixed parallel focal point of 10 mm, ensuring consistent detection performance on moving targets. It operates on a 10–30 VDC power supply and supports both bipolar NPN/PNP discrete outputs and a 0–10 mA analog output for flexible system integration. Designed with an integral M12 quick-disconnect connector and a built-in bargraph indicator, it supports efficient installation, setup, and diagnostics in industrial environments.
Key Features:
- Convergent Color Mark Sensing: Optimized for accurate detection at a fixed 10 mm focal distance.
- Blue-Green LED Light Source: Enhances contrast detection across a wide range of colors and materials.
- Bipolar NPN/PNP Outputs: Supports flexible wiring for compatibility with various control systems.
- Analog Output Capability: Provides a 0–10 mA signal for monitoring and fine adjustment.

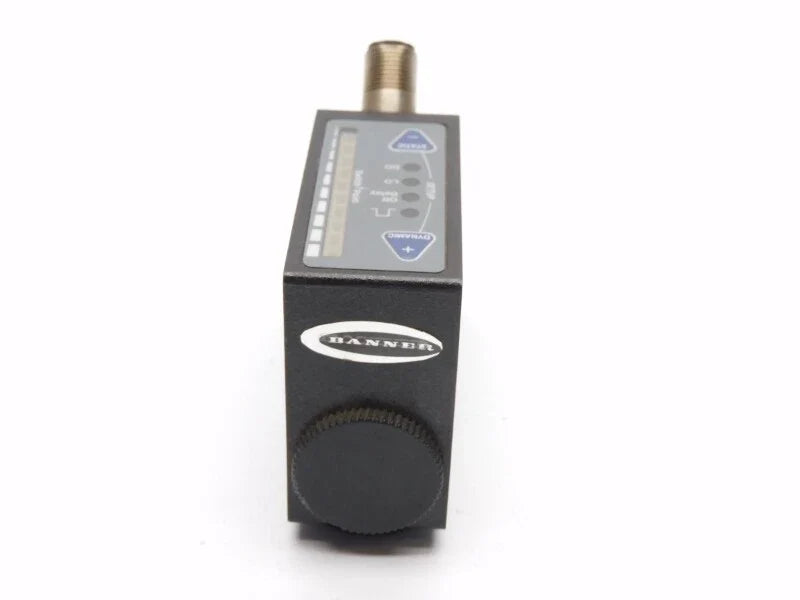

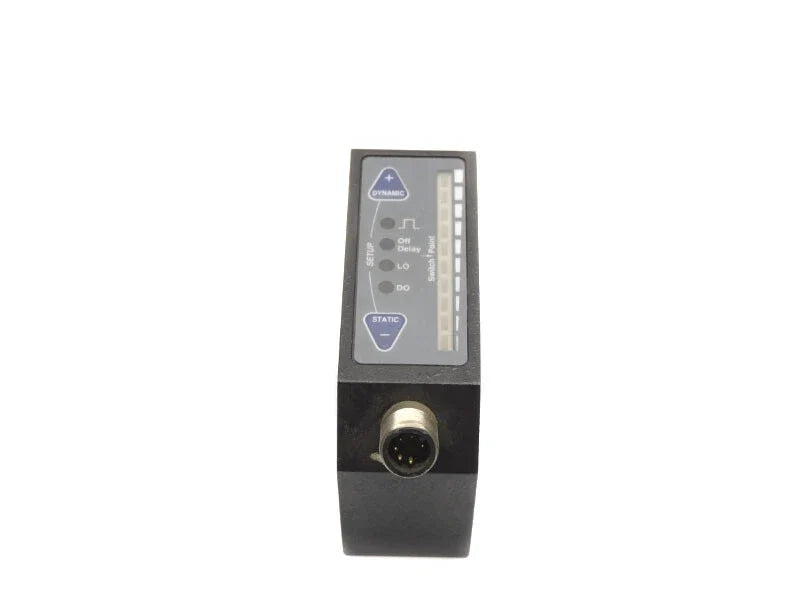

- Integrated Bargraph Indicator: Offers real-time visual feedback for signal strength and alignment.
- M12 Quick-Disconnect Connector: Ensures secure, vibration-resistant electrical connections.
- Expert Series Performance: Designed for high-speed and high-precision industrial sensing tasks.
The R55ECG1Q delivers the reliability and precision required for industrial color mark detection and automated inspection applications.
