Description

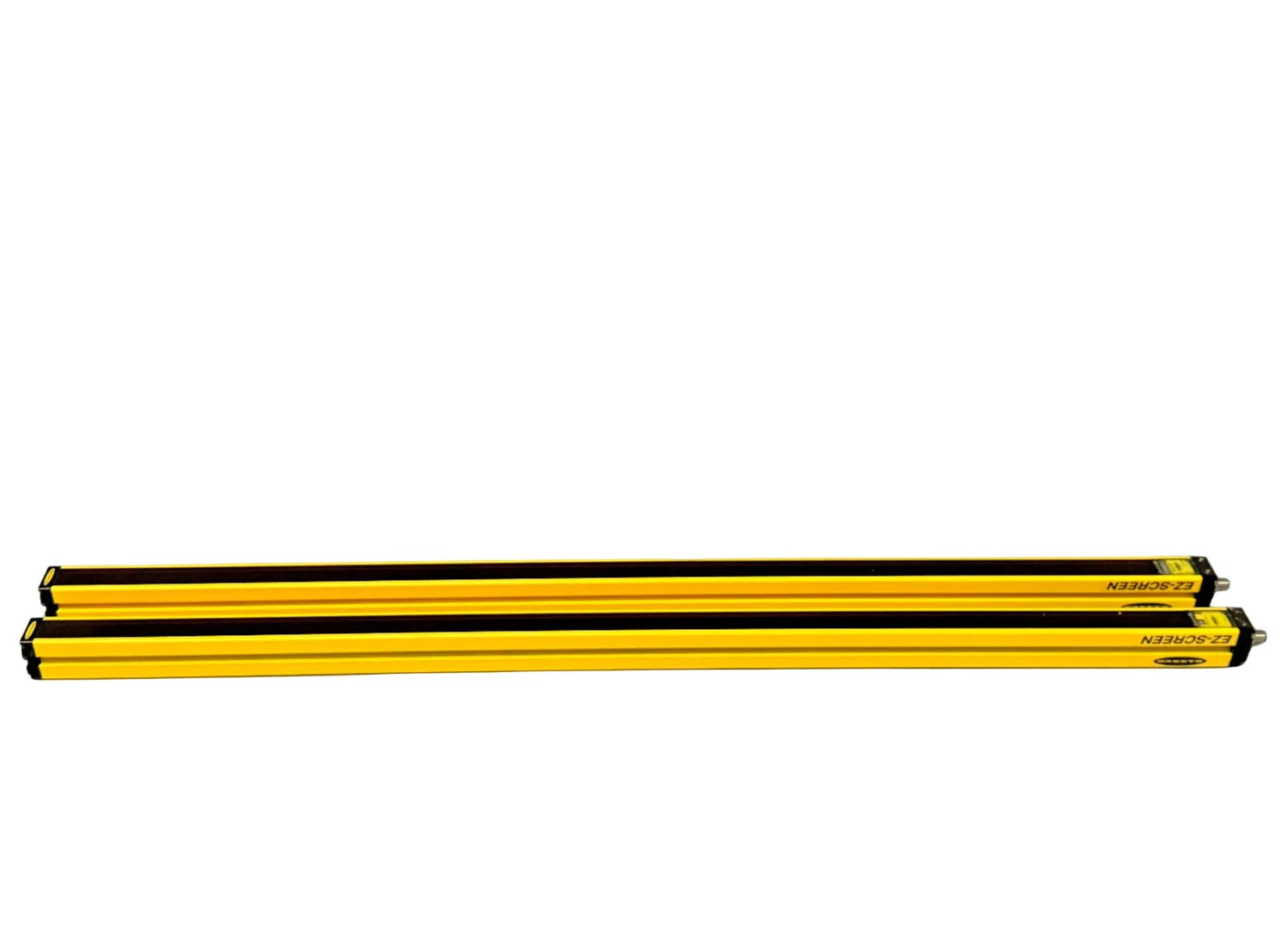

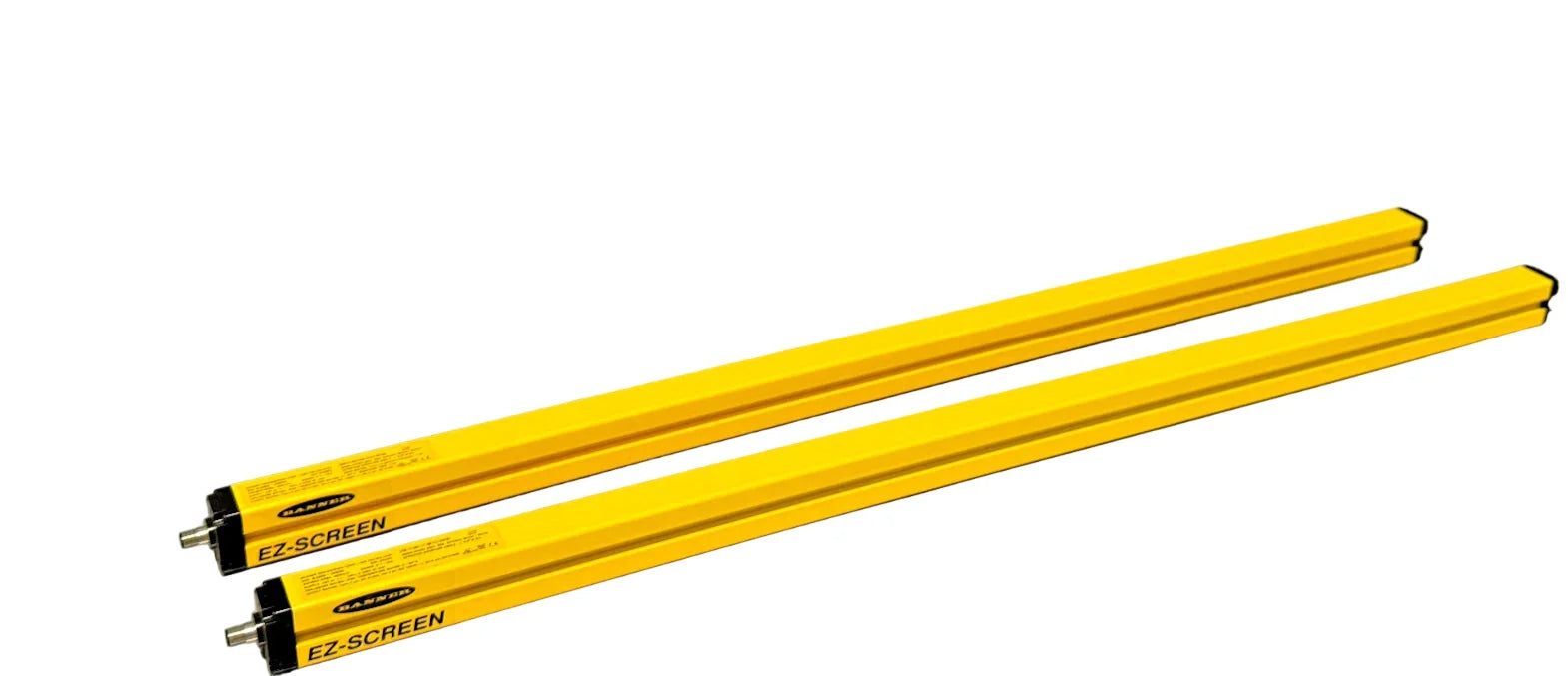

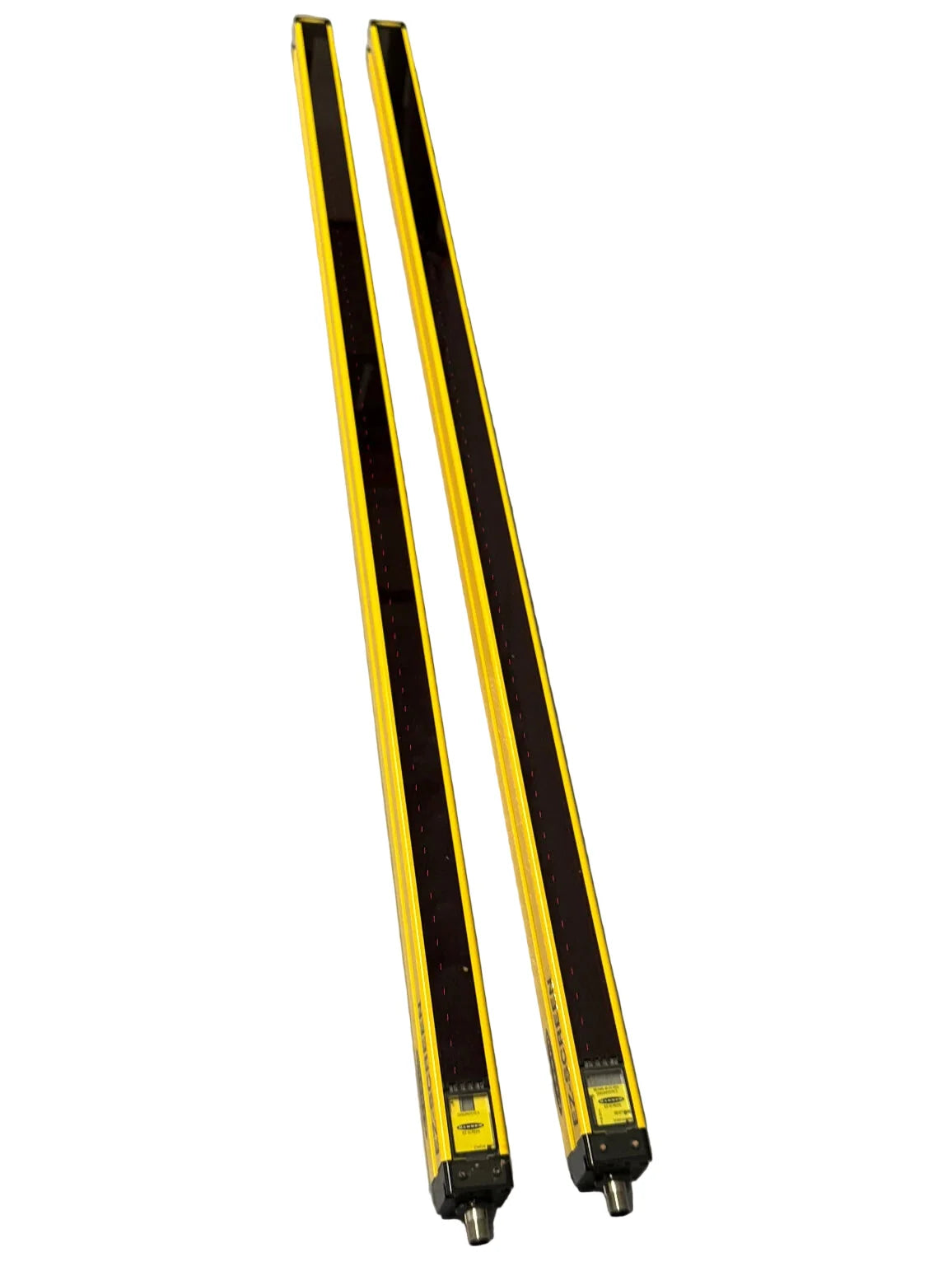

The Banner SLSE30-1050Q8 Safety Light Curtain is a safeguarding device designed to protect personnel by creating a protective optical barrier across hazardous machine access points. With a protective field height of 1050 mm and 30 mm beam resolution, the SLSE30-1050Q8 ensures reliable detection of hands and fingers in industrial applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Banner |
| Category |
Safety Devices |
| Part Number |
SLSE30-1050Q8 |
| Subcategory |
Safety Light Curtains |
| Series |
SLSE Series |
| Function |
Safety light curtain for machine guarding |
| Protective Field Height |
1050 mm |
| Beam Resolution |
30 mm (hand/finger detection) |
| Detection Type |
Infrared beam interruption |
| Operating Range |
Up to several meters (model dependent) |
| Response Time |
Typically < 20 ms |
| Connection Type |
8-pin Quick-Disconnect (Q8) |
| Power Supply |
24 V DC |
| Housing Material |
Rugged aluminum extrusion |
| Protection Rating |
IP65 |
| Operating Temperature |
0°C to +55°C |
| Indicators |
LED alignment and status indicators |
| Certifications |
CE, UL, TUV, and other applicable safety standards |
| Mounting Options |
Vertical or horizontal installation |
| Applications |
Robotic cells, presses, conveyors, assembly stations |
| Weight |
Approx. 2.3 kg |
Information About SLSE30-1050Q8
The SLSE30-1050Q8 is part of Banner’s SLSE Series of safety light curtains, engineered for access guarding and point-of-operation safety. Designed with a 1050 mm protective field height and 30 mm resolution, it offers effective detection for medium-to-large openings. Featuring rugged aluminum housing and an IP65 rating, the SLSE30-1050Q8 withstands demanding factory conditions. It integrates easily using its quick-disconnect (Q8) connector, making it suitable for robotic cells, presses, conveyors, and assembly stations.
Key Features:
- Protective Field Height: 1050 mm coverage for safeguarding taller machine openings.
- High Resolution: 30 mm beam spacing for accurate hand and finger detection.
- Infrared Beam Array: Provides a continuous optical barrier for personnel safety.
- Durable Construction: Rugged aluminum housing with IP65 environmental protection.
- Quick-Disconnect Connector: 8-pin QD design simplifies installation and replacement.
- Fast Response Time: Ensures rapid machine stop when beams are interrupted.
- Flexible Mounting: Supports vertical or horizontal orientation.
- Safety Compliance: Meets IEC, ISO, and EN standards for machine safeguarding.
The SLSE30-1050Q8 delivers the reliability and precision required for protecting operators and equipment in industrial automation environments.
