Description

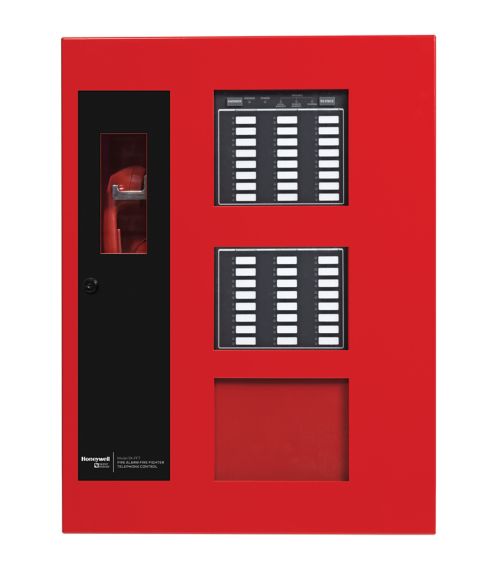

The Silent Knight SK-FFT Fire Fighters Telephone Communication System provides centralized control, annunciation, and supervision of firefighter telephone circuits. Designed for emergency communication in fire alarm systems, the SK-FFT allows responders to establish reliable two-way voice communication throughout protected buildings. The system supports up to 48 zones and integrates with addressable modules and telephone jacks for efficient field operations.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Silent Knight |
| Category |
Fire Alarm Systems |
| Part Number |
SK-FFT |
| Subcategory |
Fire Fighters Telephone Communication System |
| System Type |
Firefighter Telephone Control System |
| Number of Zones |
Up to 48 (with FFT-24 expander) |
| Inputs/Outputs |
Four 24 VDC notification appliance circuits |
| Maximum Handsets |
10 simultaneous handsets |
| Voltage |
24 VDC nominal, power-limited |
| Standby Current |
120 mA |
| Active Current |
230 mA |
| SLC Circuit Current |
150 mA at 32V |
| Audio Circuit Output |
17V; 53mA |
| Trouble Relay |
One Form C contact |
| Certifications |
UL, FM, CSFM, NYFD (MEA) |
| Cabinet Color |
Red |
| Mounting Options |
Surface or flush mount |
| Dimensions |
20”W × 26.5”H × 4.6”D (50.75 × 67.3 × 11.8 cm) |
| Weight |
16 lbs |
Information About SK-FFT
The SK-FFT is a fully integrated firefighter telephone control system from Silent Knight, a division of Honeywell. It includes a keypad interface for direct annunciation and monitoring of active telephones and trouble signals. The unit supports expansion through the FFT-24 board, allowing up to 48 zones per system. Each zone uses addressable monitor modules (SK-Minimon) and Fire Fighter Telephone Jacks (FFT-FPJ) to ensure scalable and code-compliant emergency communication coverage.
Key Features:
- Scalable Design: Supports up to 48 addressable zones when paired with one FFT-24 expander board.
- Multi-Handset Operation: Allows up to 10 firefighter handsets to communicate simultaneously.
- Comprehensive Supervision: Monitors phone activation and system trouble conditions in real time.
- Auto Programming: Includes JumpStart™ auto-configuration for rapid setup and deployment.
- Trouble Relay Output: Equipped with a Form C trouble relay for external signaling and monitoring.
- UL and FM Certified: Fully listed and approved by UL, FM, CSFM, and NYFD (MEA).
- Rugged Construction: Housed in a durable, red steel cabinet suitable for surface or flush mounting.
- Flexible Integration: Compatible with Silent Knight fire alarm control systems and 24 VDC notification circuits.
The SK-FFT delivers the reliability and precision required for critical firefighter communication and emergency coordination.
