Description

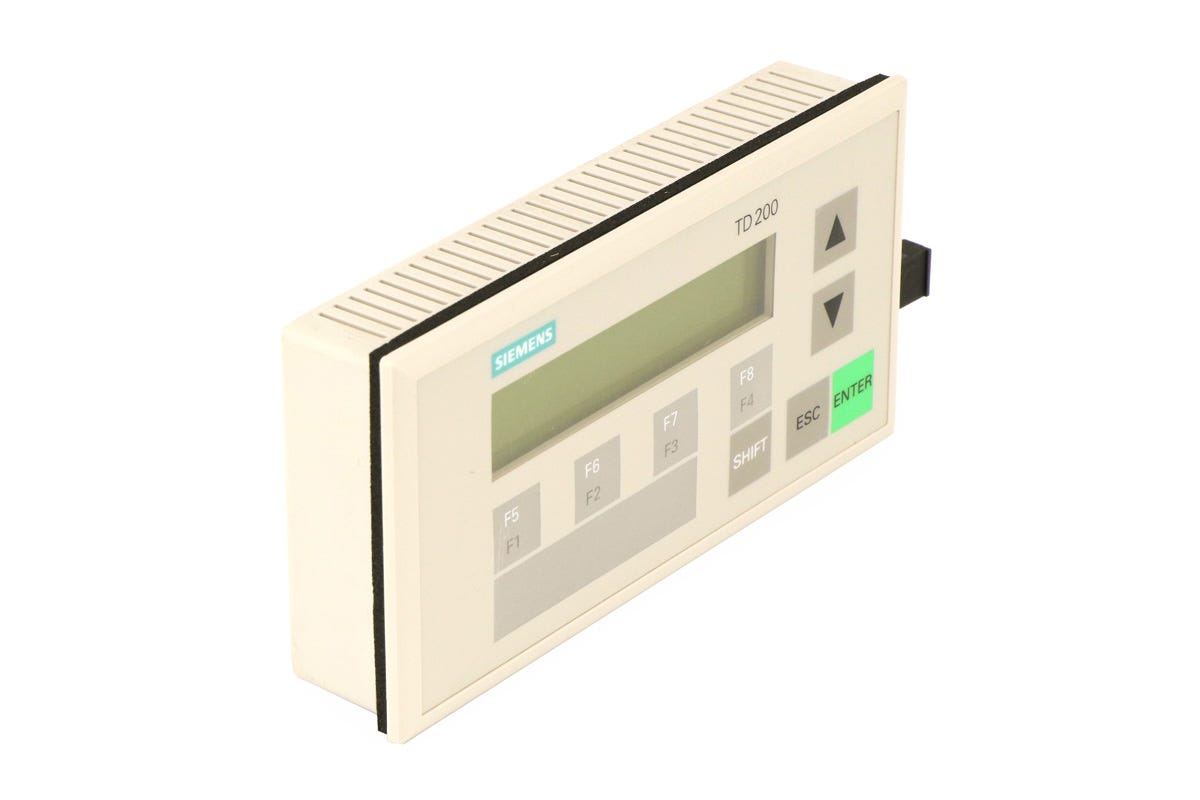

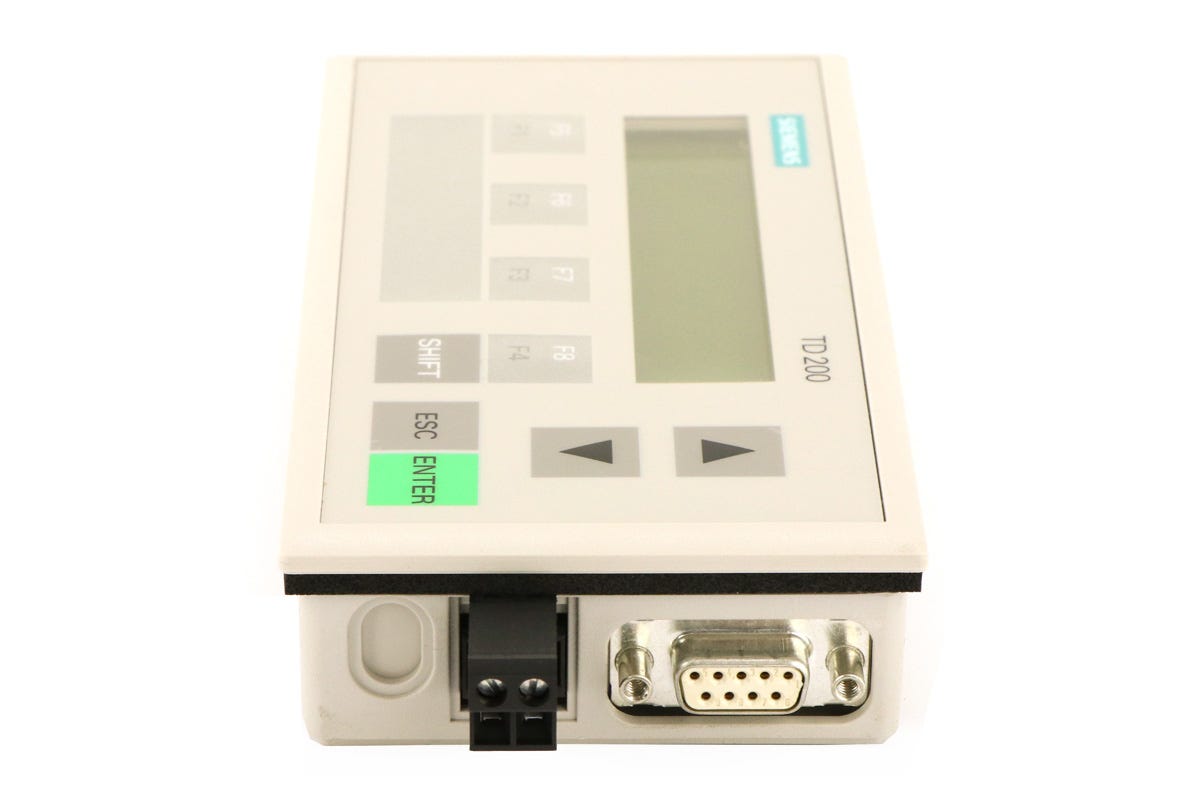

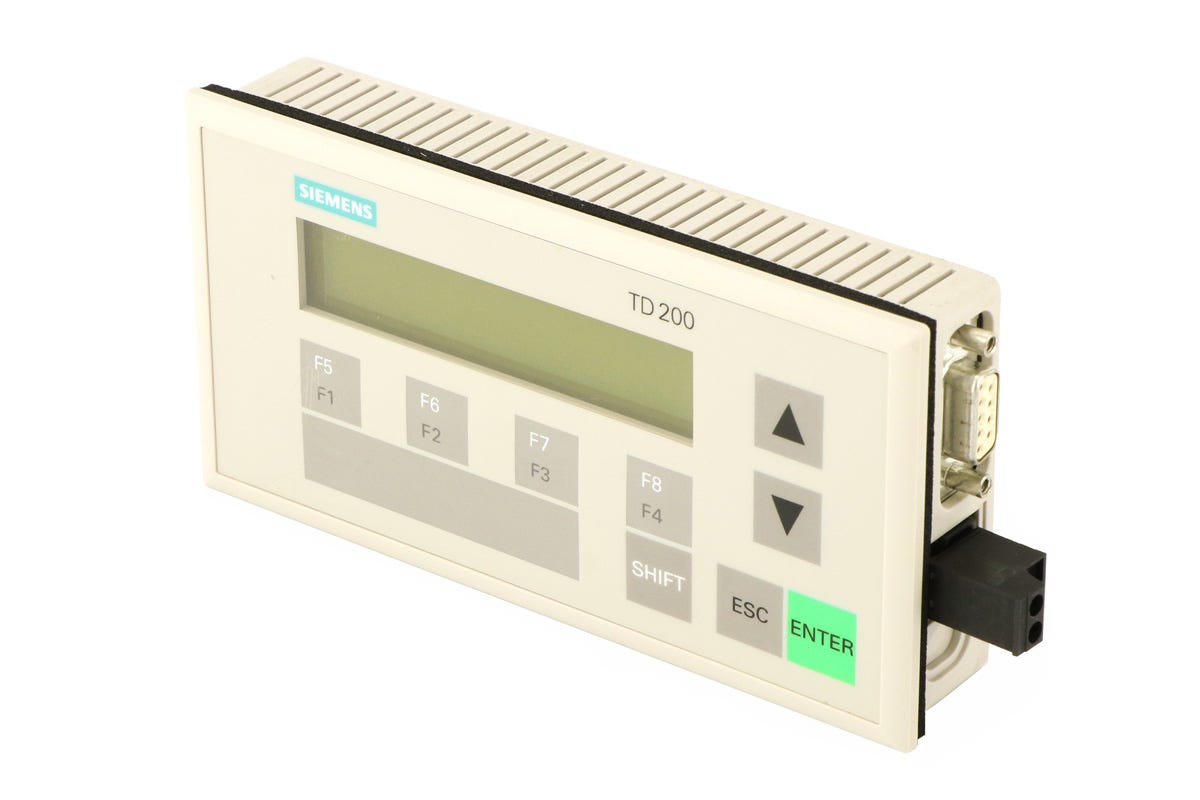

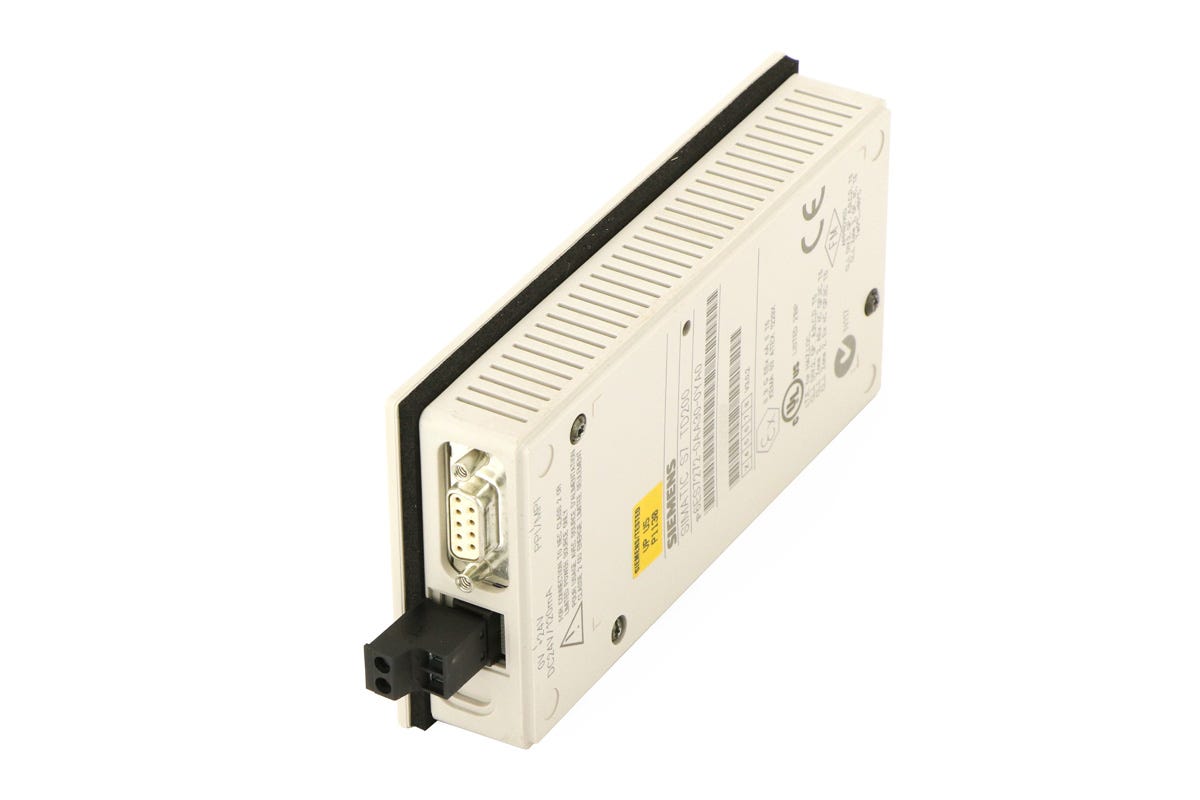

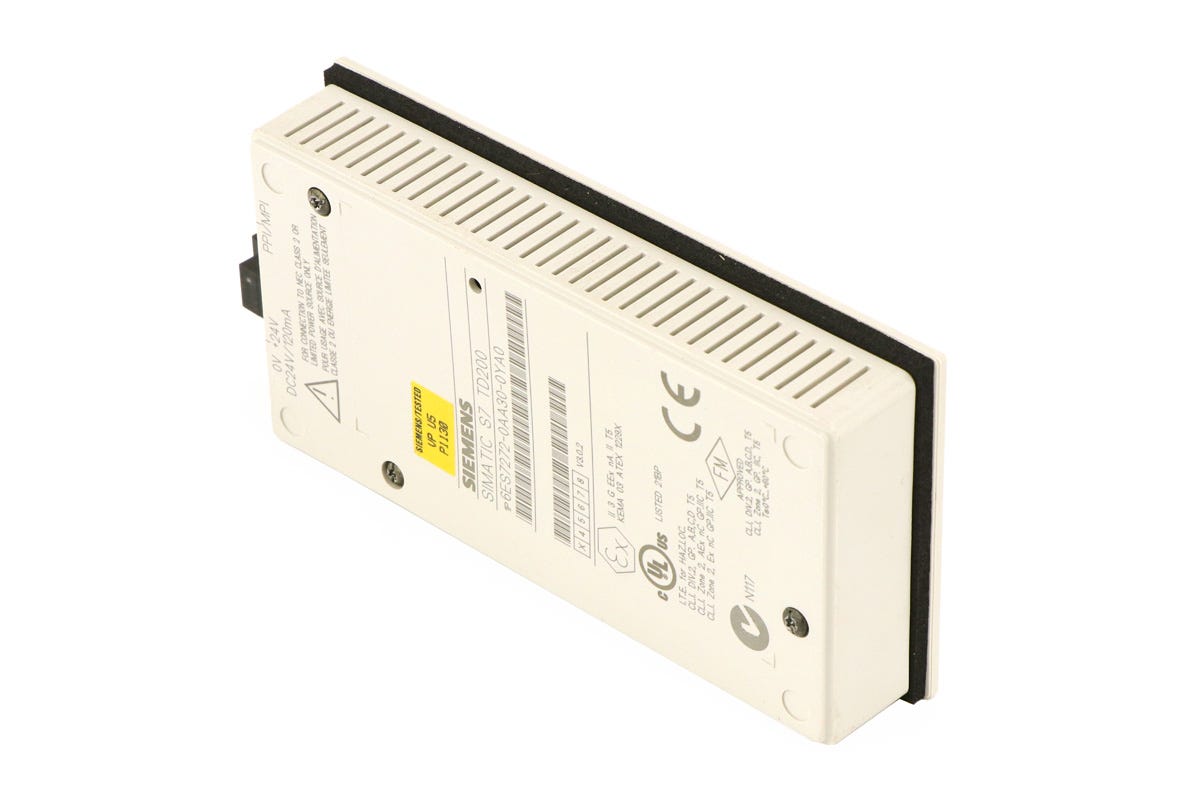

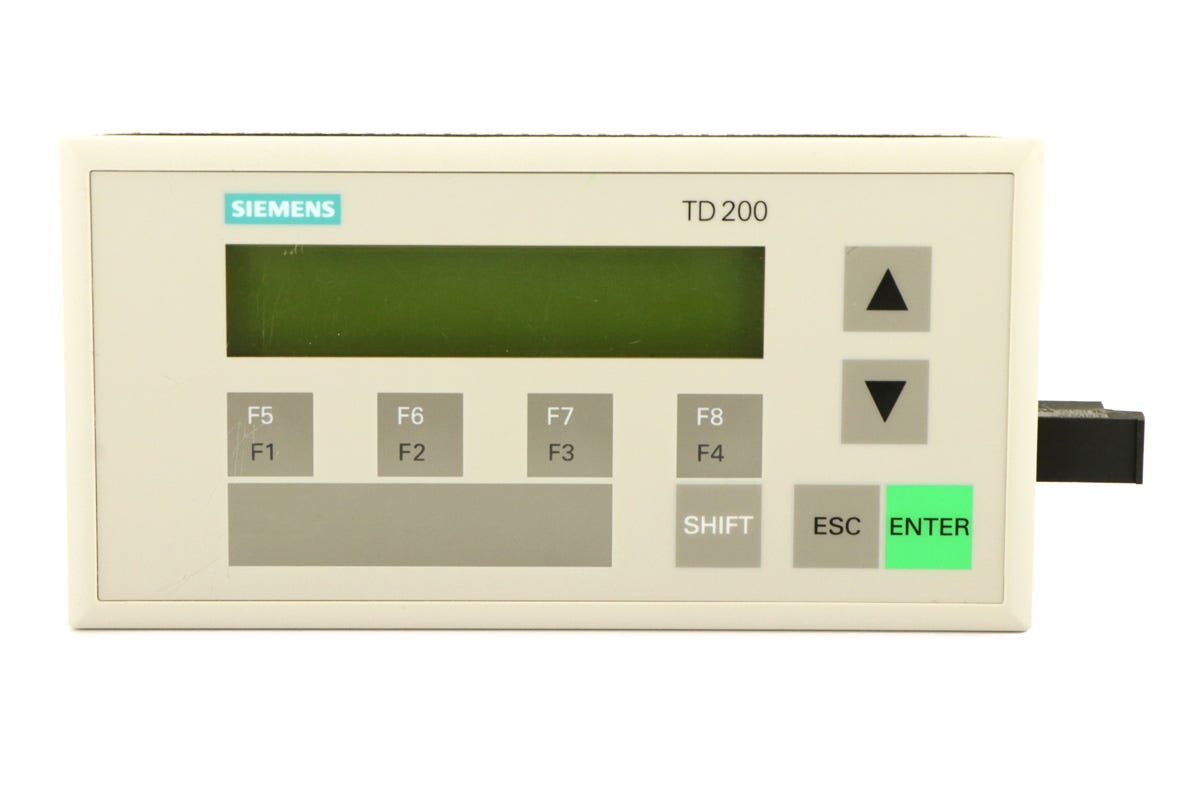

The Siemens 6ES7272-0AA30-0YA0 is a SIMATIC S7-200 TD200 Text Display, designed for operator interface applications in compact automation systems. This user-friendly display supports two lines of text with 20 characters per line, providing clear and concise data visualization.

Technical Specifications

Information About 6ES7272-0AA30-0YA0

The 6ES7272-0AA30-0YA0 is an integral part of the Siemens S7-200 series, designed for real-time interaction and diagnostics in programmable logic controller (PLC) applications. It operates on a 24V DC power supply and supports transfer speeds up to 187.5 Kbps over RS-485 using the PPI protocol. Configuration is achieved using the STEP 7-Micro/WIN software, offering intuitive setup and deployment. Its compact design, along with included mounting accessories and a 2.5-meter communication cable, makes it ideal for panel-mounted applications in industrial environments.

Key Features:

• Backlit LCD Display: Monochrome screen with two lines of 20 characters, ensuring easy readability in various lighting conditions.

• RS-485 Communication: Supports PPI protocol with data transfer speeds up to 187.5 Kbps for efficient PLC integration.

• Power Supply: Operates on a 24 VDC input, consuming only 120 mA.

• Configuration via STEP 7-Micro/WIN: Allows for quick and simple programming and diagnostics.

• Temperature Range: Reliable performance in environments ranging from 0°C to 60°C.

• Compact and Mountable: Includes a 2.5-meter cable and mounting accessories for fast installation.

The 6ES7272-0AA30-0YA0 is ideal for compact control systems where space, functionality, and ease of use are priorities.
