Description

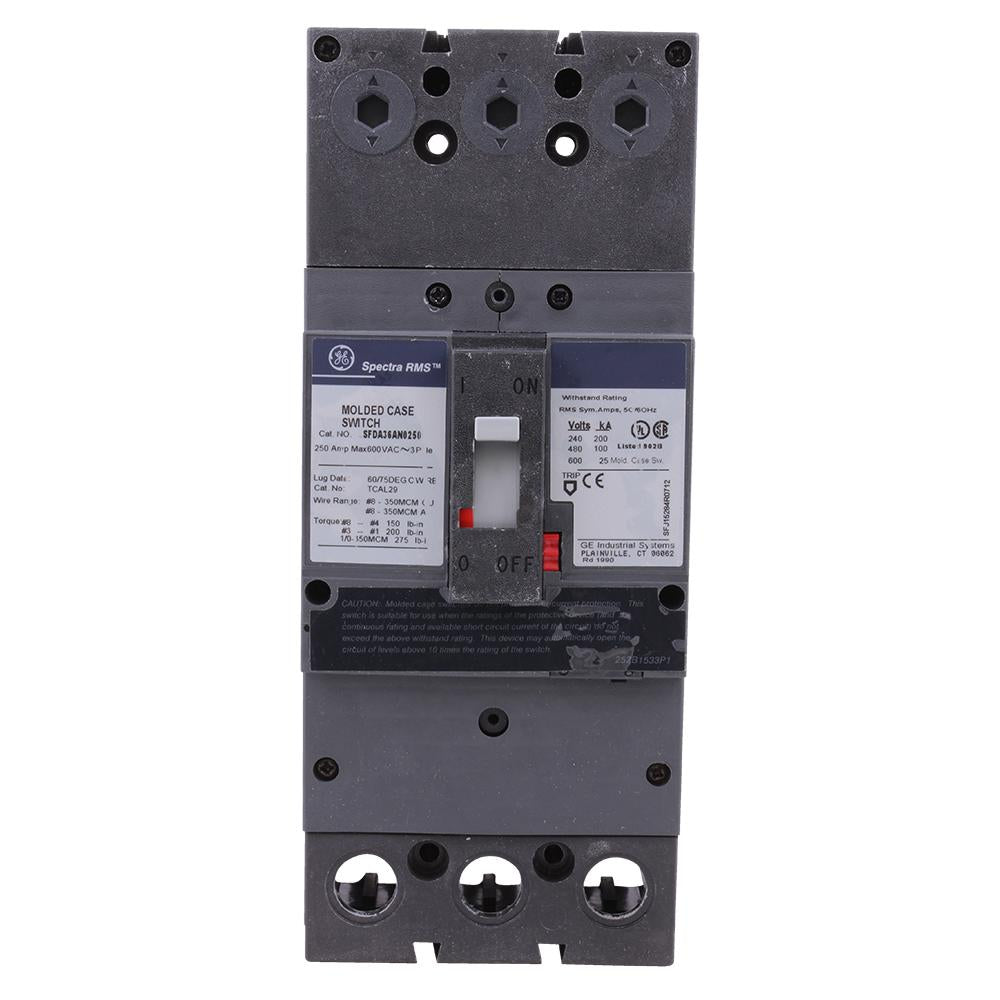

The General Electric SFDA36AN0250 is a 3-pole molded case circuit breaker designed for safe and reliable protection of electrical systems. With a 250-amp rating, it provides dependable overload and short-circuit protection for commercial and industrial power distribution applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
General Electric |
| Category |
Electrical Distribution |
| Part Number |
SFDA36AN0250 |
| Subcategory |
Circuit Breaker |
| Series |
Spectra Series |
| Breaker Type |
Molded Case Circuit Breaker (MCCB) |
| Poles |
3-pole |
| Voltage Rating |
600 V AC maximum |
| Current Rating |
250 A |
| Frequency |
50/60 Hz |
| Trip Type |
Thermal-magnetic trip |
| Interrupting Rating |
Series-dependent, high fault withstand capability |
| Mounting Style |
Panelboard or switchboard installation |
| Frame Size |
SFDA frame |
| Protection Features |
Overload and short-circuit protection |
| Standards |
UL Listed, ANSI/IEEE compliant |
| Application Use |
Industrial, commercial, and utility distribution |
| Operating Temperature |
-20 °C to +40 °C |
| Weight |
Approx. 6.5 kg |
Information About SFDA36AN0250
The SFDA36AN0250 is part of GE’s Spectra Series circuit breaker family, engineered for durability and consistent performance in electrical distribution systems. This molded case breaker offers a 600 VAC rating and is designed to protect three-phase circuits from faults and overloads. It is UL-listed, ensuring compliance with industry safety standards. With its compact molded housing and robust design, the SFDA36AN0250 is well-suited for use in switchboards, panelboards, and motor control centers.
Key Features:
- Spectra Series Breaker: Belongs to GE’s family of molded case breakers for reliable distribution.
- 3-Pole Protection: Provides balanced coverage for three-phase electrical systems.
- 250A Rating: Suitable for medium-capacity power distribution.
- High Voltage Capability: Rated for systems up to 600 VAC.
- Molded Case Design: Ensures rugged durability and compact form factor.
- Overload and Short-Circuit Protection: Safeguards equipment and circuits from electrical faults.
- UL Listed: Complies with safety and performance standards.
- Wide Application Use: Ideal for commercial, industrial, and utility distribution.
The SFDA36AN0250 delivers the reliability and protection required for medium-duty power distribution in demanding environments.
