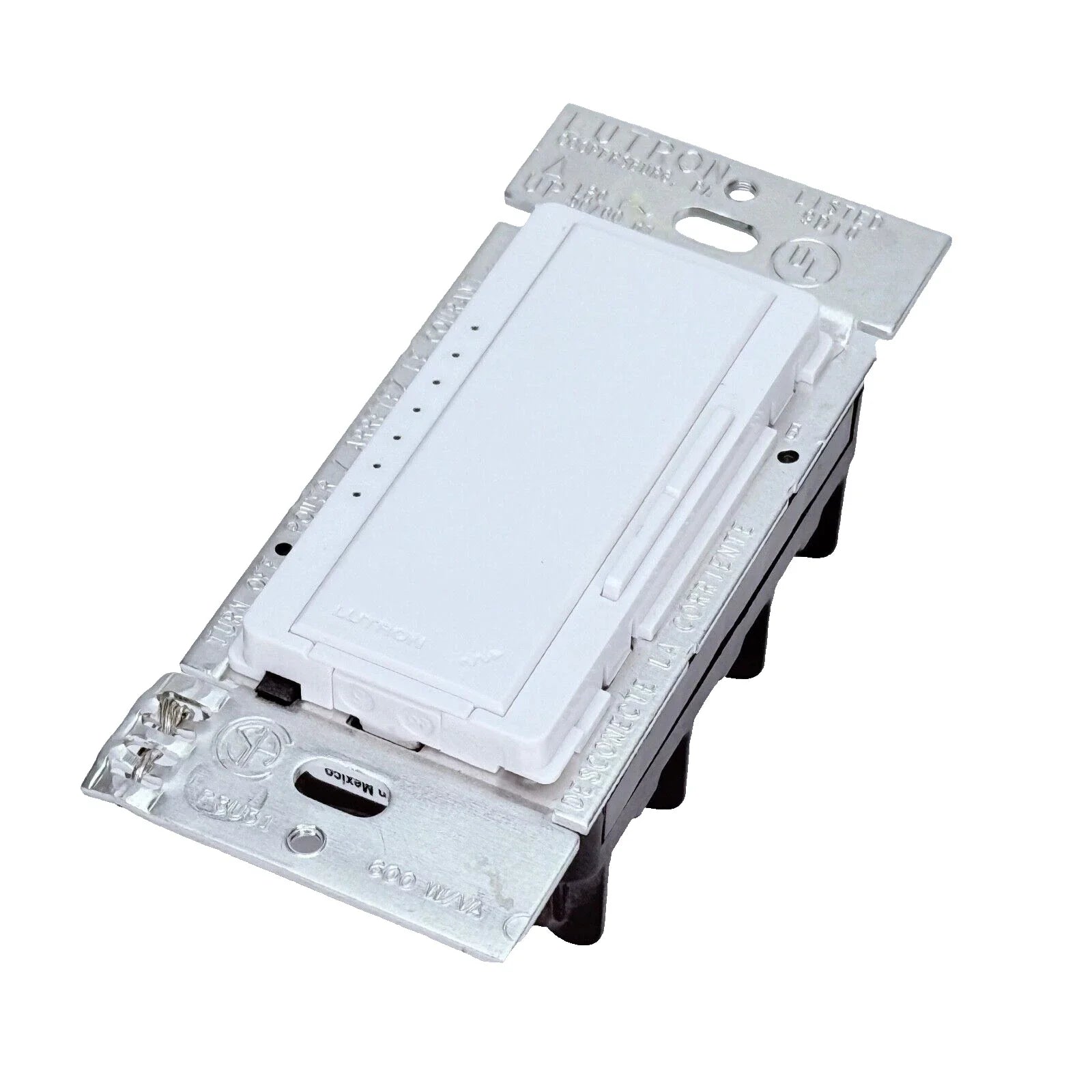

Description
The Lutron RRD-6D-WH is a wall-mounted smart dimmer for RadioRA2 lighting systems. It provides precise dimming of incandescent and magnetic low-voltage loads up to 600 W. Designed with soft-fade technology, it allows smooth transitions and multi-location control.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Lutron |
| Category |
|
| Part Number |
RRD-6D-WH |
| Subcategory |
Smart Dimmers |
| Series |
RadioRA2 Maestro (RRD-6D) |
| Voltage Rating |
120 VAC |
| Power Rating |
600 W/VA (incandescent/MLV) |
| Load Type |
Incandescent, Halogen, Magnetic Low Voltage |
| Operation Mode |
On/Off, dimming
|
| Communication |
Clear Connect RF |
| Installation Type |
Wall-mount, single-pole/multi-location |
| Finish |
Gloss finish |
| Color |
White |
| Frequency |
50/60 Hz |
| Temperature Range |
0–40 °C |
| Humidity |
0–90%, non-condensing |
| Dimensions |
4-11/16 in H × 2-15/16 in W × 5/16 in D |
| Certification |
UL Listed |
| Weight |
0.25 lb (0.11 kg) |
Information About RRD-6D-WH
The RRD-6D-WH belongs to Lutron’s RadioRA2 Maestro local control dimmer series for residential and commercial applications. Finished in gloss white, it supports single-pole and multi-location installations and communicates wirelessly with RadioRA2 ecosystems. Operating at 120 VAC, it manages magnetic low-voltage or incandescent/halogen lighting loads using Clear Connect RF technology. This dimmer is ideal for customizable scenes, gradual fade effects, and smart integration.
Key Features:
- Wide Load Support: Handles incandescent, halogen, and MLV loads up to 600 W/VA.
- RF Connectivity: Uses Lutron Clear Connect for RadioRA2 smart communication.
- Soft-Fade Control: Single tap activates smooth fade on/off transitions.
- Scene Recall: Double-tap instantly brings lights to full brightness.
- Adjustable Dimming: Rocker switch allows fine-tuned light level selection.
- Multi-Location Use: Compatible with remote dimmers for expanded control.
- Service Safe Switch: Front-access FASS™ enables safe lamp replacement.
- UL Listed Device: Certified to UL standards for safety and performance.
The RRD-6D-WH delivers the reliability and precision required for professional RadioRA2 lighting control systems.
