Description

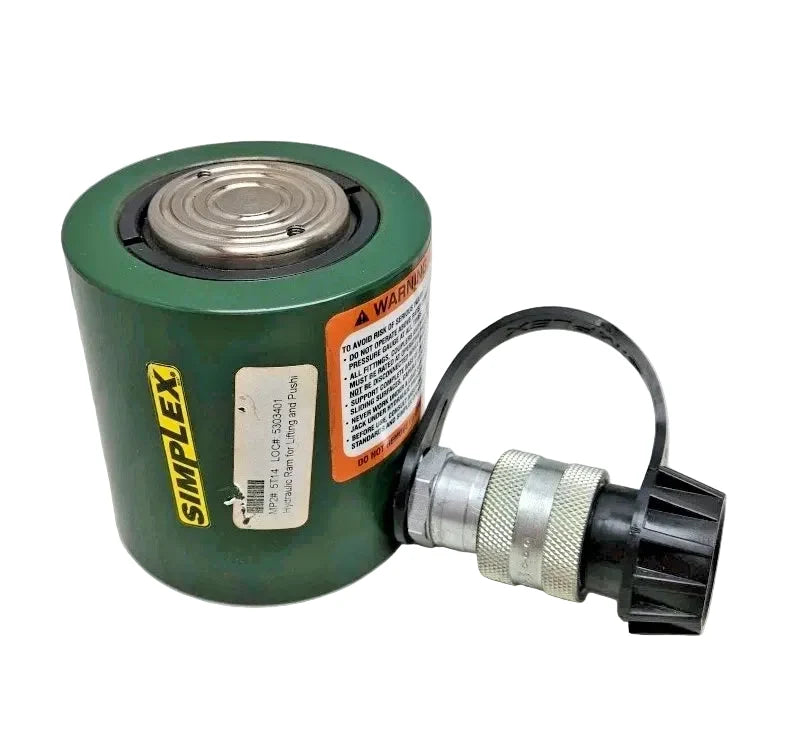

The Simplex RLS201 is a low-profile, single-acting hydraulic cylinder rated for 20-ton capacity at 10,000 psi. Designed with a 1-3/4 inch stroke and compact retracted height, it provides high-force output in confined spaces. Its spring return mechanism ensures controlled piston retraction for efficient lifting, positioning, and maintenance applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Simplex |
| Category |
Hydraulics |
| Part Number |
RLS201 |
| Subcategory |
Hydraulic Cylinders |
| Capacity |
20 Ton |
| Cylinder Type |
Single Acting, Spring Return |
| Maximum Operating Pressure |
10,000 psi |
| Bore Diameter |
2.38 in |
| Stroke Length |
1-3/4 in |
| Retracted Height |
3.88 in |
| Rod Diameter |
2 in |
| Design |
Low Profile |
| Application |
Lifting & Positioning |
| Weight |
15 lb |
Information About RLS201
The RLS201 is a Simplex low-profile hydraulic cylinder engineered for high-force applications where vertical clearance is limited. It features a 2.38-inch bore and a 2-inch diameter rod to deliver consistent force distribution under heavy loads. The single-acting design applies hydraulic pressure for extension while an internal spring mechanism automatically retracts the piston after pressure release. Operating at a maximum pressure of 10,000 psi, the unit is suitable for industrial lifting, alignment, and equipment maintenance tasks.
Key Features:
- 20-Ton Capacity: Delivers substantial lifting force for industrial load-handling operations.
- Low-Profile Design: Compact 3.88 in retracted height for use in restricted spaces.
- Single-Acting Operation: Hydraulic advance with spring-assisted return for simplified control.
- 10,000 PSI Maximum Pressure: Supports high-force output in demanding applications.
- 2.38 in Bore Diameter: Optimized for efficient hydraulic force generation.
- 1-3/4 in Stroke Length: Provides controlled lifting range for precision positioning.
- 2 in Diameter Rod: Enhances strength and load stability during operation.
- Spring Return Mechanism: Automatically retracts the piston when pressure is released.
The RLS201 delivers the reliability and precision required for heavy-duty lifting, positioning, and maintenance operations in confined industrial environments.
