Description

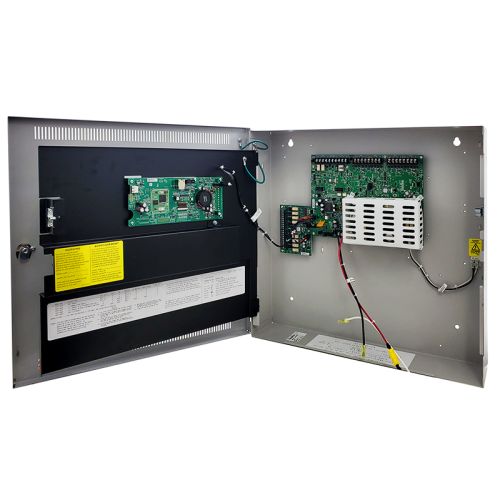

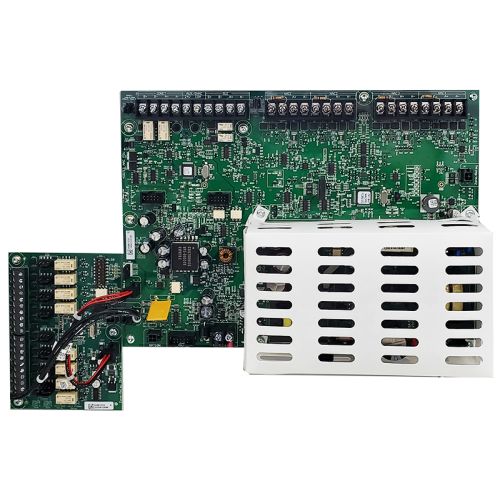

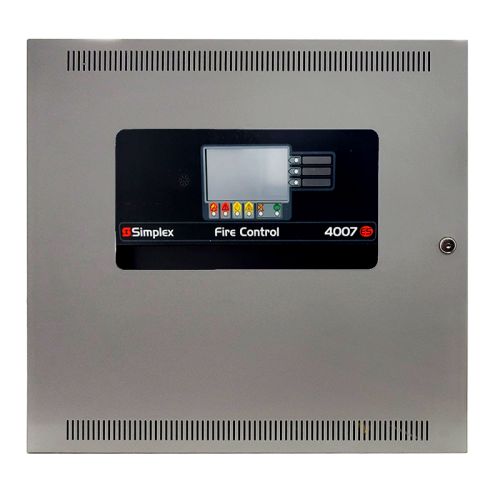

The Simplex 4007-9202 Fire Alarm Control Panel is a 4007ES Intelligent FACP designed for small to mid-sized applications requiring advanced addressable fire detection and notification. It supports IDNet+ communications for up to 100 addressable points and features an IDNAC SLC with a 3 A, Class B circuit for up to 127 addressable notification appliances. Equipped with a 4 A power supply and battery charger, the panel combines flexibility, reliability, and ease of use with a platinum cabinet design.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Simplex |
| Category |
Fire Alarm Systems |
| Part Number |
4007-9202 |
| Subcategory |
Fire Alarm Control Panels |
| Manufacturer |
Johnson Controls |
| Series |
Simplex 4007ES Series |
| Type |
Fire Alarm Control Panel (Intelligent FACP) |
| Style |
Addressable |
| Color |
Platinum |
| Production Status |
Active |
| Power Supply |
4 A output with battery charger |
| Notification Circuit |
3 A Class B IDNAC SLC, supports 127 devices |
| Addressable Capacity |
100 addressable points (expandable with modules) |
| Expansion Option |
4007-9803 loop module, adds 75 points per module |
| Included Module |
One 4007-9801 Eight Point Zone/Relay Module |
| Compatibility |
IDNet devices, TrueAlarm sensors, ES Net, 4120 network |
| Cabinet |
Platinum cabinet enclosure |
| Unit of Measurement |
Each (EA) |
| Weight |
16 lbs |
Information About 4007-9202

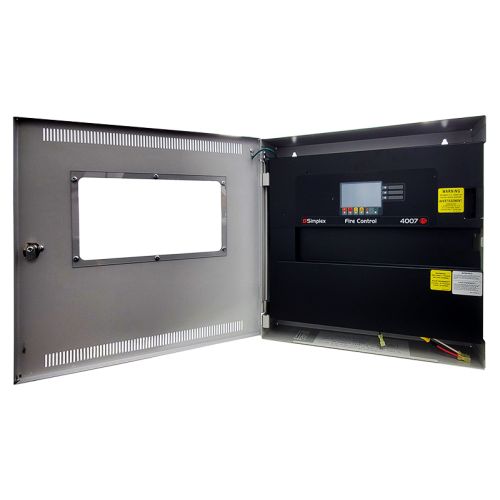

The 4007-9202 is part of the Simplex 4007ES Series Fire Control Units, manufactured by Johnson Controls. This model includes a 4007-9801 Eight Point Zone/Relay Module and offers expansion options with the 4007-9803 loop module to support additional addressable points. The intuitive color touchscreen provides simplified access for system response, configuration, and password-protected operations. Designed for stand-alone or networked operation, the 4007-9202 is compatible with IDNet devices, TrueAlarm sensors (QuickConnect and QuickConnect2), and Simplex ES Net/4120 network products.
Key Features:
- IDNet+ Addressable Loop: Supports up to 100 addressable detection points for precise system monitoring.
- IDNAC SLC: 3 A, Class B circuit for up to 127 addressable notification appliances.
- Integrated Power Supply: 4 A output with charger for reliable battery backup.
- Expansion Capability: Supports optional 4007-9803 loop modules, adding 75 addressable points per module.
- Zone/Relay Module Included: Comes with one 4007-9801 module for flexible system configuration.
- Touchscreen Interface: Provides intuitive access for configuration, review, and operation.
- Network Ready: Fully compatible with Simplex ES Net and legacy 4120 fire alarm networks.
- Durable Cabinet: Platinum finish cabinet suitable for commercial and institutional applications.
The 4007-9202 delivers the reliability and precision required for professional fire alarm detection and notification systems.
