Description

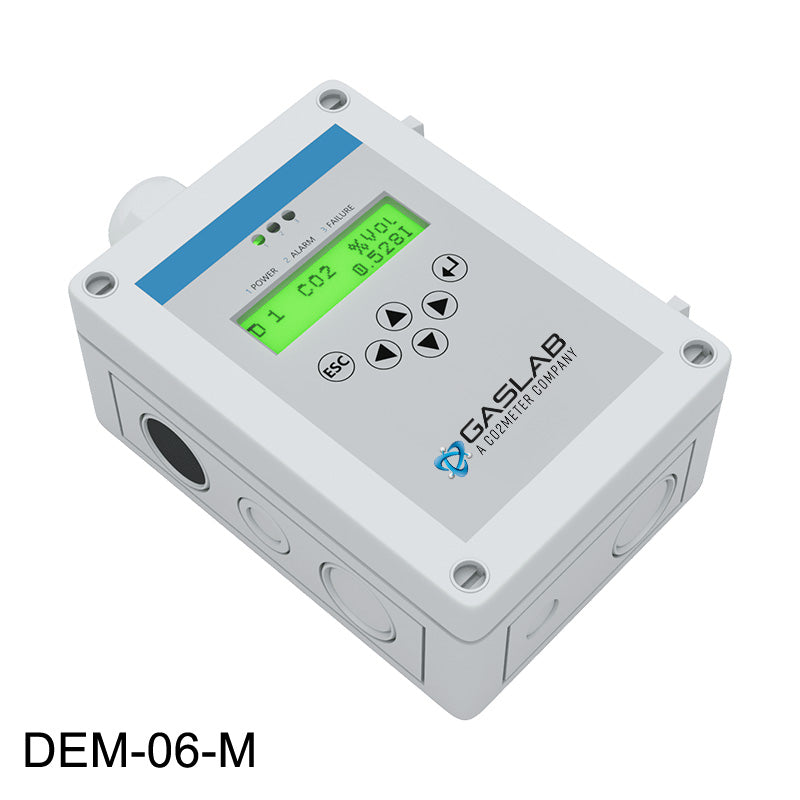

The DEM-06-M: Remote Door Entrance Module for Gaslab Safety Alarm is a cutting-edge solution designed to keep your facility safe and informed. Using advanced micro-technology, it provides real-time visualization of gas alarms at every access point, ensuring that personnel are immediately aware of any potential danger before entering a hazardous room.
Whether you're enhancing safety protocols or upgrading to smarter building controls, the DEM-06 Series brings reliable, visible, and instant gas alarm information to where it matters most, the entrance.
Features
- Real-Time Gas Alarm Visualization before Hazardous Entry
- Seamless Integration with Gaslab Industrial Fixed Safety Systems
- Supports Up to 128 Relay Signals
- LED Display for Quick Alarm Indicators
- User-Friendly Interface with 5 Language Options
- Flexible Mounting Options between 5-6 ft.
- IP6S version
- Compliance with Industry Standards
- Optional: Integrated warning buzzer with reset function - internal/external
- Optional: 2x open collector output for warning light or horn with reset function - internal/external
Specifications
- Measurement Range: Dependent upon sensor selected
- Gas Type: Dependent upon sensor selected
- Housing Type C/E: Polycarbonate
- Installation: Wall Mounted
- Display: 2 lines 16 characters each
- Status LED (3): Normal operation-fault-alarm
- Operation: 6 push-buttons - menu-driven
- Transceiver: RS-485/19200 Baud
- Ingress Protection: IP65
- Temperature Range: 4°F to 122°F (-10°C to 50 °C)
- Humidity Range: 15–90 % RH not-condensing
- Storage Temperature: -4°F to 149°F (-20°C to 65°C)
- Storage Temperature Range: -4°F to 149°F (-20°C to 65°C)
Electrical
- Power Supply: 18-28 V DC, reverse polarity protected
- Power Consumption w/o options: 40 mA. max. (1.0 VA)
- Flammability Classification: UL 94 V2
- Cable Entry: Standard 1 x M20
- Connection: Screw-type terminals, 0.25-2.5 mm2
- Dimensions Type A: 3.7 x 5.12 x 2.24 in (94 x 130 x 57 mm)
- Dimensions Type B: 5.12 x 5.12 x 2.95 in (130 x 130 x 75 mm)
- Weight: 1.32 lbs. (0.6 kg)
Warranty
- 1 year - See CO2Meter Terms and Conditions
