Description
The MSC2-CO2-NH3 System: CO2 & NH3 Fixed Gas Detection System for Refrigeration is an industrial-grade multi-gas safety solution designed for continuous monitoring of carbon dioxide (CO2) and ammonia (NH3) in refrigeration environments.
This system delivers real-time gas monitoring, dual-gas detection, and automated alarm response, helping facilities prevent exposure incidents, equipment damage, and costly compliance violations.
Built on the MSC2 multi-gas safety platform, this solution uses remote sensors to detect leaks at the source, triggering alarms, activating ventilation systems, and integrating with facility controls for rapid mitigation.
Features
- Dual Gas Monitoring (CO2 + NH3)
- Remote Sensor Detection
- Built for Refrigeration Systems
- Audio/Visual Alarms + Relays
- Multi-Gas Expandable Platform
- BMS & PLC Integration Ready
- Custom Configurations
- Flexible Power Options
- IP65 Rugged Enclosure

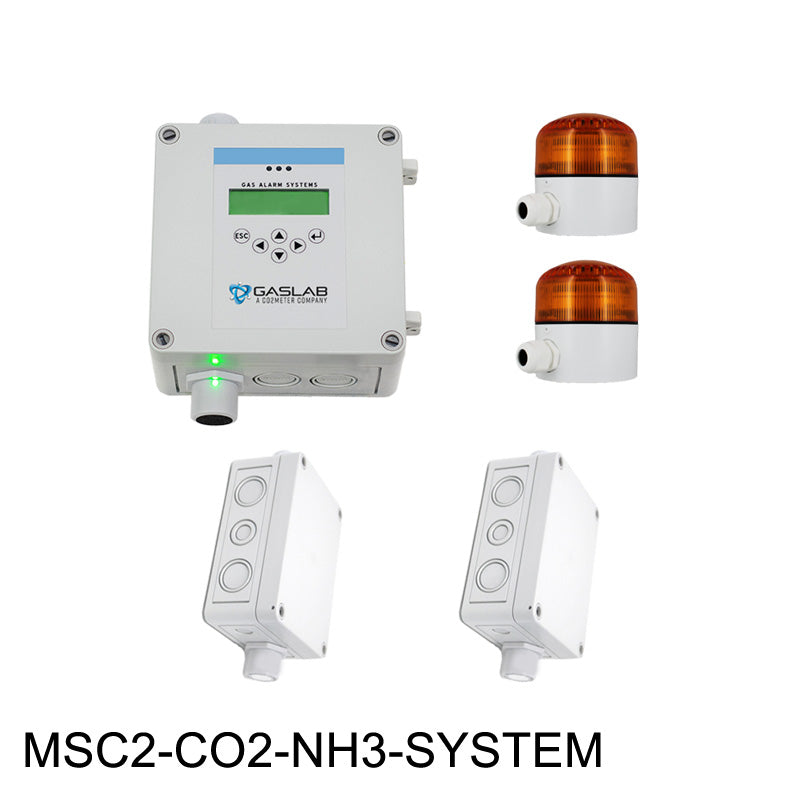

📦 What’s Included?
- MSC2 Fixed Gas Detection Controller (Main Display Unit)
- (2) Remote Sensors (CO2) + (NH3)
- (2) Audible & Visual Horn/Strobe Alarms
- Pre-Configured Alarm Relays
- Power Supply Compatibility (100–240 VAC / 24 VDC)
- Wall-Mount Hardware & Installation Kit
- User Manual & Quick Start Guide
Specifications
- CO2 Measurement Range: 0–5,000 ppm (custom ranges available)
- NH3 Measurement Range: 0–100 ppm (expandable up to 5,000 ppm)
- Gas Types: Carbon Dioxide (CO2) + Ammonia (NH3)
- Housing Type C/E: Polycarbonate
- Installation: Wall Mounted
- Knockouts for Cable Entry: Standard 6x M20/25
- Ingress Protection: IP65
- Temperature Range: -13°F to 140°F (-25°C to 60°C)
- Humidity Range: 15-95% RH non-condensing
- Power Supply: 100-240 VAC or 24VDC
- Power Consumption: 24 VDC | Max. 60 mA (1.5 VA), w/ sensor, w/o WAO
- Alarm Relay (3): 5 A Dry Contact Configurable
- Transistor Output (2): 24 VDC/0.1 A
- Analog Input (2/3): 4-20mA compatible
- Analog Output Signal (1): Fault & range monitoring included
- Controller Dimensions: 5.12 x 5.12 x 2.95 in. (130 x 130 x 75 mm)
- Controller Weight: 1.32 lbs. (0.6 kg)
Warranty
- 1 year - See CO2Meter Terms and Conditions.
