Description

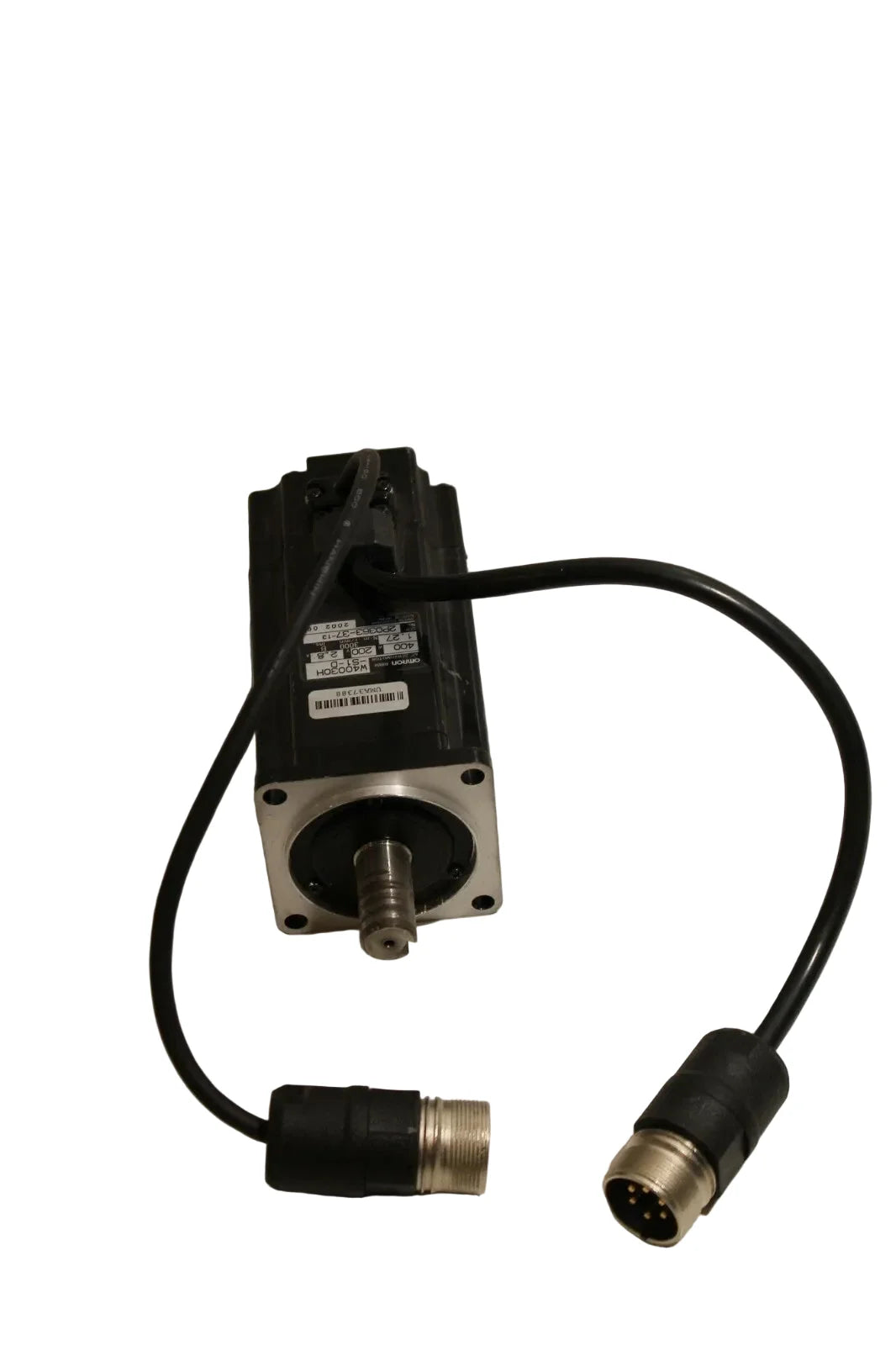

The Omron R88M-W40030H-S1 is a compact AC servo motor designed for precise motion control in industrial automation systems. Rated at 400 W and operating at 200 VAC, it delivers stable torque and high-speed performance for positioning and speed control tasks. This motor is engineered for integration with Omron servo drives in controlled motion applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Servo Motors |
| Part Number |
R88M-W40030H-S1 |
| Subcategory |
AC Servo Motors |
| Series |
OMNUC W |
| Product Type |
AC Servo Motor |
| Packaging |
Bulk |
| Part Status |
Obsolete |
| Rated Power |
400 W |
| Rated Voltage |
200 VAC |
| Rated Speed |
3000 RPM |
| Maximum Speed |
5000 RPM |
| Rated Torque |
1270 mNm |
| Peak Torque |
3820 mNm |
| Encoder Type |
Incremental |
| Shaft Type |
Straight |
| Shaft Key |
Included |
| Shaft Tap |
Not Included |
| Termination Style |
Wire Leads with Connector |
| Operating Temperature Range |
0°C to 40°C |
| Approval Agency |
UL, cUL |
| Weight |
3.75 lbs (1.70 kg) |
Information About R88M-W40030H-S1
The R88M-W40030H-S1 is part of Omron’s OMNUC W series within the R88M motor lineup, developed for high-performance servo motion systems. It features an incremental encoder for accurate speed and position feedback during operation. The motor is constructed with a straight shaft including a key for secure mechanical coupling and supports flange mounting for rigid installation. Designed for use in industrial environments, it operates reliably within standard temperature ranges and supports multi-directional mounting orientations.
Key Features:
- 400 W AC Servo Motor: Designed for accurate speed and position control applications.
- Incremental Encoder Feedback: Provides reliable motion feedback for servo control systems.
- High-Speed Operation: Rated at 3000 RPM with a maximum speed of 5000 RPM.
- Strong Torque Performance: Delivers 1270 mNm rated torque and up to 3820 mNm peak torque.
- Straight Shaft with Key: Ensures secure mechanical connection to driven components.
- OMNUC W Series Design: Engineered for compatibility with Omron servo drive systems.
- Industrial Motor Construction: Built for consistent performance in automation environments.
The R88M-W40030H-S1 delivers the reliability and precision required for servo-driven motion control in industrial automation systems.
