Description

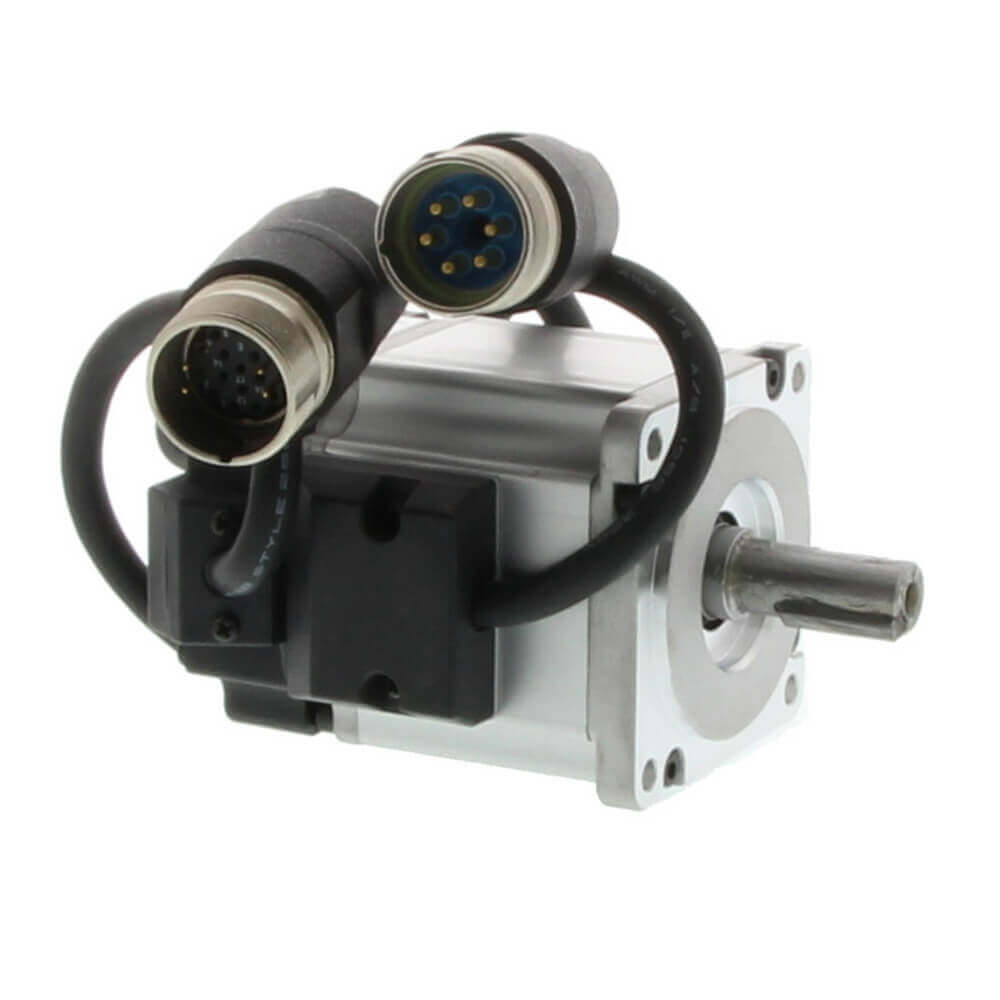

The Omron R88M-G40030H-S2-D is a SMARTSTEP 2 AC servo motor designed for precise speed and torque control in industrial motion automation systems. The R88M-G40030H-S2-D provides 0.4 kW rated output at 3000 RPM and supports analog, pulse train, and MECHATROLINK II servo control methods. It is built for compact machine applications requiring reliable closed-loop servo performance.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Servo Products |
| Part Number |
R88M-G40030H-S2-D |
| Subcategory |
Servo Motor |
| Motor Series |
SMARTSTEP 2 G-Series Flat Type |
| Drive Supply Voltage |
230 V Single Phase |
| Rated Output Power |
0.4 kW (400W) |
| Rated Speed |
3000 r/min |
| Rated Torque |
1.3 Nm |
| Peak Torque |
3.67 Nm |
| Servo Control Methods |
Analog, Pulse Train, MECHATROLINK II |
| Encoder Type |
Incremental |
| Encoder Resolution |
13 Bit |
| Flange Size |
60 mm Square |
| Shaft Diameter |
14 mm |
| Shaft Type |
Keyed Shaft |
| Connector Type |
Circular Connector |
| Product Weight (Unpacked) |
1200 g |
| Weight |
2.90 lbs |
Information About R88M-G40030H-S2-D
The R88M-G40030H-S2-D is part of Omron’s SMARTSTEP 2 G-Series flat-type servo motor lineup, engineered for high-response industrial motion control. It operates from a 230V single-phase supply and delivers rated torque of 1.3 Nm with peak torque capability up to 3.67 Nm for dynamic load handling. The motor uses an incremental encoder with 13-bit resolution to provide accurate position and speed feedback for servo drives and automation controllers. It features a 60 mm square flange mounting design with a keyed 14 mm shaft and circular connector interface for secure installation in compact servo-driven machinery.
Key Features:
-
SMARTSTEP 2 Servo Motor Design: Built for high-precision motion control in industrial automation systems.
-
0.4 kW Rated Output Power: Provides 400W performance for compact servo axis applications.
-
3000 RPM Rated Speed: Supports high-speed operation for responsive machine movement.
-
High Torque Capability: Delivers 1.3 Nm rated torque with 3.67 Nm peak torque capacity.
-
Incremental Encoder Feedback: Includes 13-bit resolution encoder for accurate control response.
-
Multiple Control Method Support: Compatible with analog, pulse train, and MECHATROLINK II control modes.
-
Compact 60 mm Flange Mounting: Flat-type motor housing designed for space-efficient machine integration.
-
Circular Connector Interface: Provides secure signal and power connection in industrial installations.
The R88M-G40030H-S2-D delivers the reliability and precision required for servo-driven automation and industrial motion control applications.
