Description

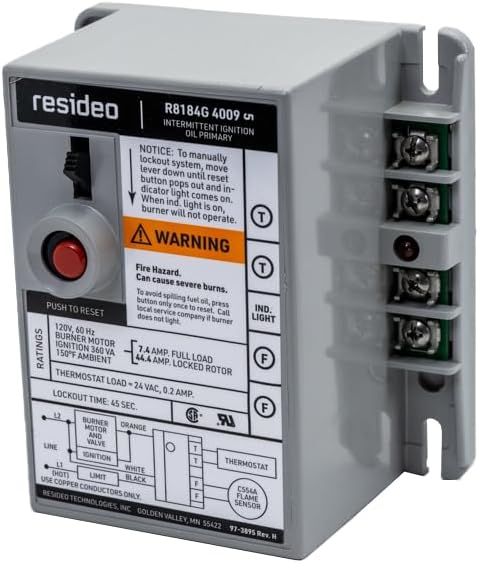

The Honeywell R8184G4009 is an oil burner primary safety control designed for intermittent ignition systems. It provides dependable shutdown protection, flame sensing, and low-voltage circuit control in residential and light commercial burner applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
HVAC |
| Part Number |
R8184G4009 |
| Subcategory |
Oil Primary Control |
| Safety Switch Timing |
45 sec |
| Amperage @ 120V |
7.4 A |
| Amperage @ 240V |
3.7 A |
| Thermostat Circuit |
0.2 A @ 24V |
| Temperature Range |
-40 to 130°F |
| Mounting |
4 in. × 4 in. junction box |
| Ignition Type |
Intermittent ignition |
| Control Type |
Relay protector |
| Frequency |
60 Hz |
| Voltage |
120 V |
| Weight |
0.54 kg |
Information About R8184G4009

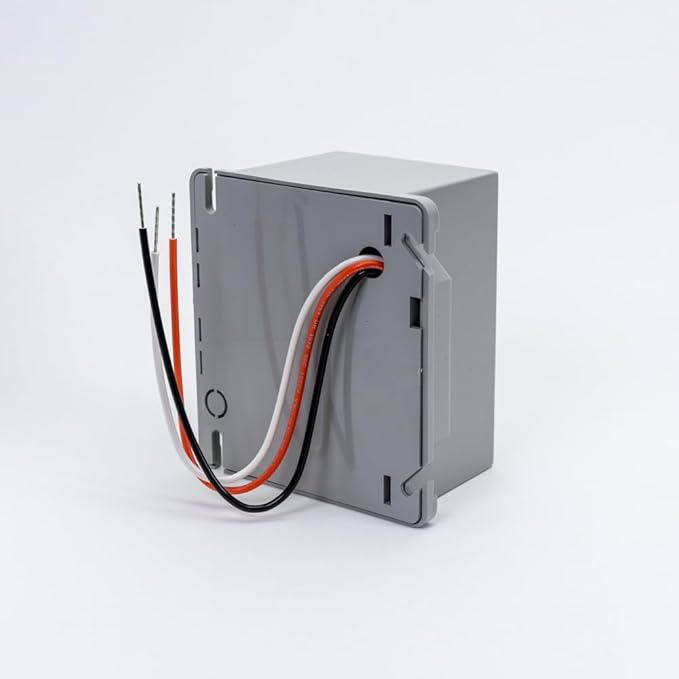

The R8184G4009 is a Honeywell oil burner primary control engineered for intermittent ignition systems requiring reliable flame monitoring and safety shutdown functionality. Designed with an integral transformer, it powers the low-voltage control circuit while coordinating ignition, burner operation, and safety timing. Its solid-state flame-sensing circuit ensures accurate detection and fast response, supported by a 45-second safety switch timing for proper system protection. Installed on a standard 4 x 4 inch junction box and equipped with an external manual reset, the R8184G4009 offers dependable field serviceability and secure wiring through an exposed screw-terminal strip.
Key Features:
- Oil Primary Safety Control: Provides essential burner control and protection for intermittent ignition systems.
- Integral Transformer: Supplies power to the low-voltage control circuit for stable system operation.
- Solid-State Flame Sensing: Ensures accurate and fast-response flame detection for improved burner safety.
- 45-Second Safety Switch Timing: Supports proper ignition verification before lockout activation.
- Manual Reset Safety Switch: External reset button enables safe, deliberate recovery after shutdown.
- Exposed Screw Terminals: Allows straightforward low-voltage wiring and service access.
- Wide Temperature Operating Range: Functions reliably from -40°F to 130°F in demanding environments.
- Versatile Mounting: Installs on standard 4×4 junction boxes; select models fit directly on burner housings.
The R8184G4009 delivers the reliability and precision required for safe and effective oil burner system control.
