Description

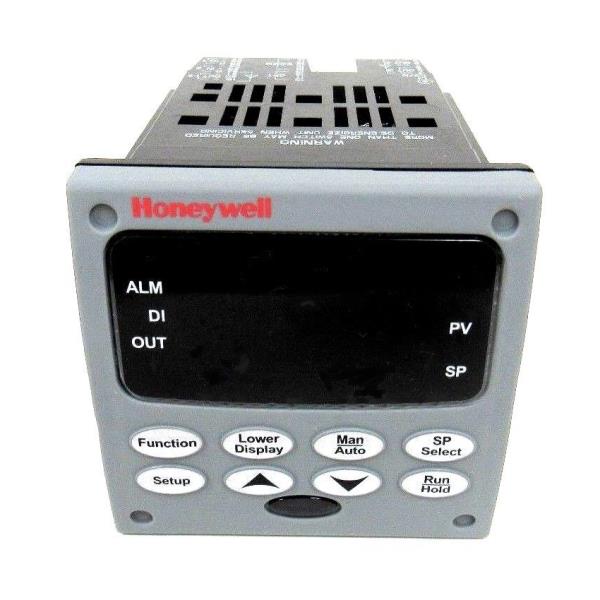

The Honeywell DC3200-CE-000R-200-00000-E0-0 is a ¼ DIN universal digital controller designed for precise temperature and process control applications. It features a universal input, a 4–20 mA analog output, and a relay output, making it suitable for various industrial environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
|
| Part Number |
DC3200-CE-000R-200-00000-E0-0
|
| Subcategory |
Temperature/Process Control |
| Series |
UDC2500 |
| Display |
Dual 4-digit LED displays |
| Power Supply |
90 to 250 VAC |
| Input Type |
TC/RTD/mV/0-5V/1-5V/0-20mA/4-20mA |
| Output #1 |
4–20 mA Current Output |
| Output #2 |
Relay Output (Alarm or Control) |
| Accuracy |
±0.2% of full scale |
| Scanning Rate |
166 ms |
| Infrared Interface |
Yes |
| Enclosure Rating |
NEMA 4X/IP66 Front Face |
| Mounting Size |
¼ DIN |
| Operating Temperature |
0°C to 60°C (32°F to 140°F) |
| Approvals |
CE |
| Manual Language |
English |
| Weight |
3.00 lbs |
Information About DC3200-CE-000R-200-00000-E0-0
The DC3200-CE-000R-200-00000-E0-0 is part of Honeywell's UDC3200 series, offering advanced control capabilities with a compact footprint. It supports a wide range of input types, including thermocouples, RTDs, millivolt, voltage, and current signals. The controller provides a 4–20 mA analog output for control purposes and a relay output for alarm or secondary control functions. With its infrared interface, users can configure the device using a PC or pocket PC, enhancing ease of setup and maintenance.
Key Features:
- Universal Input Support: Accepts thermocouple, RTD, millivolt, voltage, and current inputs for versatile application.
- Analog Output: Provides a 4–20 mA current output for precise control actions.
- Relay Output: Includes a relay output for alarm signaling or secondary control functions.
- Infrared Configuration Interface: Allows for non-intrusive setup and programming using a PC or pocket PC.
- Compact ¼ DIN Size: Standard panel size facilitates easy integration into existing systems.
- High Accuracy: Offers 0.2% accuracy, ensuring reliable process control.
- Fast Scanning Rate: Features a scanning rate of 166 ms for responsive control.
- International Certifications: Complies with CE standards for global applicability.
The DC3200-CE-000R-200-00000-E0-0 delivers the reliability and precision required for accurate temperature and process control in industrial environments.
