Description

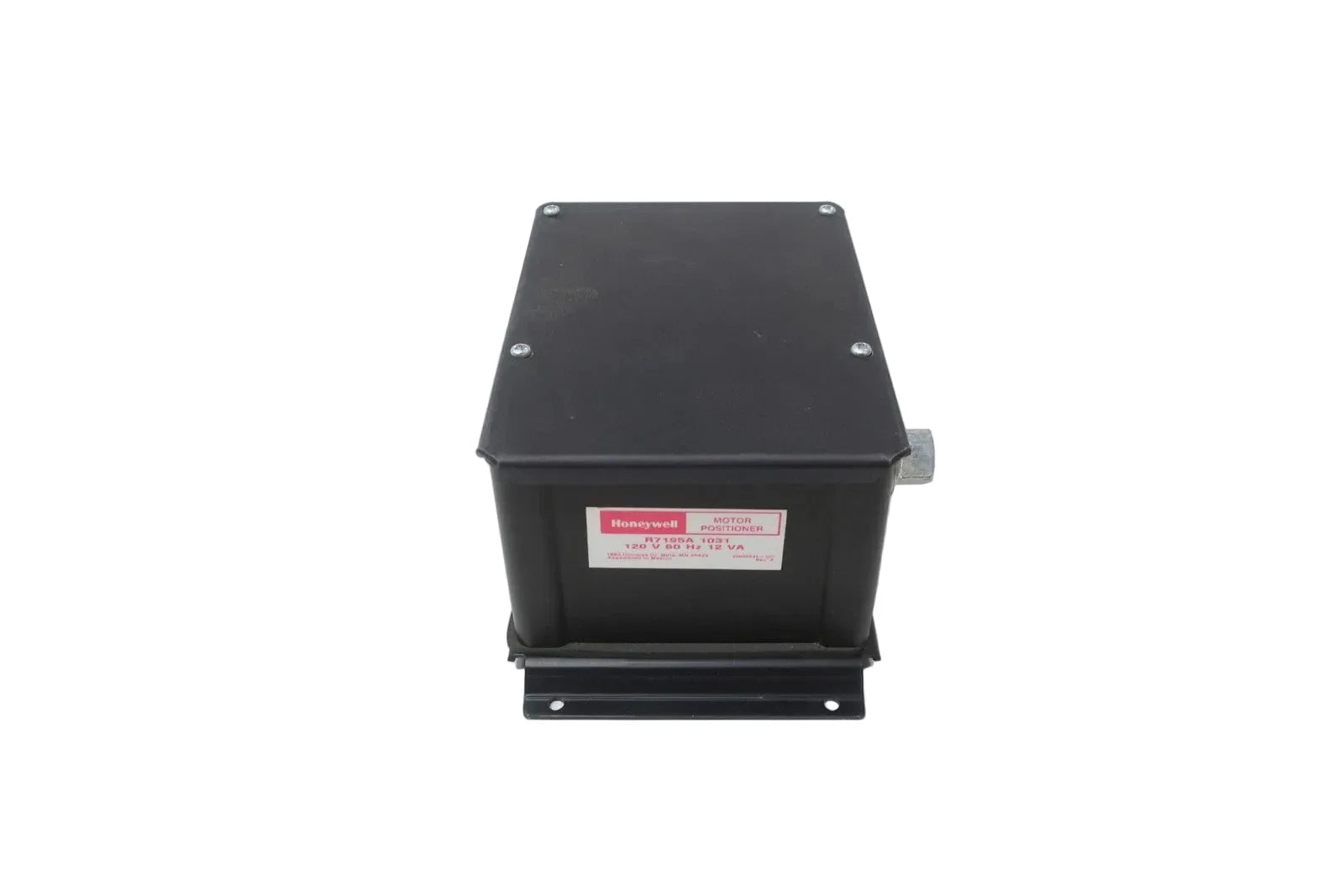

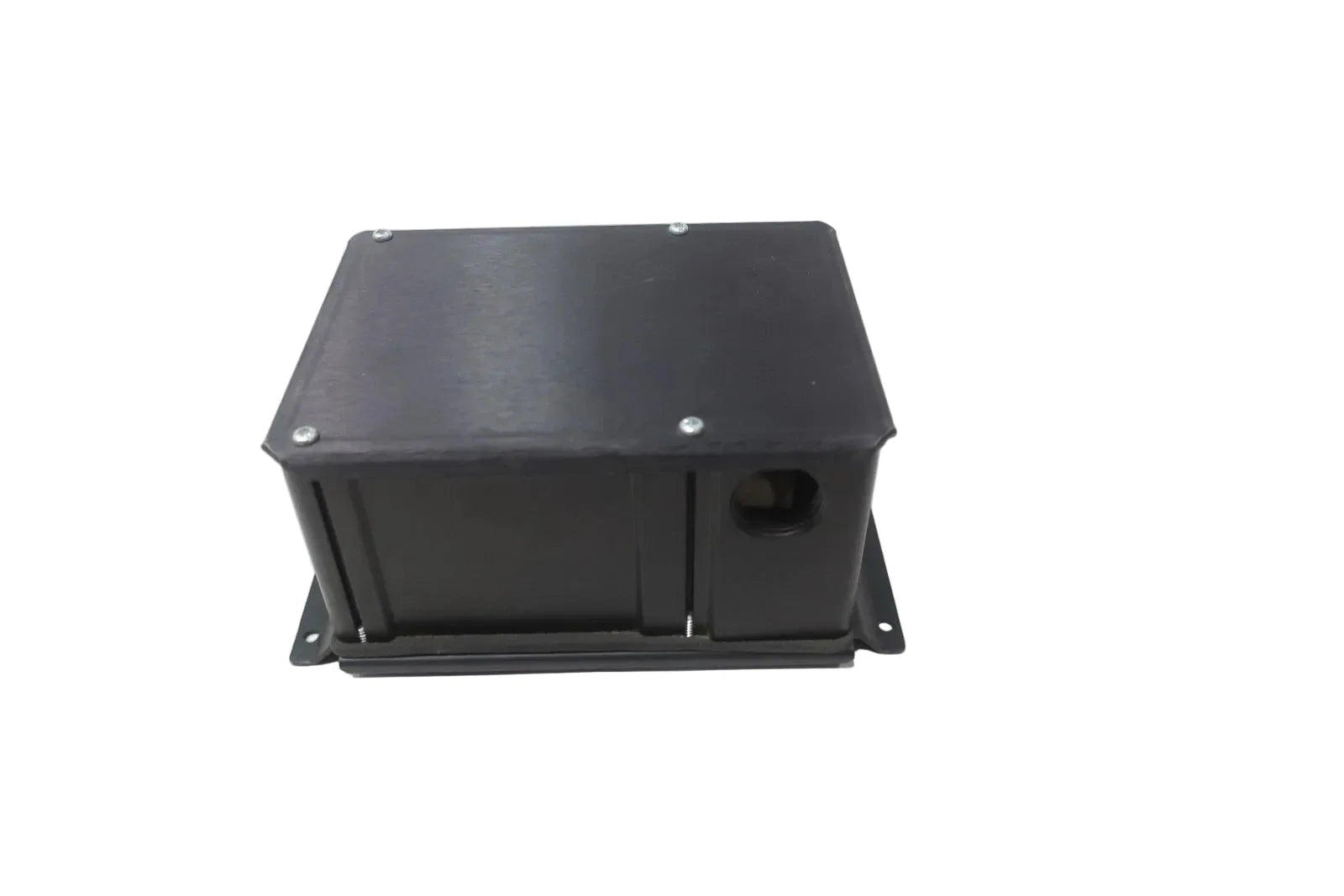

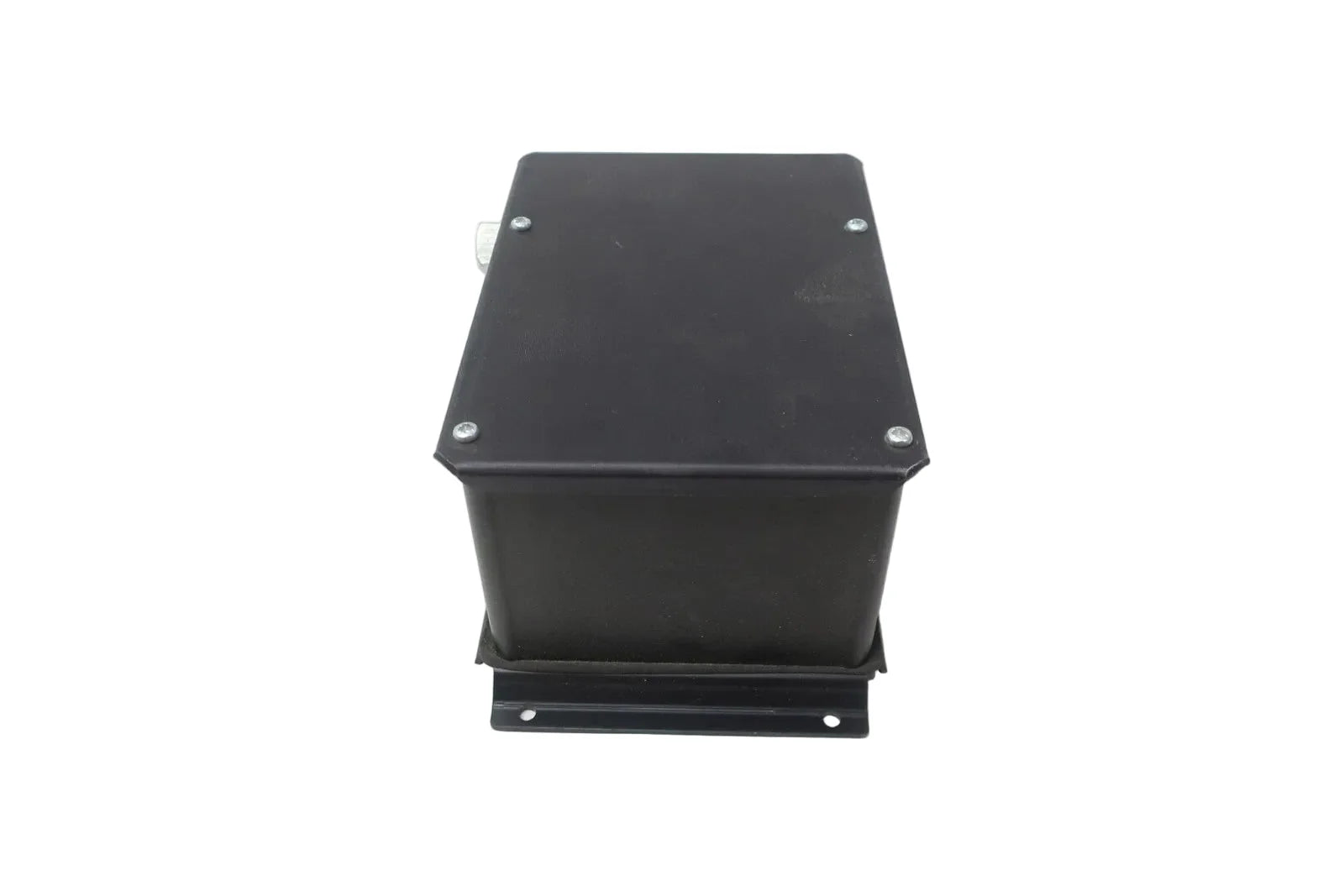

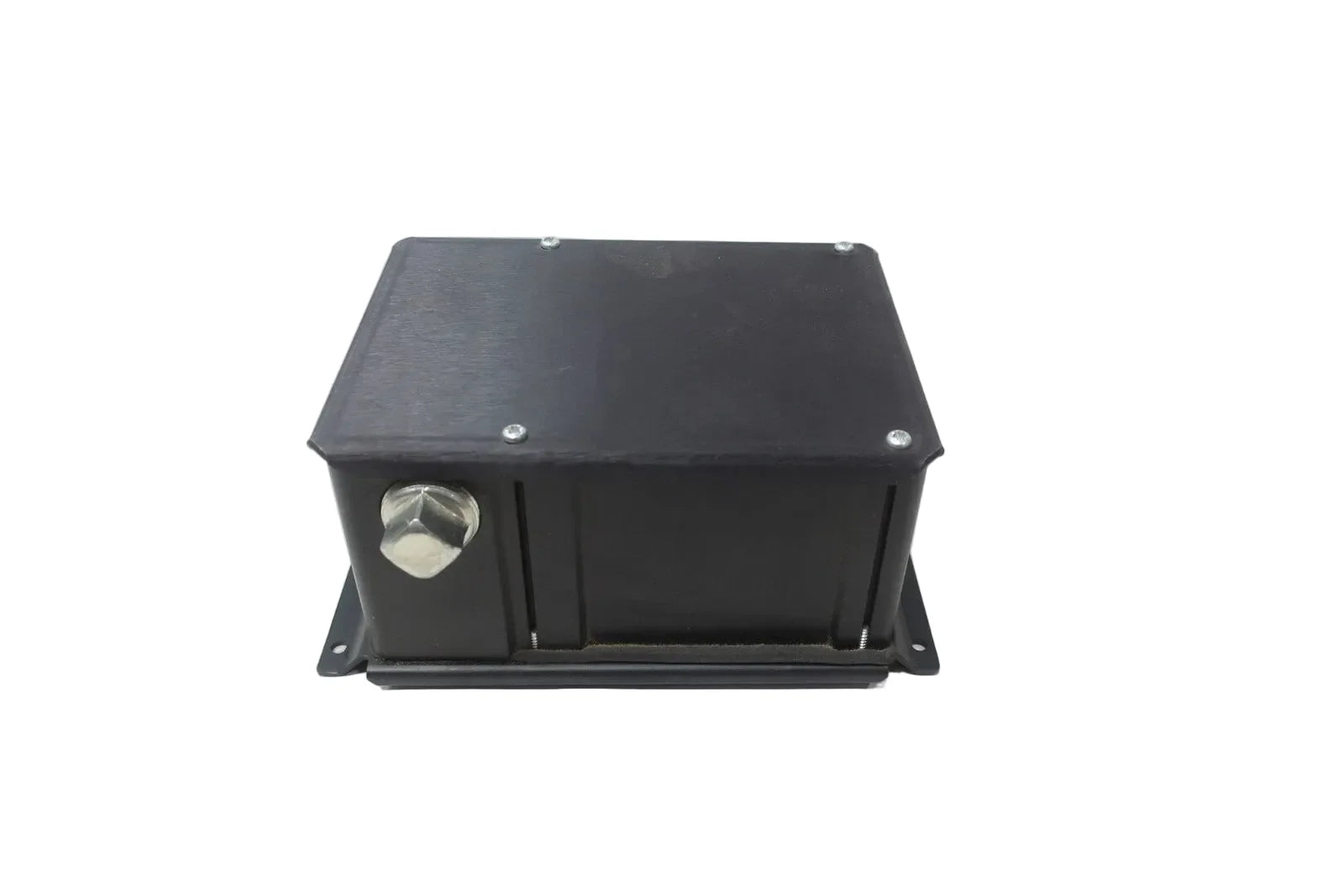

The Honeywell R7195A1031 is a solid-state motor positioner designed to control Modutrol motors using a proportional 4–20 mA input signal. It provides accurate single-channel positioning control for HVAC and industrial control applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
HVAC |
| Part Number |
R7195A1031 |
| Subcategory |
Motor Positioners |
| Device Type |
Proportioning Amplifier |
| Control Signal Input |
4–20 mA |
| Channel Configuration |
Single Channel |
| Technology |
Solid State |
| Supply Voltage |
120 VAC |
| Frequency |
60 Hz |
| Power Consumption |
12 VA |
| Compatible Motors |
Honeywell M944 Modutrol Motors |
| Application |
Motor Position Control |
| Mounting Type |
Panel / Control Enclosure Mount |
| Weight |
3.0 lb |
Information About R7195A1031
The R7195A1031 is part of Honeywell’s Modutrol motor control accessory lineup, engineered to provide precise proportional positioning for damper and valve actuators. This unit converts a 4–20 mA control signal into accurate motor positioning commands, allowing smooth modulation in HVAC and industrial process systems. Its solid-state design improves reliability and response consistency compared to electromechanical alternatives. Designed specifically for use with M944 Modutrol motors, the amplifier ensures stable operation and predictable control behavior.
Key Features:
- Proportional Motor Positioning: Converts a 4–20 mA control signal into precise motor position control for modulating applications.
- Single-Channel Solid-State Design: Provides reliable and consistent operation with minimal drift and maintenance requirements.
- Modutrol Motor Compatibility: Designed specifically for integration with Honeywell M944 Modutrol motors.
- Standard Control Signal Interface: Accepts industry-standard 4–20 mA input from controllers and automation systems.
- 120 VAC Power Operation: Supports common control panel power configurations.
- Low Power Consumption: Operates at 12 VA to reduce overall system power demand.
The R7195A1031 delivers the reliability and precision required for accurate Modutrol motor positioning in proportional control systems.
