Description

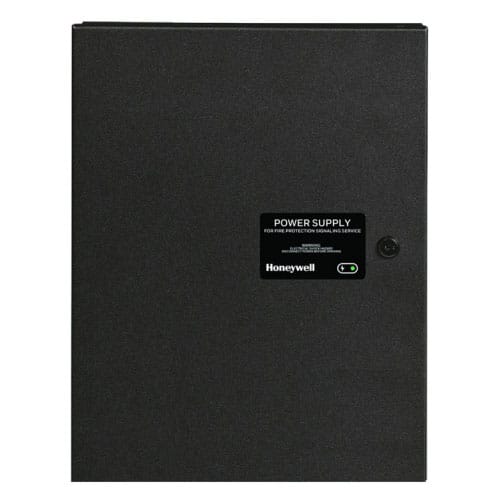

The Honeywell HPF-PS10B is a 10-amp, 120 VAC remote power supply designed for fire alarm systems and auxiliary applications. Housed in a black lockable metal enclosure, it offers up to seven configurable circuits, integrated synchronization, and an onboard battery charger for reliable operation.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Fire Alarm Systems |
| Part Number |
HPF-PS10B |
| Subcategory |
Remote Power Supply |
| Output Capacity |
10 A total, 3 A maximum per circuit |
| Output Circuits |
Up to 7 independently configurable (NACs, auxiliary power, door holder) |
| Input Voltage |
120 VAC |
| Wiring Support |
Class A or Class B (via ZNAC-PS converter card, sold separately) |
| Synchronization |
UL-listed sync for System Sensor, Wheelock, Gentex, AMSECO |
| Configurable Codes |
ANSI Temporal 3 or Temporal 4 |
| Control Inputs |
Triggered from FACP NACs, cascaded supply, or control module |
| Relays |
Two Form C trouble relays (AC Trouble, General Trouble) |
| Supervision |
End-of-line 2 kΩ to 27 kΩ |
| Protection |
Selectable earth fault detection, AC trouble reporting |
| Battery Charger |
Integral charger, supports up to 33 AH |
| Battery Housing |
Two 7 AH or two 18 AH batteries |
| Cabinet |
Black lockable steel enclosure |
| Cabinet Dimensions |
20 in H x 14.5 in W x 3.5 in D (50.8 x 36.83 x 8.9 cm) |
| Weight |
16 lbs |
Information About HPF-PS10B
The HPF-PS10B is a Honeywell remote power supply and NAC expander designed to extend the capacity of fire alarm control panels or function as a standalone unit. With up to seven independently configurable outputs, it supports Class A or Class B wiring for NACs, auxiliary power, and door holders. It synchronizes seamlessly with System Sensor, Wheelock, Gentex, and AMSECO appliances while offering ANSI Temporal 3 and 4 coding for alarm signaling. Its black metal cabinet houses two internal batteries, includes an integral charger for up to 33 AH, and simplifies setup with DIP-switch configuration and built-in trouble monitoring.
Key Features:
- High Output Capacity: Provides 10 amps of regulated 24 VDC across seven configurable outputs.
- Wiring Flexibility: Supports Class A and Class B wiring, convertible with ZNAC-PS card.
- Synchronization Support: UL-listed sync for leading appliance brands including System Sensor and Wheelock.
- ANSI Coding: Configurable for ANSI Temporal 3 and Temporal 4 coded alarm outputs.
- Integrated Charging: Built-in battery charger supports internal and external charging up to 33 AH.
- Rugged Enclosure: Black lockable steel cabinet ensures durability and system security.
- Scalable Design: Can be triggered by FACP NACs, cascaded supplies, or control modules.
- Simplified Installation: DIP-switch programming eliminates the need for external software.
- Diagnostic Features: Includes supervision, AC trouble reporting, and earth fault detection.
The HPF-PS10B delivers the reliability and precision required for powering notification appliances and auxiliary devices in modern fire alarm systems.
