Description

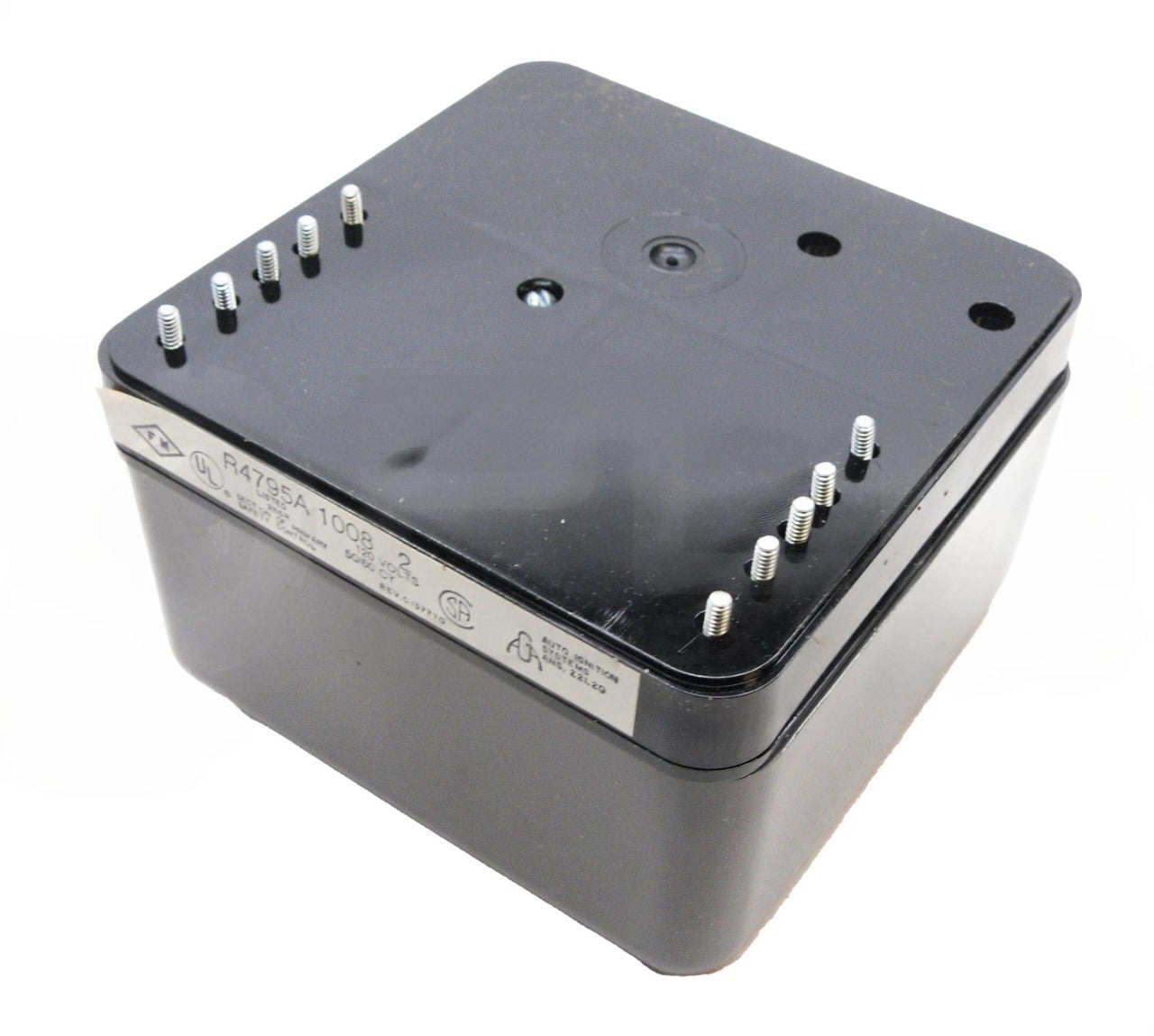

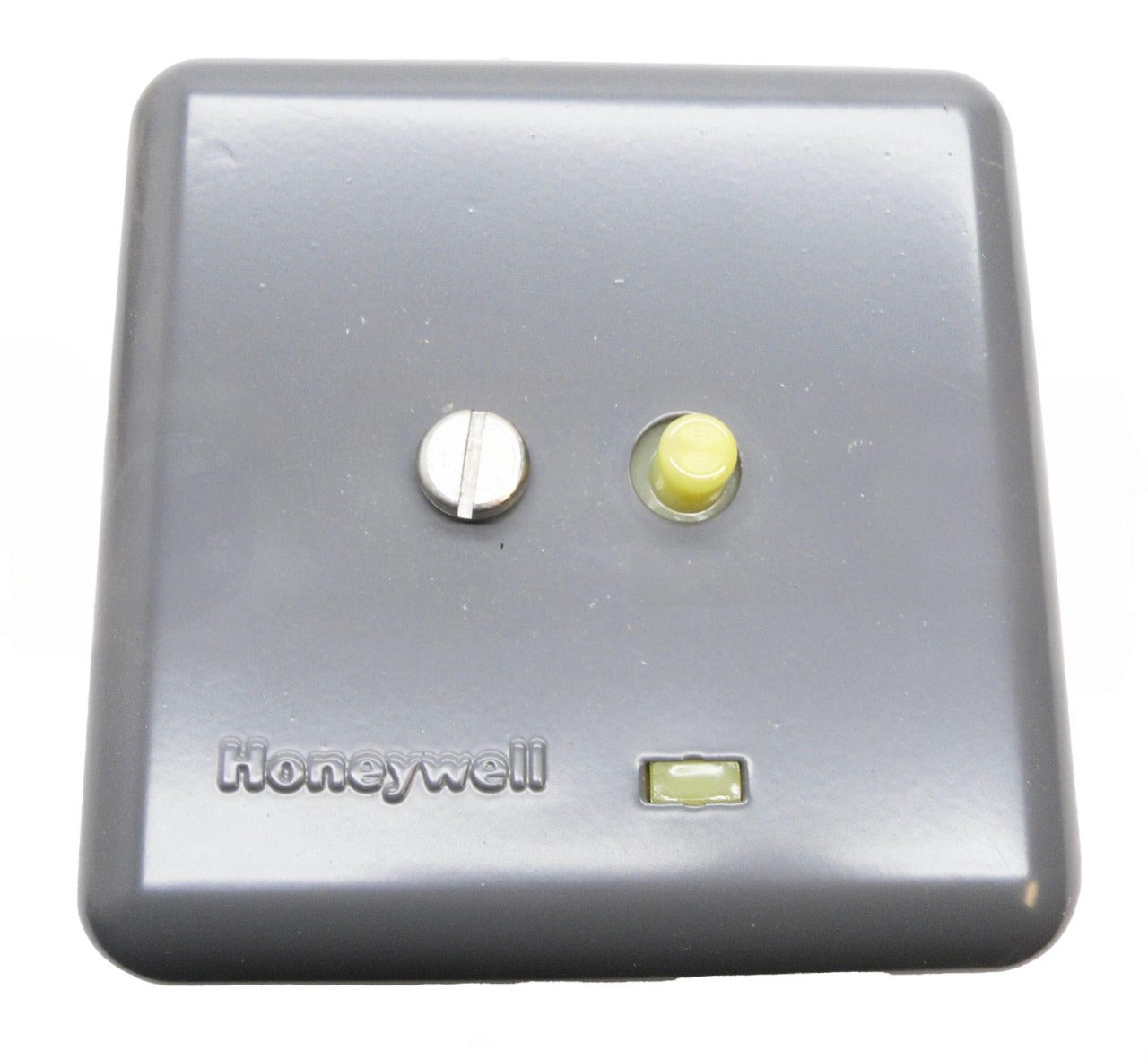

The Honeywell R4795A 1008 is a flame safeguard programming relay designed for use in gas, oil, and coal-fired burner systems. Operating at 120V, 50/60 Hz, this solid-state control module ensures reliable burner management through integrated safety features, flame detection compatibility, and configurable prepurge timing.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
|
| Part Number |
R4795A 1008 |
| Subcategory |
Flame Safety Accessory |
| Voltage |
120V |
| Frequency |
50/60 Hz
|
Compatible Fuels
|
Gas, Oil, Coal |
| Flame Detection Type |
UV or Rectification (via plug-in amplifier) |
| Prepurge Timing |
Variable (with plug-in timer card) |
| Flame Failure Response |
Recycle through prepurge or lockout if pilot not established |
| Alarm Contacts |
None |
| Operating Temperature |
-20°F to +125°F (-29°C to +52°C) |
| Electrical Connection |
Mounting Screws |
| Mounting Base |
Thermoplastic (Q270-style subbase) |
| Weight |
2.00 lbs
|
Information About R4795A 1008

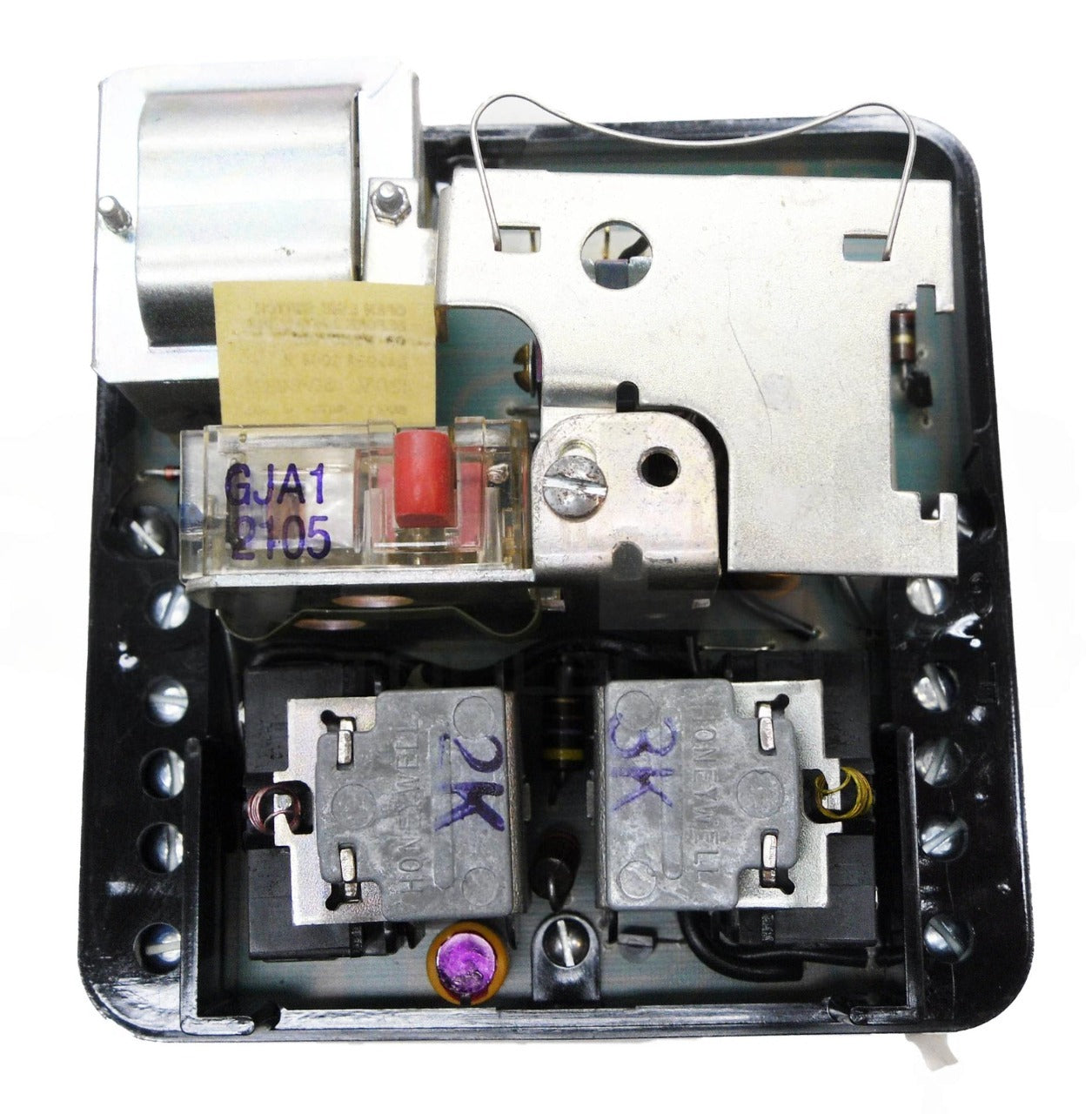

The R4795A 1008 is part of Honeywell’s Flame Safeguard (FSG) series and functions as a primary burner control for commercial and industrial boiler applications. It supports either electronic rectification or ultraviolet flame detection when used with the appropriate color-coded plug-in amplifier. The control performs a safe-start check to prevent startup in unsafe flame conditions and will lock out the system if a flame is not established during pilot trial. It also automatically recycles through a prepurge sequence if the flame signal is lost while in run. This model allows for variable prepurge durations through plug-in purge timers and offers built-in protection against ignition crossover in flame rod systems. With a rugged thermoplastic base and captive mounting screws, it is easy to install and service. The R4795A1008 weighs approximately 2.00 lbs and is rated for ambient temperatures from -20°F to +125°F (-29°C to +52°C).
Key Features:
- Flexible Flame Detection: Supports UV or rectification detection with plug-in amplifiers.
- Variable Prepurge: Adjustable timing with plug-in purge timer cards.
- Automatic Recycle: Returns to prepurge if flame is lost during operation.
- Safe-Start Logic: Prevents startup when unsafe flame conditions are detected.
- Solid-State Reliability: Durable electronics ensure stable performance over time.
- No Alarm Contacts: Streamlined model for systems not requiring external alert circuits.
- Easy Installation: Captive screws and thermoplastic subbase simplify mounting and replacement.
The R4795A 1008 offers dependable flame supervision and burner control with flexible configuration and safety protections.
