Description
Product description

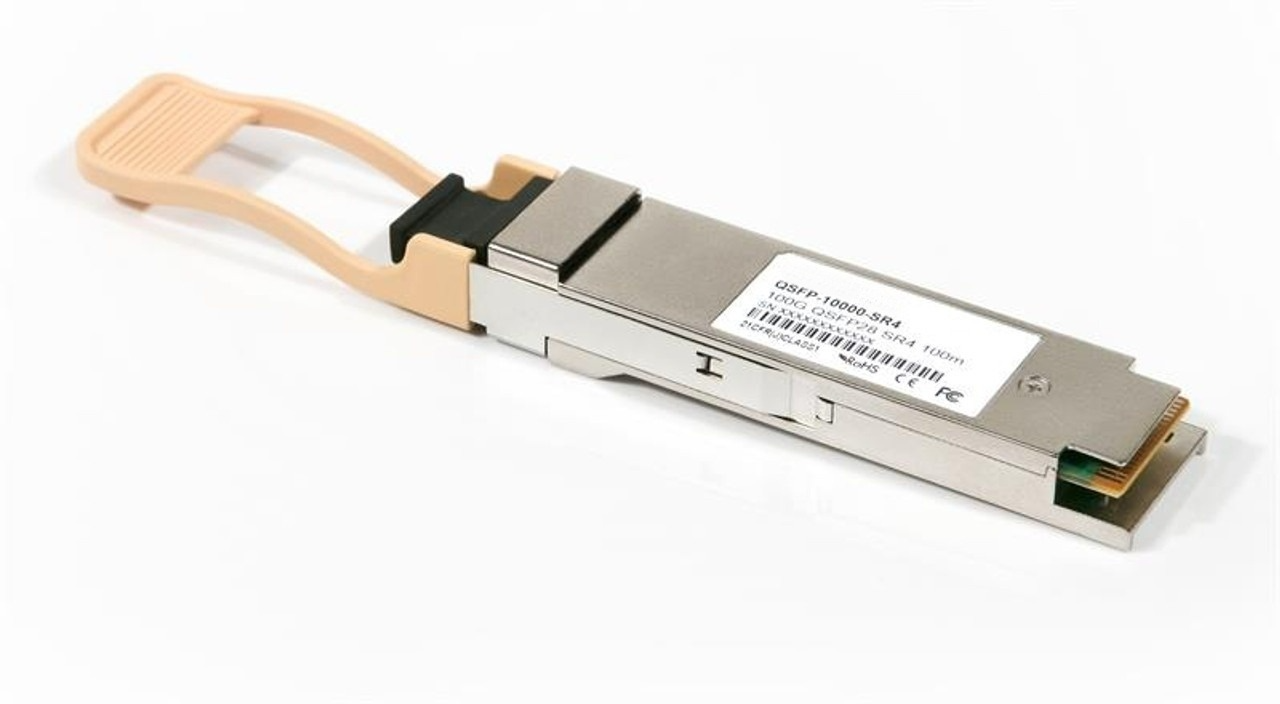

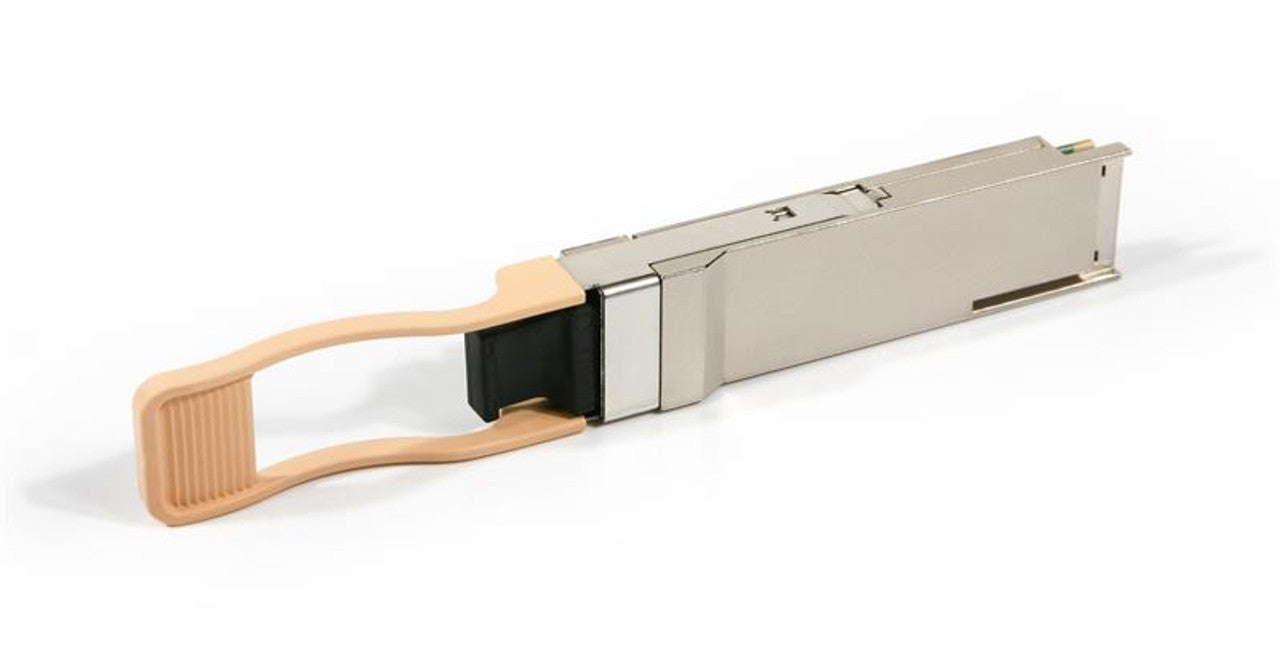

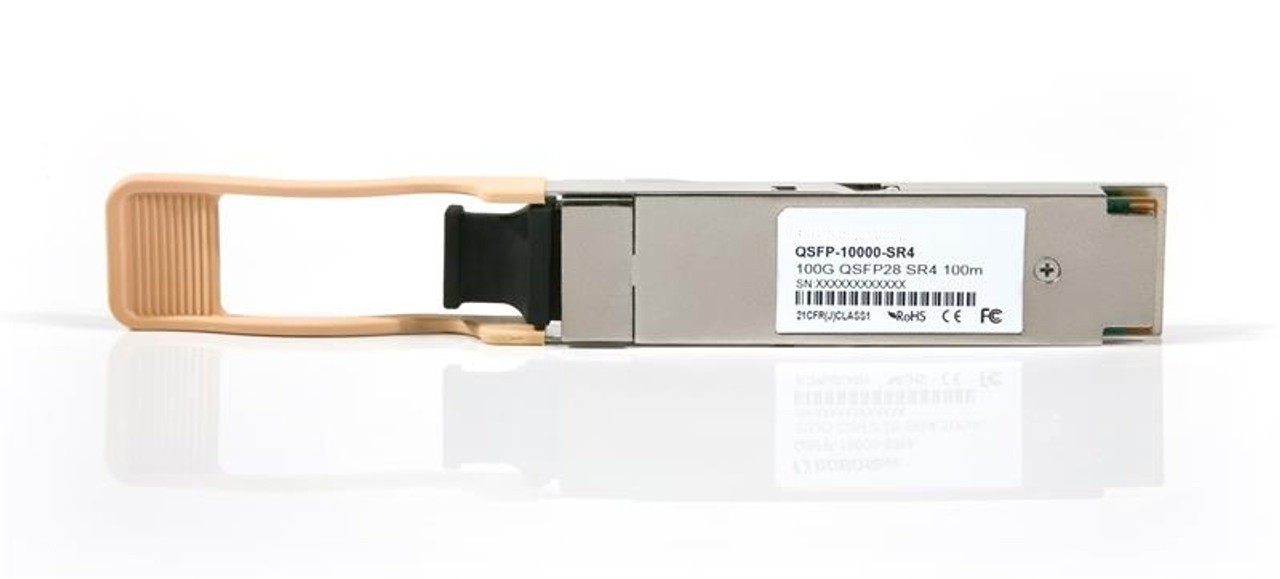

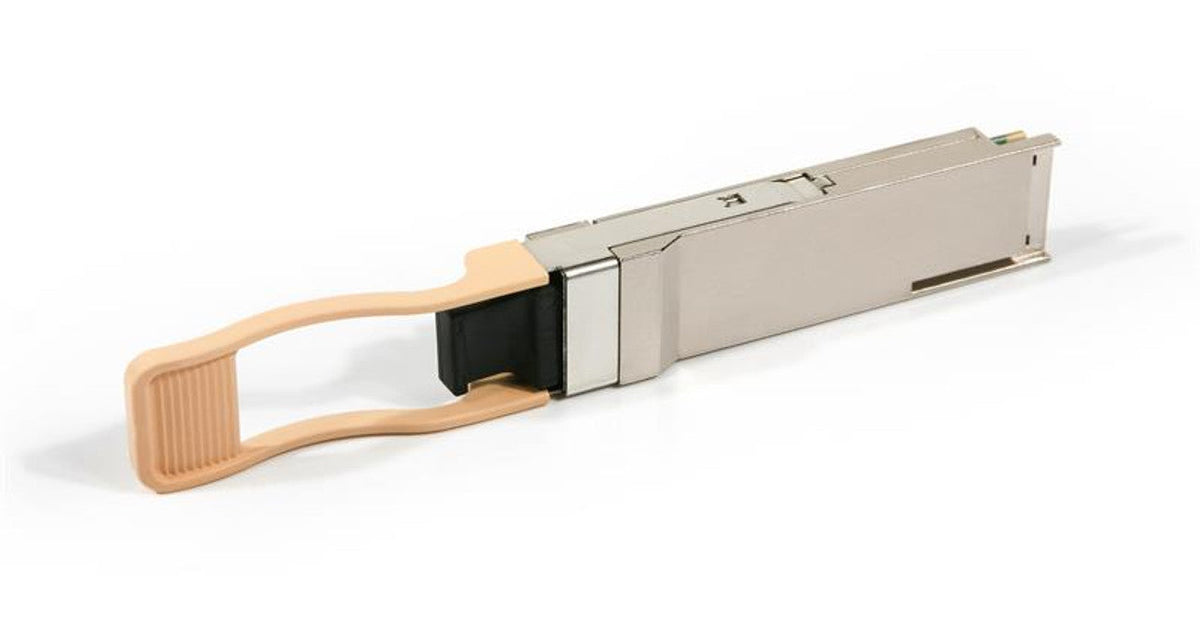

The QSFP-10000-SR4 is a parallel 100Gb/s Quad Small Form-factor Pluggable (QSFP28) optical module. It provides increased port density and total system cost savings.
The QSFP28 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 25Gb/s operation for an aggregate data rate of 100Gb/s on 100 meters of OM4 multi-mode fiber.
Tested compatible on various 100G Ethernet switches from Cisco, Arista, Juniper and Edge-Core and many other manufacturers adopting open MSA compliant slot policies.
QSFP-10000-SR4 100G QSFP28 MMF module specifications
| Form factor | QSFP28 |
| Speed | 4 x 25Gb/s |
| Optical connector | MPO |
| Operating distance | max. 100m |
| Power | single 3.3V |
| Compliance | MSA SFF-8431, RoHS |
| Operating mode | multi-mode |
| Fiber type | Multi-mode 50/125um OM3, OM4 MPO cable |
| Wavelength | 850nm |
| Digital Diagnostic | Yes (SFF-8636 compliant) |
Additional information on QSFP-10000-SR4 transceiver:
PDF Datasheet
