Description

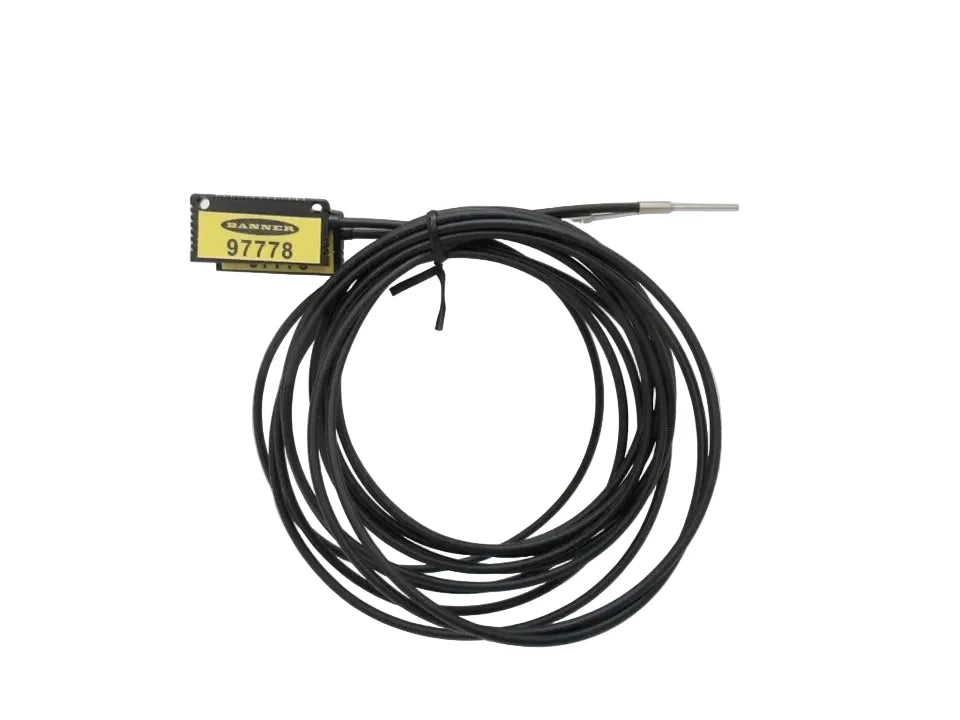

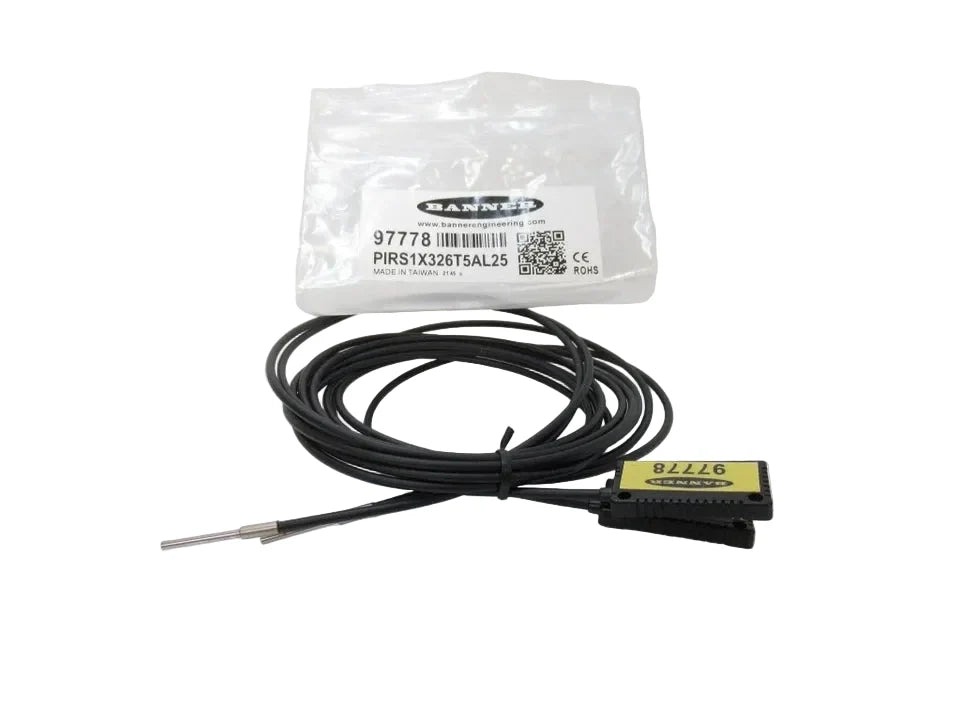

The Banner Engineering PIRS1X326T5AL25 is a plastic fiber optic array designed for opposed-mode photoelectric sensing applications. It features a 2-meter fiber length, right-angle beam exit, and a 25 mm sideview array configuration. The assembly includes T5 terminations and supports detection distances up to 3.65 meters depending on the amplifier used.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Banner Engineering |
| Category |
Sensors & Switches |
| Part Number |
PIRS1X326T5AL25 |
| Subcategory |
Fiber Optic Cable |
| Series |
PIRS1X32 |
| Fiber Optic Type |
Plastic |
| Sensing Mode |
Opposed (Array) |
| Fiber Length |
2 m |
| Core Diameter |
32 × 0.3 mm |
| Array Length |
24.5 mm |
| Sensing End Size |
19.0 × 38.0 mm |
| Beam Exit |
Right Angle |
| Termination Type |
T5 |
| Minimum Bend Radius |
60 mm |
| Maximum Sensing Distance (DF-G3) |
3651 mm |
| Measured Max Distance (DF-G1) |
470 mm |
| Operating Temperature |
Up to +70°C |
| Fiber Sheathing Material |
Polyethylene |
| Sensing End Material |
Polyethylene |
| Minimum Repeat Bending Endurance |
1000 Cycles |
| Quantity Included |
2 Fibers |
| Weight |
0.60 lbs |
Information About PIRS1X326T5AL25
The PIRS1X326T5AL25 belongs to the Banner Engineering PIRS1X32 plastic fiber family and is configured as a rectangular opposed array fiber. It uses a multi-core plastic fiber bundle (32 × 0.3 mm) with polyethylene sheathing and sensing end material. The array sensing end measures 19.0 × 38.0 mm with a 24.5 mm array length and right-angle beam orientation. Designed for use with compatible fiber optic amplifiers, it supports small object detection and offers a minimum bend radius of 60 mm.
Key Features:
-
Opposed array configuration: Designed for through-beam fiber optic sensing.
-
Multi-core plastic fiber: 32 × 0.3 mm core construction.
-
2 m fiber length: Standard routing length for industrial installations.
-
25 mm sideview array: 24.5 mm active sensing length.
-
Right-angle beam exit: Supports compact mounting configurations.
-
T5 termination: Compatible with Banner fiber amplifiers.
-
Small object detection capability: Suitable for fine part sensing.
The PIRS1X326T5AL25 delivers the reliability and precision required for industrial fiber optic opposed array sensing applications.
