Description

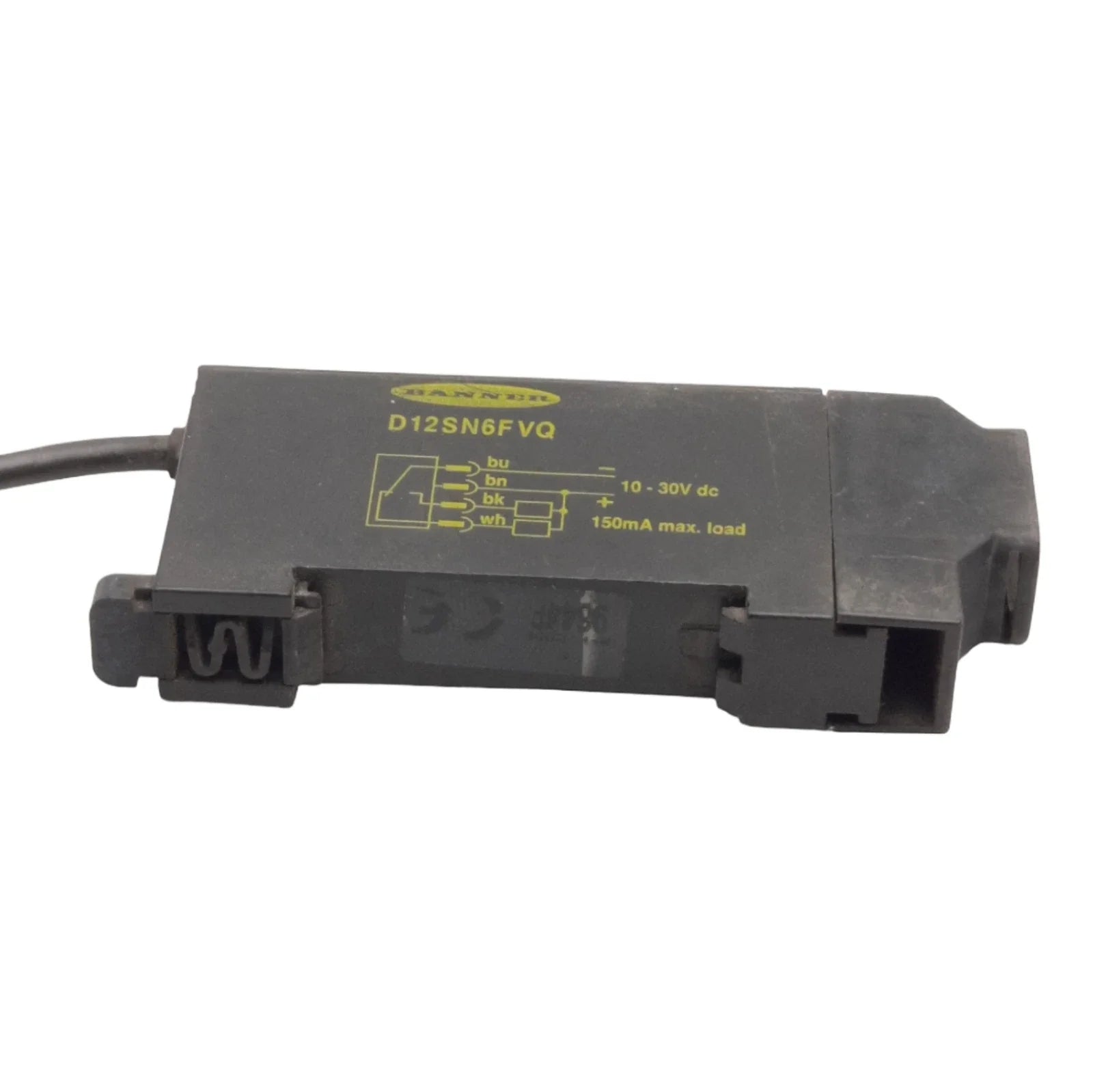

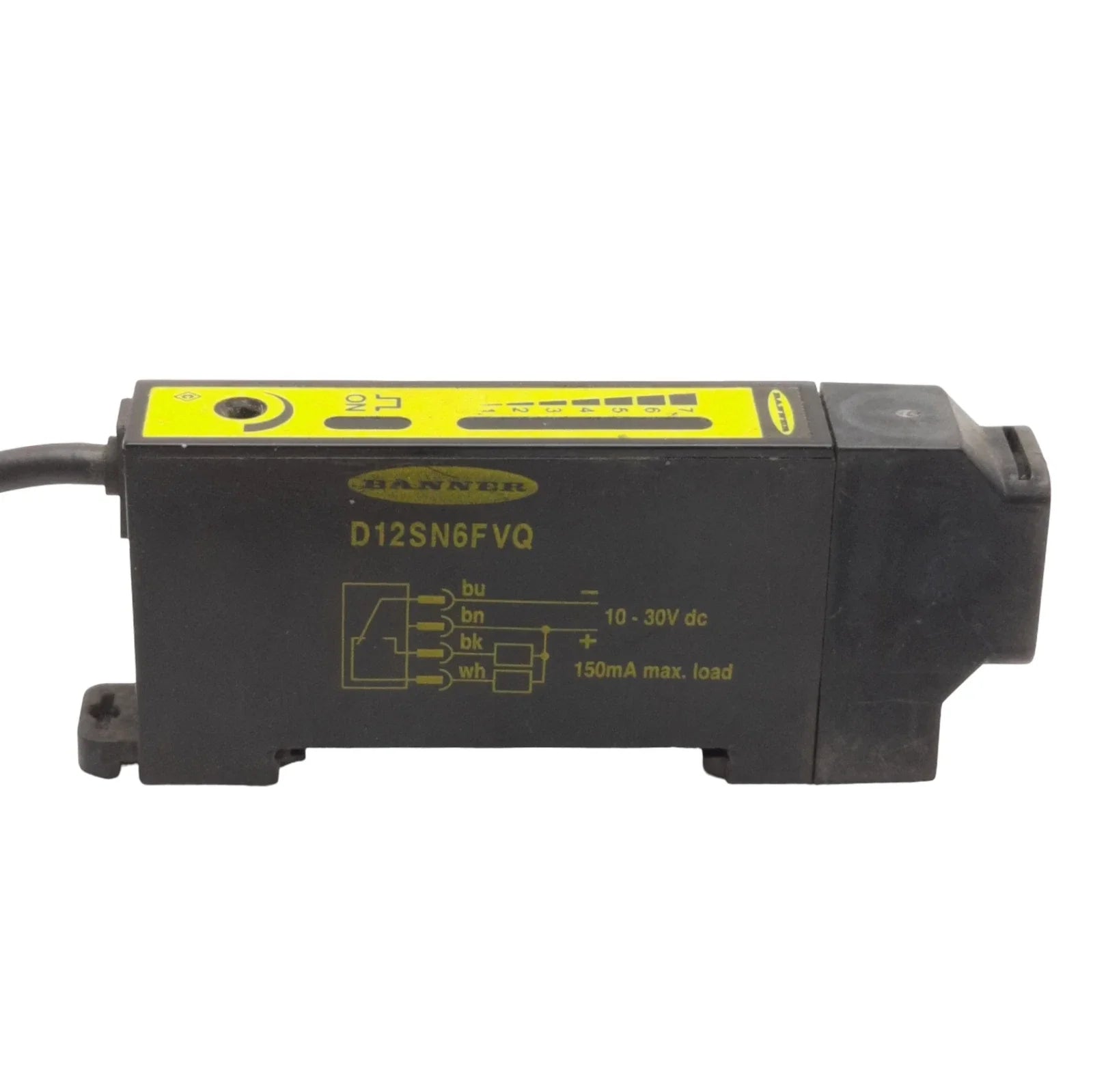

The Banner Engineering D12SN6FVQ is a D12 Series glass fiber optic amplifier designed for fast and reliable discrete sensing in industrial automation systems. Operating on a 10–30 VDC supply, this unit provides an NPN discrete output with rapid response for object counting and high-speed detection applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Banner Engineering |
| Category |
Sensors |
| Part Number |
D12SN6FVQ |
| Subcategory |
Fiber Optic Amplifiers |
| Series |
D12 Series |
| Product Type |
Glass Fiber Optic Amplifier |
| Fiber Type Supported |
Glass Fiber Only |
| Supply Voltage |
10–30 VDC |
| Output Type |
Single Discrete |
| Output Configuration |
NPN |
| Minimum Response Time |
0.5 ms |
| Repeatability |
130 µs |
| Delay at Power-Up |
100 ms |
| Connection Type |
Pigtail Quick Disconnect |
| Quick Disconnect Type |
M8 |
| Cable Length |
0.15 m (6 in) |
| Housing Style |
DIN Rail |
| Housing Material |
Thermoplastic |
| Indicator Type |
Bargraph LED |
| IP Rating |
IP11 |
| NEMA Rating |
NEMA 4X |
| Operating Temperature |
-20°C to 70°C |
| Operating Humidity |
Up to 90% RH at 50°C |
| Application |
Object Counting |
| Weight |
0.13 lbs |
Information About D12SN6FVQ

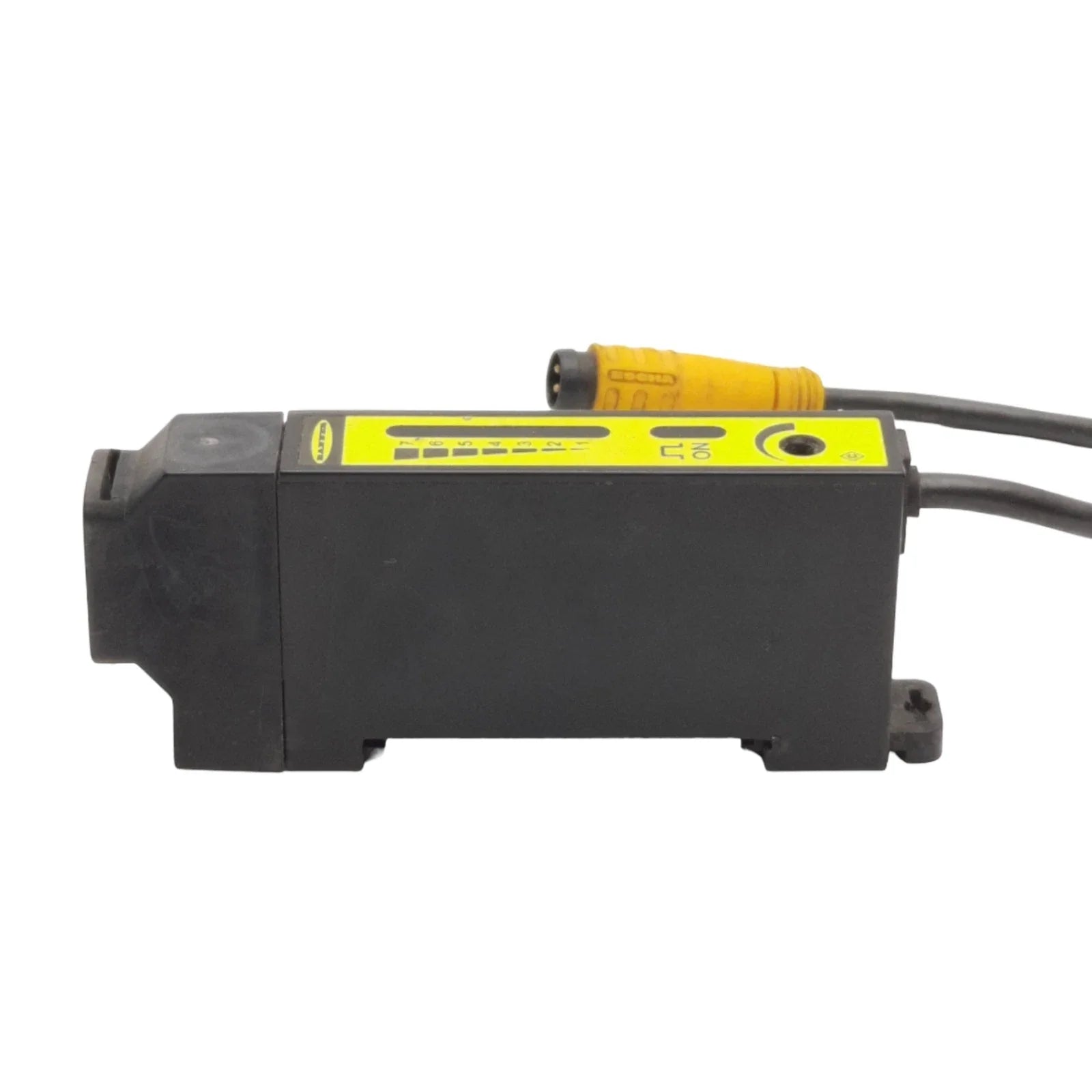

The D12SN6FVQ is part of Banner Engineering’s D12 Series fiber optic amplifiers, engineered specifically for use with glass fiber terminations. This amplifier features a compact DIN-rail-mount housing with an integrated bargraph LED indicator for clear signal and alignment feedback. It uses a pigtail quick-disconnect connection with an M8 interface, simplifying installation and maintenance. Designed for industrial control panels, it delivers consistent performance in environments requiring precise and repeatable sensing.
Key Features:
- Glass Fiber Optic Amplifier: Designed exclusively for use with glass fiber optic sensing elements.
- Discrete NPN Output: Provides a single NPN output suitable for PLC and control system inputs.
- High-Speed Response: Minimum response time of 0.5 ms supports fast object detection and counting.

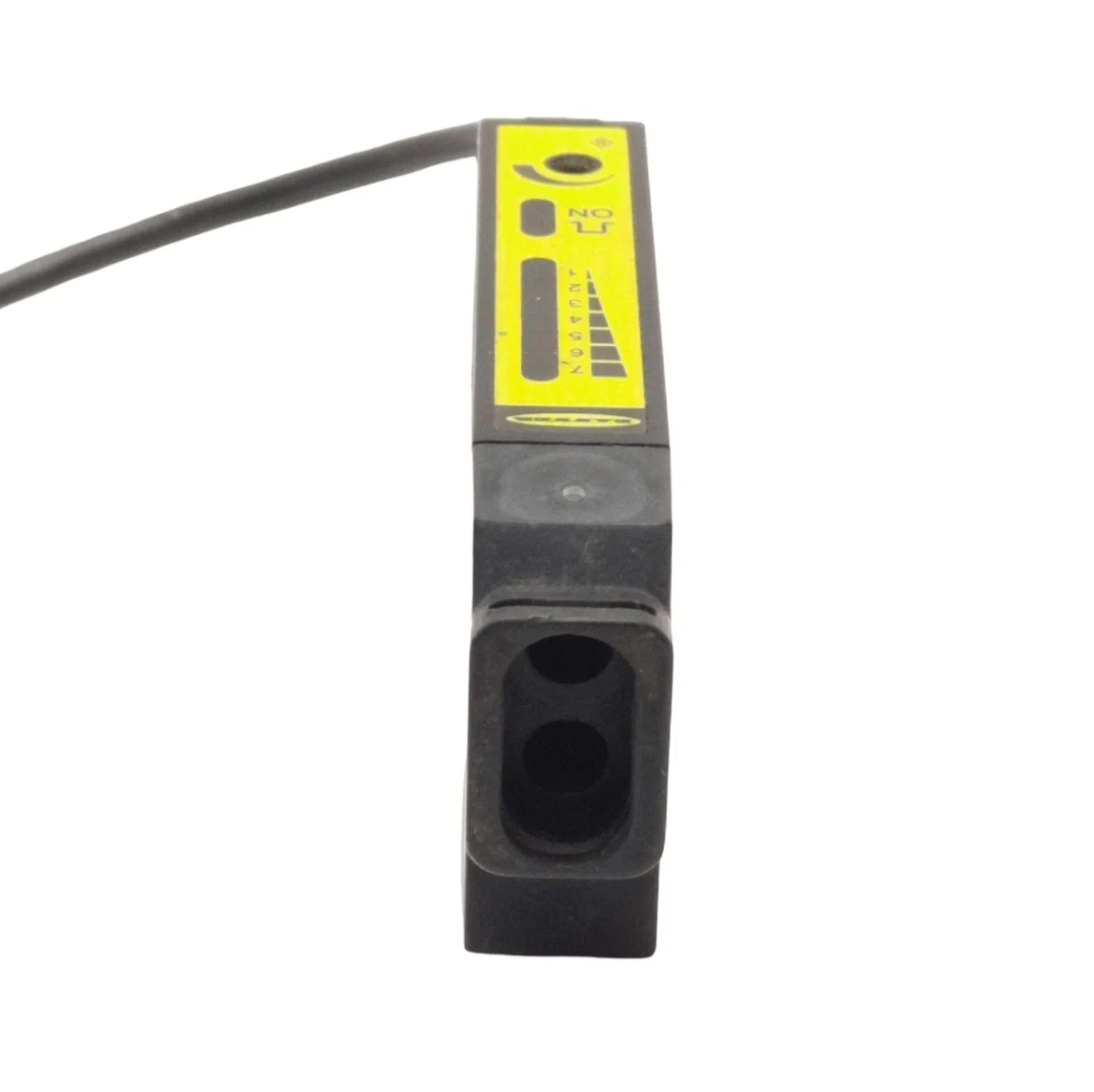

- Bargraph LED Indicator: Displays signal strength and operating status for easy setup and diagnostics.
- DIN Rail Mount Housing: Enables clean and secure installation in control cabinets.

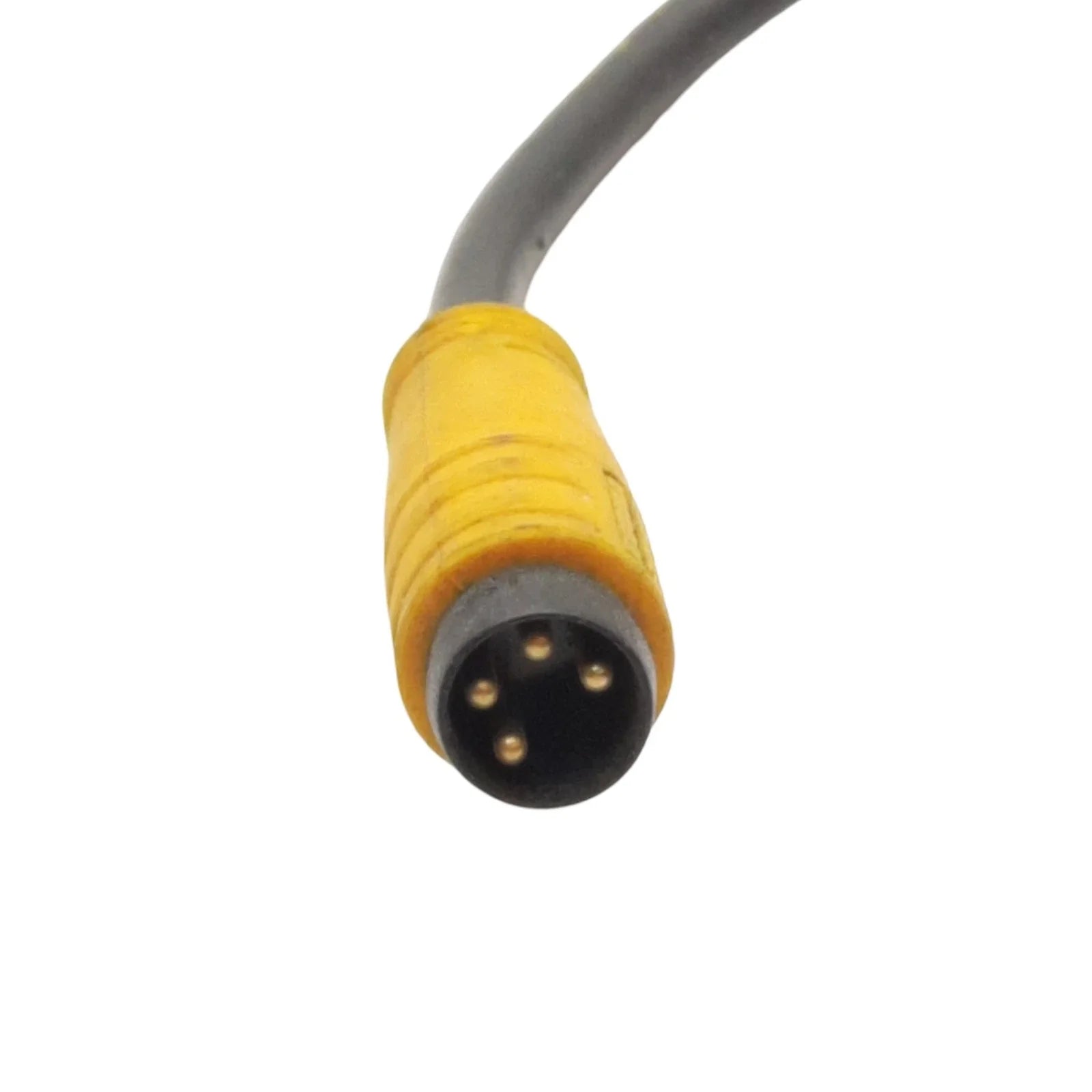

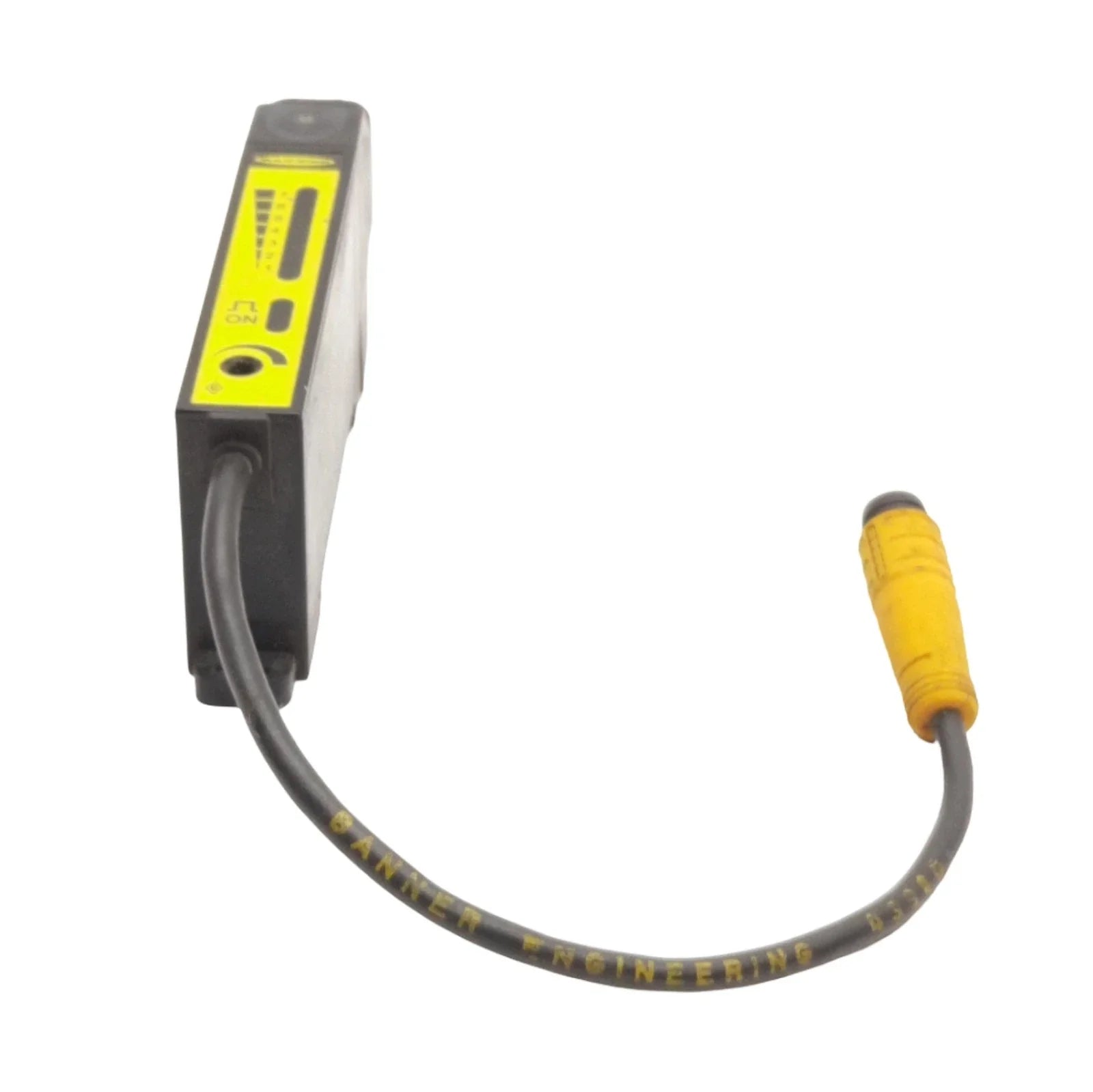

- Quick-Disconnect Interface: Features a pigtail with M8 quick-disconnect for simplified wiring.
- Object Counting Capability: Optimized for applications requiring accurate and repeatable detection.
The D12SN6FVQ delivers the reliability and precision required for glass fiber optic sensing and high-speed industrial automation applications.
