Overview

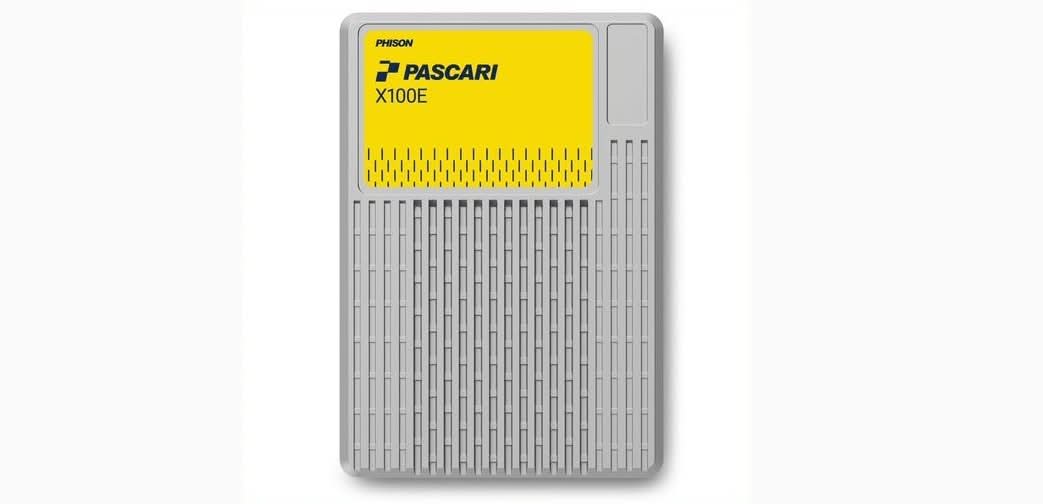

PHISON XP106H016T40E028T1900 Pascari X100E 6.4 TB U.2 Single Port PCIe Gen4x4 Non-Opal Security SSD
Specifications
Model Number:XP106H016T40E028T1900
Brand: PHISON
Alt Part Number(s):XP106H016T40E028T1900
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model:XP106H016T40E028T1900
Capacities: 6.4 TB
Form Factor: U.2
Interface: Single Port
Security: Non-Opal
PCIe Interface:
PCIe Gen4x4
Single Port x4 lanes
PCIe AER (Advanced Error Reporting)
Performance:
Sequential 128KB Read/Write (QD=32, Workers=1)(MB/s): 7,000/6,800
4K Sustained Random Read/Write (QD=64, Workers=8)(IOPS): 1,600,000/450,000
Latency 4K Sustained Random Read/Write (µs): 100/15(QD=1, Workers=1); 110/120(QD=32, Workers=1); 450/1700(QD=64, Workers=8)
IOPS Consistency 4KB Sustained Random Read/Write: 95%/95%
4KB Sustained Random Read/Write Quality of Service (QoS=99%)(4KB): 100/12(QD=1, Workers=1); 130/100(QD=32, Workers=1); 600/1800(QD=64, Workers=8)
DWPD: 3DWPD
TBW: 35040 TB
LBAF: 512 / 512+ 8 / 4K / 4K + 8 / 4K + 64 Bytes
MTBF: 2,500,000 hours
UBER (Uncorrectable Bit Error Rates): < 1 sector per 10^18 bits read
Advanced Flash Management:
ECC
Static and Dynamic Wear Leveling
Bad Block Management
Deallocate (TRIM) Command
SMART
Over-Provision
Firmware Upgrade
Temperature Range:
Operation: 0°C - 70°C with specified airflow
Storage: -40°C - 85°C
RoHS compliant
Enterprise Features Support List
Namespace: Supported
Single Port: Supported
Reservation: Supported
Metadata Protection Thermal throttling: Supported
Power Loss Protection: Supported
Hardware AES-XTS 256-bit Encryption: Supported
Support SMBus: Yes
Support NVMe-MI (Management Interface): Yes
Data Retention: 3 months
Compliance:
PCIe Express Base 4.0
NVMe 1.4
NVMe Management Interface Rev 1.1
Supply Voltage:
12v: +/- 10%
12v noise level: 240mVp-p, 0-20MHz
12v min off time: 500ms
3.3v aux: +/- 15%
Inrush current: 12v 1.5A
*
