Overview

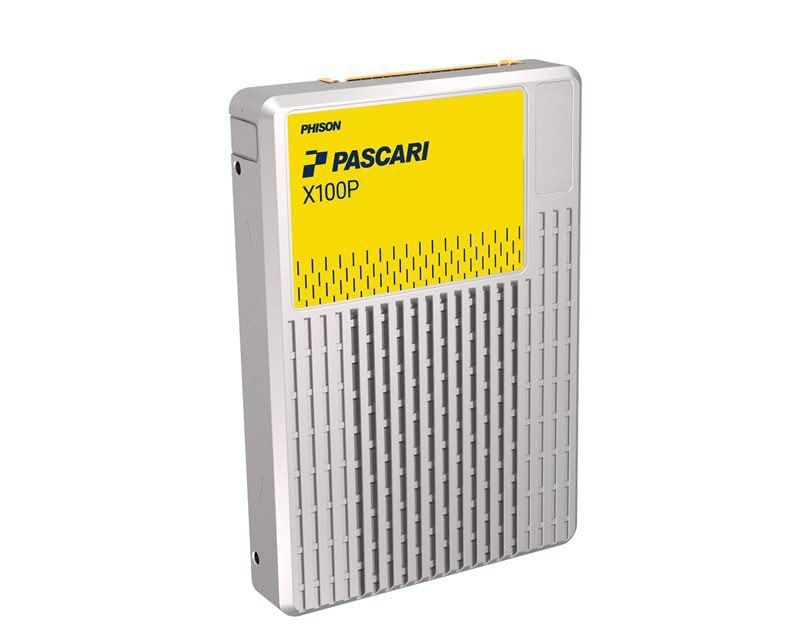

PHISON XX106H011T92P022T0400 Pascari X100P 1.92 TB U.2 Dual Port PCIe Gen4x4 Non-SED SSD
Specifications
Model Number:XX106H011T92P022T0400
Brand: PHISON
Alt Part Number(s):XX106H011T92P022T0400
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model:XX106H011T92P022T0400
Capacities: 1.92 TB
Security: Non-SED
Form Factor: U.2
PCIe Interface
PCIe Gen4x4
Dual Port: x2 lanes
PCIe AER: Advanced Error Reporting
Compliance
PCI Express Base Specification Rev. 4.0
NVM Express Base Specification Rev. 1.4
NVM Express Management Interface Rev 1.1
PCI Express SFF-8639 Module Specification Revision 4.0, Version 1.0, SFF-TA-1001 r1.1
512KB Sequential Read/Write (QD=32, Job=1) (MB/s): 7400 / 3600
4KB Random Read/Write (QD=128, Jobs=8) (IOPS): 1750K / 126K
Power Consumption
128K Sequential Read (Average RMS, W): 10
128K Sequential Write (Average RMS, W): 13
4KB Random Read (Average RMS, W): 12
4KB Random Write (Average RMS, W): 12
4KB 70/30 Random Read/Write (Average RMS, W): 12
Idle (Average RMS, W): 5.4
MTBF: 2.5 million hours
UBER: < 1 sector per 10^18 bits read
DWPD: 1
TBW: 3504 TB
Temperature Range
Operating: 0°C - 70°C with specified airflow
Non-operating: -40°C - 85°C
Shock
Operating: 500G, 2ms
Non-operating: 1000G, 0.5ms
Vibration
Operating: 2.17 Grms (200 - 2000Hz)
Non-operating: 16.3 Grms (10 - 2000 Hz)
Drop: 80cm height
Bending: 50N
Certifications and Declarations: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL
Product Ecological Compliance: RoHS compliant
Feature Support
LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
64 Namespaces
Dual Port
Reservation
Metadata Protection
Thermal throttling
Power Loss Protection
Hardware AES-XTS 256-bit Encryption
SMBus
*
