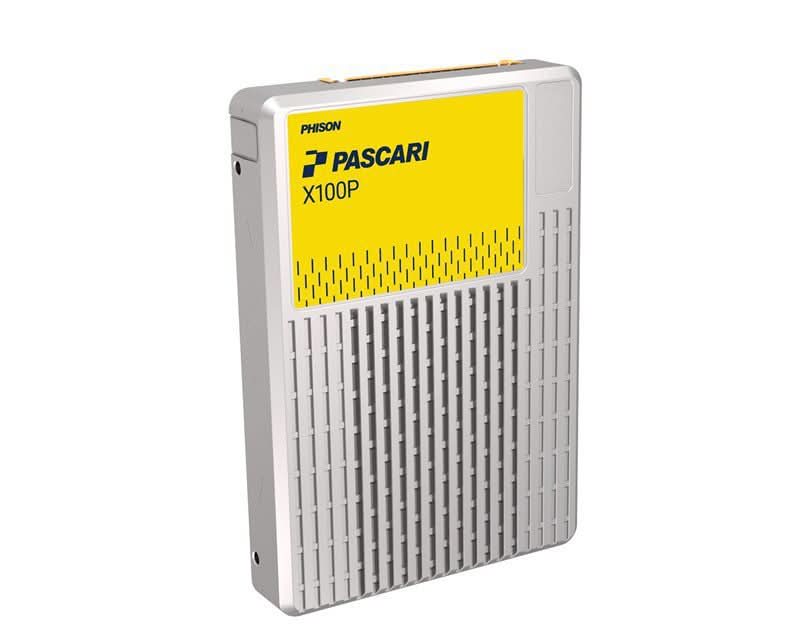

 PHISON XX106H003T84P224T0900 Pascari X100P 3.84TB U.2 Dual Port PCIe Gen4x4 Opal SSD

Specifications

Model Number:XX106H003T84P224T0900

Brand:   PHISON

Alt Part Number(s):XX106H003T84P224T0900

Product Type: Solid State Drive

Technical Description

Brand:  PHISON

Model:XX106H003T84P224T0900

Capacity 3.84TB

Form Factor U.2

Security Opal

PCIe Interface PCIe Gen4x4

Port Configuration Dual Port x2 lanes

PCIe AER Advanced Error Reporting

Maximum Sequential Read / Write 7000MB/s / 6700MB/s

Maximum Random Read / Write 1600K IOPS / 170K IOPS

Sustained Random Read / Write Latency (µs) 100/15 (QD=1, Workers=1); 110/300 (QD=32, Workers=1); 450/4000 (QD=64, Workers=8)

IOPS Consistency 95%

QoS (99%) Read / Write (µs) 100/12 (QD=1, Workers=1); 140/200 (QD=32, Workers=1); 600/3200 (QD=64, Workers=8)

Power - Random Read / Write (Typical) 13.3W / 15.5W

Power - Sequential Read / Write (Typical) 10.6W / 17.9W

Inrush Current 1.5A

Idle Power (Typical) 5.80W

DWPD 1DWPD

TBW 7008TB

LBAF 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes

MTBF 2,500,000 hours

UBER < 1 sector per 10^18 bits read

Advanced Flash Management ECC, Static and Dynamic Wear Leveling, Bad Block Management, Deallocate (TRIM) Command, SMART, Over-Provision, Firmware Upgrade

Operating Temperature 0°C – 70°C with specified airflow

Storage Temperature -40°C – 85°C

RoHS Compliance Yes

Namespaces Supported

Dual Port Supported

Reservation Supported

Metadata Protection Supported

Thermal Throttling Supported

Power Loss Protection Supported

Hardware Encryption AES-XTS 256-bit

SMBus Support Yes

NVMe-MI Support Yes

Data Retention 3 months

Compliance PCIe Express Base 4.0, NVMe 1.4, NVMe Management Interface Rev 1.1

*
