Overview

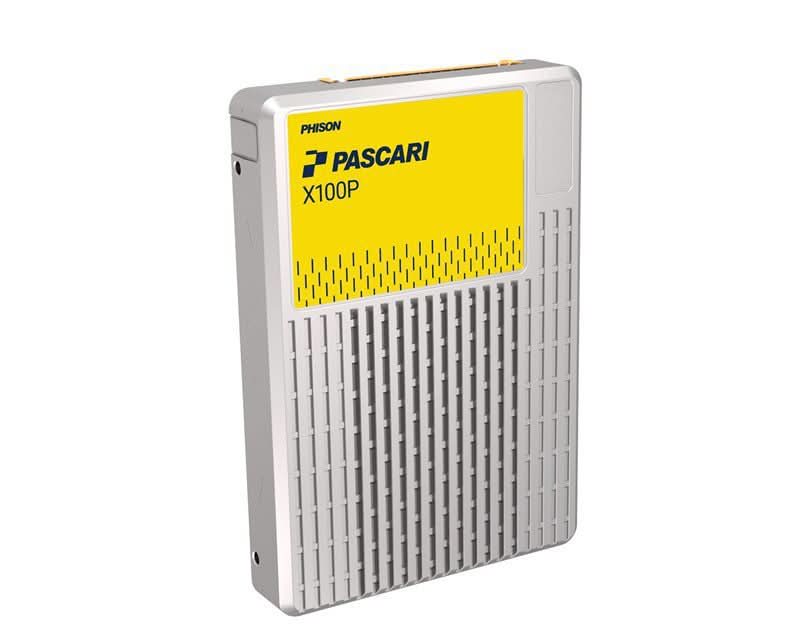

 PHISON XX106H001T92P022T0400 Pascari X100P 1.92TB U.2 Dual Port PCIe Gen4x4 Non-Opal Security SSD

Specifications

Model Number:XX106H001T92P022T0400

Brand:   PHISON

Alt Part Number(s):XX106H001T92P022T0400

Product Type: Solid State Drive

Technical Description

Brand:  PHISON

Model:XX106H001T92P022T0400

Capacities: 1.92TB

Form Factor: U.2

Security: Non-Opal

PCIe Interface

PCIe Gen4x4

Dual Port: x2 lanes

PCIe AER: Advanced Error Reporting

Sequential 128KB (QD=32, Workers=1) Read / Write: 7000 MB/s / 3500 MB/s

4K Sustained Random (QD=64, Workers=8) Read / Write: 1600K IOPS / 95K IOPS

4KB Sustained Random Read/Write Latency (µs): 110 / 15 (QD=1, Workers=1); 120 / 400 (QD=32, Workers=1); 450 / 5000 (QD=64, Workers=8)

IOPS Consistency: 95%

QoS (99%) Read / Write (µs): 100 / 12 (QD=1, Workers=1); 160 / 350 (QD=32, Workers=1); 1000 / 5700 (QD=64, Workers=8)

Power Consumption
Random Read/Write (Typ): 12.4 / 11.9 W
Sequential Read/Write (Typ): 10.1 / 12.8 W
Inrush Current: 1.5A
Idle Power (Typ): 5.46 W

DWPD: 1 DWPD

TBW: 3504 TB

LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes

MTBF: 2,500,000 hours

UBER: < 1 sector per 10^18 bits read

Advanced Flash Management
ECC
Static and Dynamic Wear Leveling
Bad Block Management
Deallocate (TRIM) Command
SMART
Over-Provision
Firmware Upgrade

Temperature Range
Operation: 0 °C - 70 °C with specified airflow
Storage: -40 °C - 85 °C

RoHS compliant

Enterprise Features Support List
Namespace
Dual Port
Reservation
Metadata Protection
Thermal throttling
Power Loss Protection
Hardware AES-XTS 256-bit Encryption

Support SMBus

Support NVMe-MI (Management Interface)

Data Retention: 3 months

Compliance
PCIe Express Base 4.0
NVMe 1.4
NVMe Management Interface Rev 1.1

*
