Overview

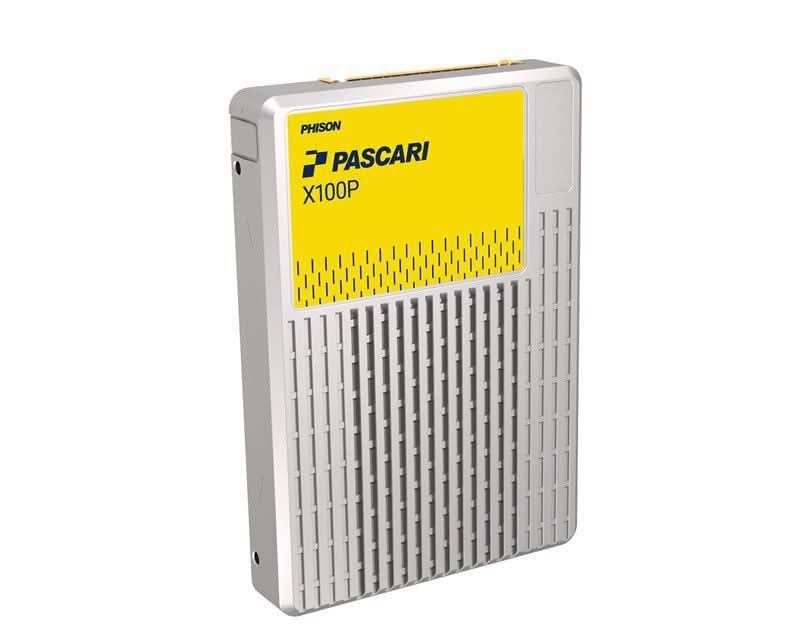

PHISON XP106H007T68P228T1900 Pascari X100P 7.68TB U.2 Single Port PCIe Gen4x4 Opal SSD
Specifications
Model Number:XP106H007T68P228T1900
Brand: PHISON
Alt Part Number(s):XP106H007T68P228T1900
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model:XP106H007T68P228T1900
Capacity: 7.68TB
Form Factor: U.2
Security: Opal
Interface: PCIe Gen4x4 (Single Port x4 lanes)
NVMe: 1.4
Sequential Read (MB/s): 7,000
Sequential Write (MB/s): 6,800
4K Random Read (IOPS): 1,600K
4K Random Write (IOPS): 180K
Sustained Latency (µs, QD=1): 100 Read / 15 Write
Sustained Latency (µs, QD=32): 110 Read / 300 Write
Sustained Latency (µs, QD=64): 450 Read / 3,800 Write
QoS 99% (QD=1): 100 Read / 12 Write
QoS 99% (QD=32): 130 Read / 200 Write
QoS 99% (QD=64): 600 Read / 3,200 Write
Power - Random Read/Write (W): 15.7 / 17.4
Power - Sequential Read/Write (W): 11.6 / 19.1
Idle Power (W): 5.75
Inrush Current: 1.5A
DWPD: 1
TBW: 14,016 TB
LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64
MTBF (hours): 2,500,000
UBER: < 1 sector per 10^18 bits read
Operating Temp (°C): 0 - 70
Non-Operating Temp (°C): -40 - 85
Data Retention: 3 months
Encryption: AES-XTS 256-bit
Other Features:
ECC
Wear Leveling
Bad Block Management
TRIM
SMART
Over-Provision
Firmware Upgrade
Thermal Throttling
Power Loss Protection
SMBus
NVMe-MI
Compliance: PCIe 4.0, NVMe 1.4, RoHS
*
