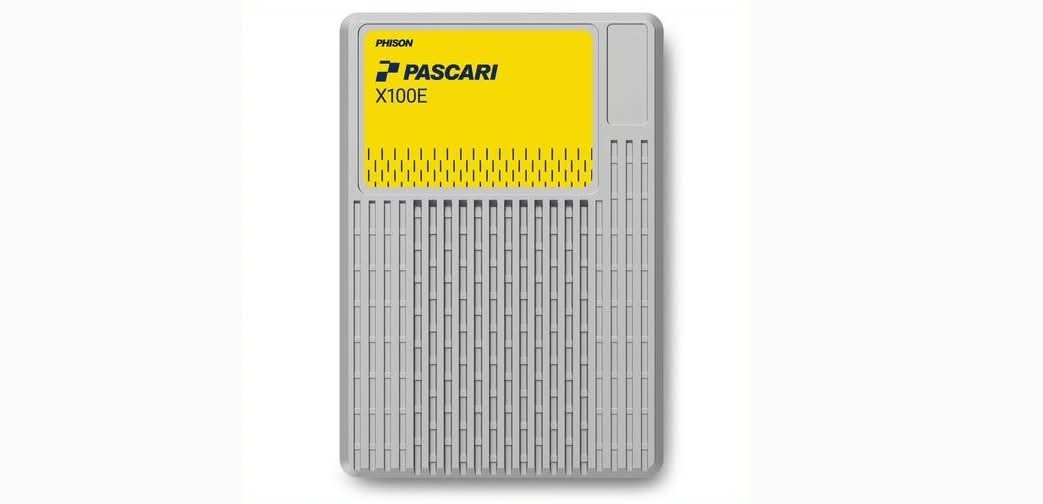

 PHISON XP106H006T40E228T1900 Pascari X100E 6.4 TB U.2 Single Port PCIe Gen4x4 Opal SSD

Specifications

Model Number:XP106H006T40E228T1900

Brand:   PHISON

Alt Part Number(s):XP106H006T40E228T1900

Product Type: Solid State Drive

Technical Description

Brand:  PHISON

Model:XP106H006T40E228T1900

Capacities: 6.4 TB

Form Factor: U.2

Security: Opal

PCIe Interface
PCIe Gen4x4
Single Port x4 lanes
PCIe AER (Advanced Error Reporting)

Sequential 128KB (QD=32, Workers=1) Read / Write: 7000 MB/s / 6800 MB/s

4K Sustained Random (QD=64, Workers=8) Read / Write: 1600K IOPS / 450K IOPS

4KB Sustained Random Read / Write Latency (µs): 100 / 15 (QD=1, Workers=1); 110 / 120 (QD=32, Workers=1); 450 / 1700 (QD=64, Workers=8)

IOPS Consistency: 95%

QoS (Quality of Service, 99%) Read / Write (µs): 100 / 12 (QD=1, Workers=1); 130 / 100 (QD=32, Workers=1); 600 / 1800 (QD=64, Workers=8)

Power Consumption
Random Read / Write (Typ): 15.9 / 17.8 W
Sequential Read / Write (Typ): 11.9 / 19.9 W
Inrush Current: 1.5A
Idle Power (Typ): 5.88 W

DWPD: 3

TBW: 35040 TB

LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes

MTBF: 2,500,000 hours

UBER: < 1 sector per 10^18 bits read

Advanced Flash Management
ECC
Static and Dynamic Wear Leveling
Bad Block Management
Deallocate (TRIM) Command
SMART
Over-Provision
Firmware Upgrade

Temperature Range
Operation: 0 °C – 70 °C with specified airflow
Storage: -40 °C – 85 °C

RoHS: Compliant

Enterprise Features Support List
Namespace
Single Port
Reservation
Metadata Protection
Thermal Throttling
Power Loss Protection
Hardware AES-XTS 256-bit Encryption

Support SMBus

Support NVMe-MI (Management Interface)

Data Retention: 3 months

Physical Dimension: U.2 100(L) x 70(W) x 15(H) mm

Compliance
PCIe Express Base 4.0
NVMe 1.4
NVMe Management Interface Rev 1.1

*
