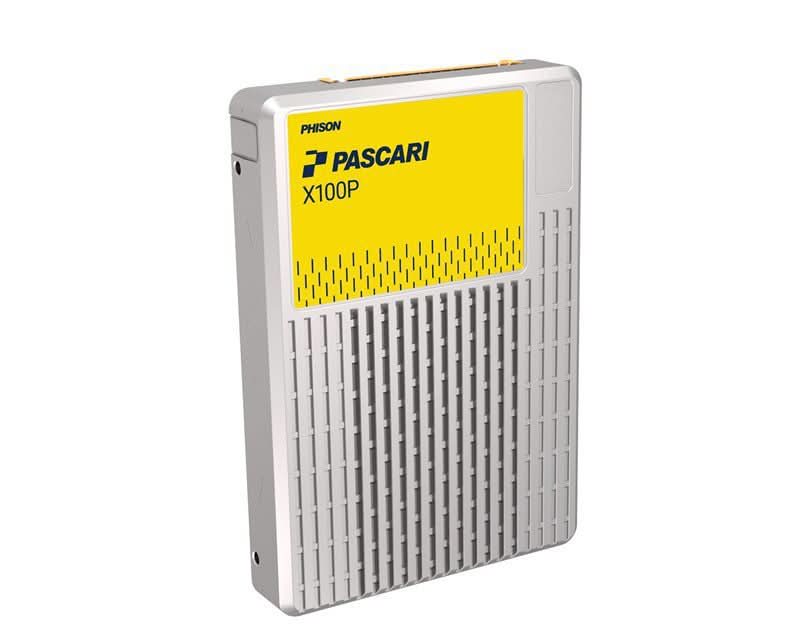

 PHISON XP106H001T92P222T0400 Pascari X100P 1.92TB U.2 Single Port PCIe Gen4x4 Opal Security SSD

Specifications

Model Number:XP106H001T92P222T0400

Brand:   PHISON

Alt Part Number(s):XP106H001T92P222T0400

Product Type: Solid State Drive

Technical Description

Brand:  PHISON

Model:XP106H001T92P222T0400

Capacities: 1.92TB

Form Factor: U.2

Security: Opal

PCIe Interface: PCIe Gen4x4

Single Port: x4 lanes

PCIe AER: Advanced Error Reporting

Sequential 128KB (QD=32, Workers=1) Read: 7000MB/s

Sequential 128KB (QD=32, Workers=1) Write: 3500MB/s

4K Sustained Random (QD=64, Workers=8) Read: 1600K IOPS

4K Sustained Random (QD=64, Workers=8) Write: 95K IOPS

4KB Sustained Random Read Latency (µs): 110 (QD=1, Workers=1), 120 (QD=32, Workers=1), 450 (QD=64, Workers=8)

4KB Sustained Random Write Latency (µs): 15 (QD=1, Workers=1), 400 (QD=32, Workers=1), 5000 (QD=64, Workers=8)

IOPS Consistency: 95%

QoS (99%) Read (µs): 100 (QD=1, Workers=1), 160 (QD=32, Workers=1), 1000 (QD=64, Workers=8)

QoS (99%) Write (µs): 12 (QD=1, Workers=1), 350 (QD=32, Workers=1), 5700 (QD=64, Workers=8)

Random Read Power (Typ): 12.4W

Random Write Power (Typ): 11.9W

Sequential Read Power (Typ): 10.1W

Sequential Write Power (Typ): 12.8W

Inrush Current: 1.5A

Idle Power (Typ): 5.46W

DWPD: 1

TBW: 3.5PB

LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes

MTBF: 2,500,000 hours

UBER: < 1 sector per 10^18 bits read

ECC: Supported

Static and Dynamic Wear Leveling: Supported

Bad Block Management: Supported

Deallocate (TRIM) Command: Supported

SMART: Supported

Over-Provision: Supported

Firmware Upgrade: Supported

Operating Temperature: 0°C – 70°C with specified airflow

Storage Temperature: -40°C – 85°C

RoHS: Compliant

Namespace: Supported

Reservation: Supported

Metadata Protection: Supported

Thermal Throttling: Supported

Power Loss Protection: Supported

Hardware AES-XTS 256-bit Encryption: Supported

Support SMBus: Yes

Support NVMe-MI (Management Interface): Yes

Data Retention: 3 months

Physical Dimension: U.2 100(L) x 70(W) x 15(H) mm

Compliance: PCIe Express Base 4.0

NVMe Version: 1.4

NVMe Management Interface: Rev 1.1

*
