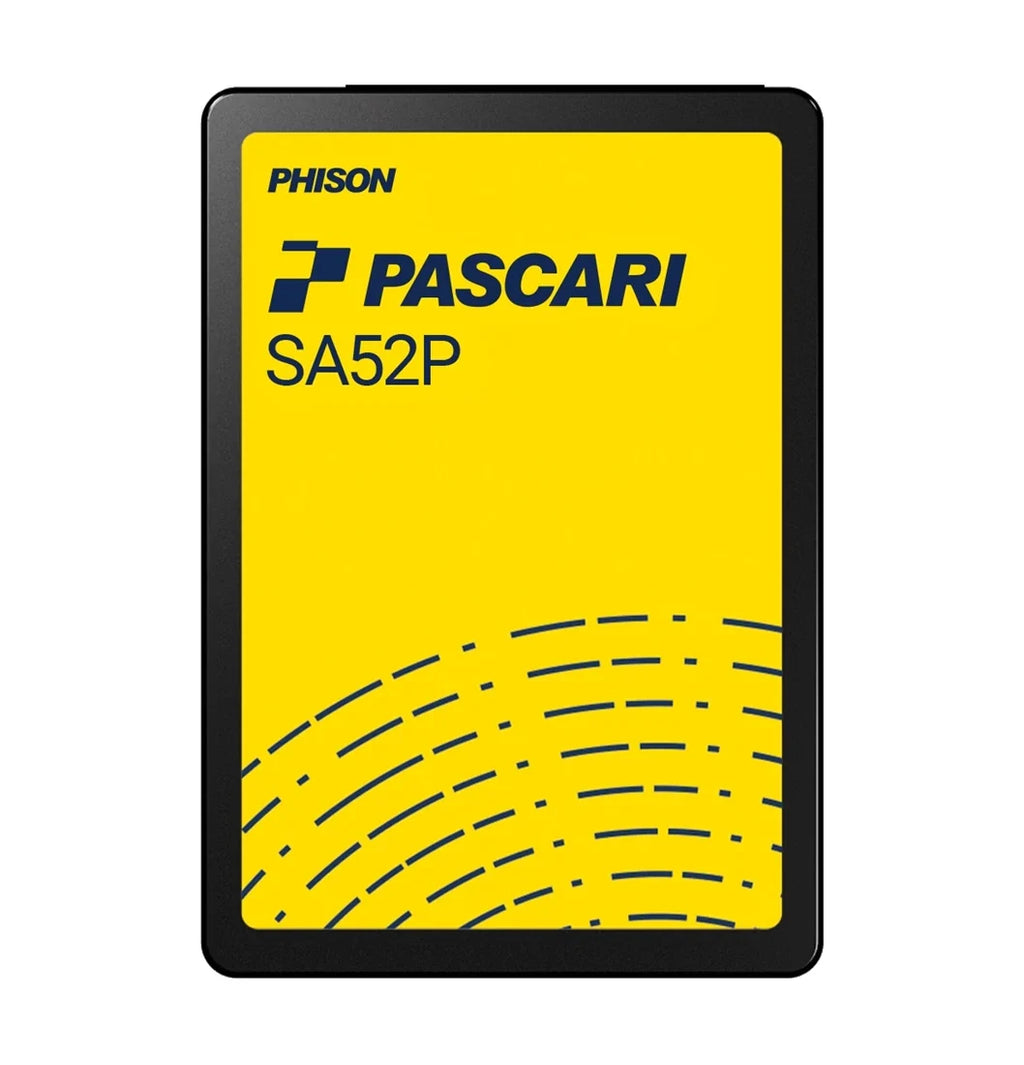

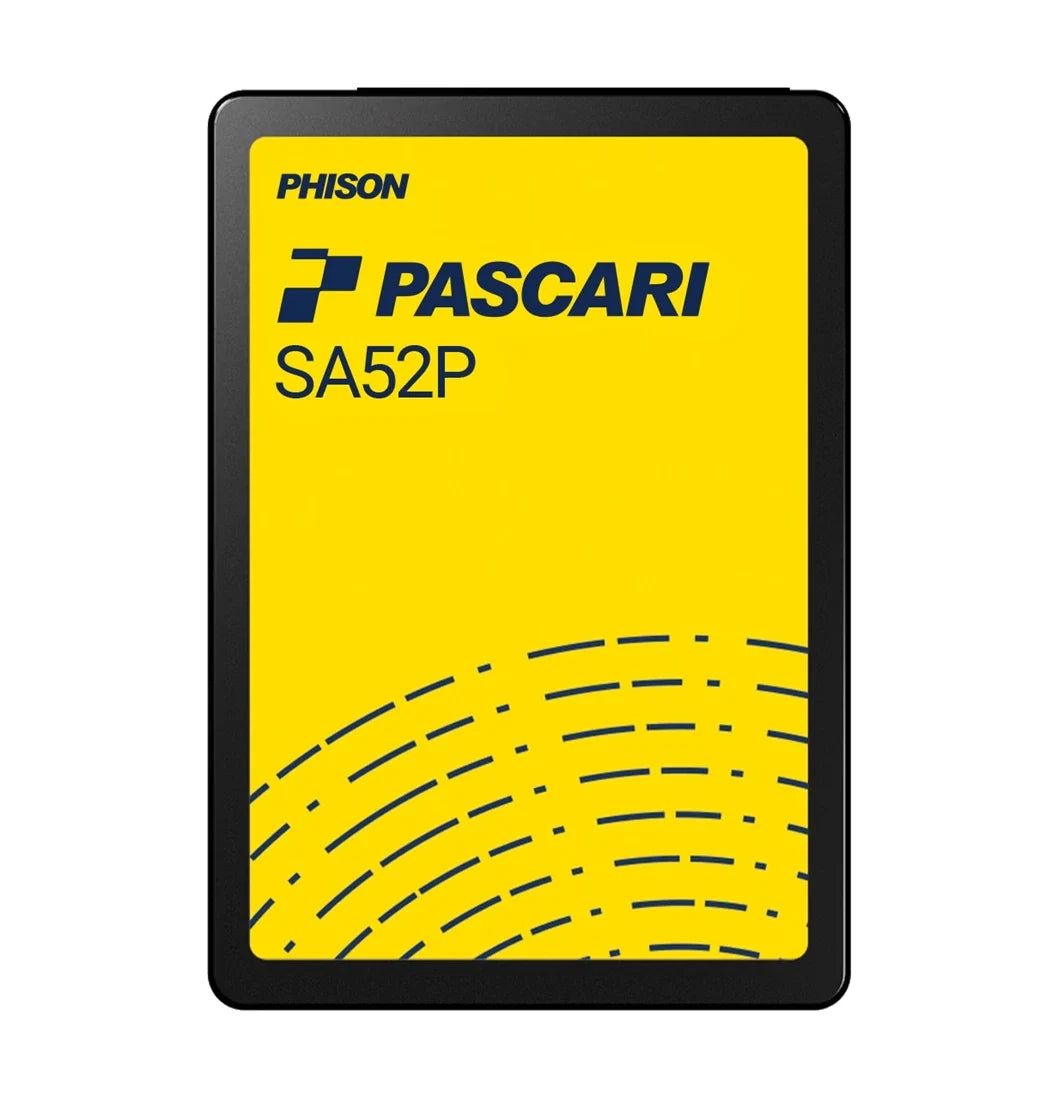

Phison S1201K051T92P022T0400 is a 1.92TB 2.5-inch enterprise SSD with SATA Gen3 interface, delivering up to 530 MB/s sequential read and 500 MB/s sequential write speeds. It offers 1 DWPD endurance, up to 98K IOPS random read and 35K IOPS random write, hardware power loss protection, TCG Opal 2.0 security, and high reliability with 2M hour MTBF and wide operating temperature range.



Specifications

Model Number:  S1201K051T92P022T0400

Brand: PHISON

Alt Part Number(s):  S1201K051T92P022T0400

Product Type:  Solid State Drive



Technical Description

Brand: PHISON

Model:  S1201K051T92P022T0400

Series:  Pascari SA52P

Capacity: 1.92 TB

Form Factor: 2.5" SSD

SATA Interface: SATA Gen3

Compliance: SATA Revision 3.2

Sequential Read: Up to 530 MB/s

Sequential Write: Up to 500 MB/s

Random Read: Up to 98K IOPS

Random Write: Up to 35K IOPS

Active Read (Typ.): 2.4 W

Active Write (Typ.): 2.9 W

Idle Power: 1.5 W

MTBF: 2,000,000 hours

UBER: < 1 sector per 10^17 bits read

DWPD: 1

TBW: 3,504 TB

Operating Temperature: 0 °C ~ 70 °C

Non-operating Temperature: -40 °C ~ 85 °C

Shock (Operating): 1000G, 0.5 ms

Shock (Non-operating): 1500G, 0.5 ms

Vibration (Operating): 3.08 Grms (7 - 800 Hz)

Vibration (Non-operating): 20G (20 - 2000 Hz)

Drop: 80 cm height

Bending: 50 N force

Compliant: RoHS compliant

Feature Support: Hardware Based Power Loss Data Protection; Thermal throttling; End-to-End Data Path Protection; TCG Opal 2.0
