Overview

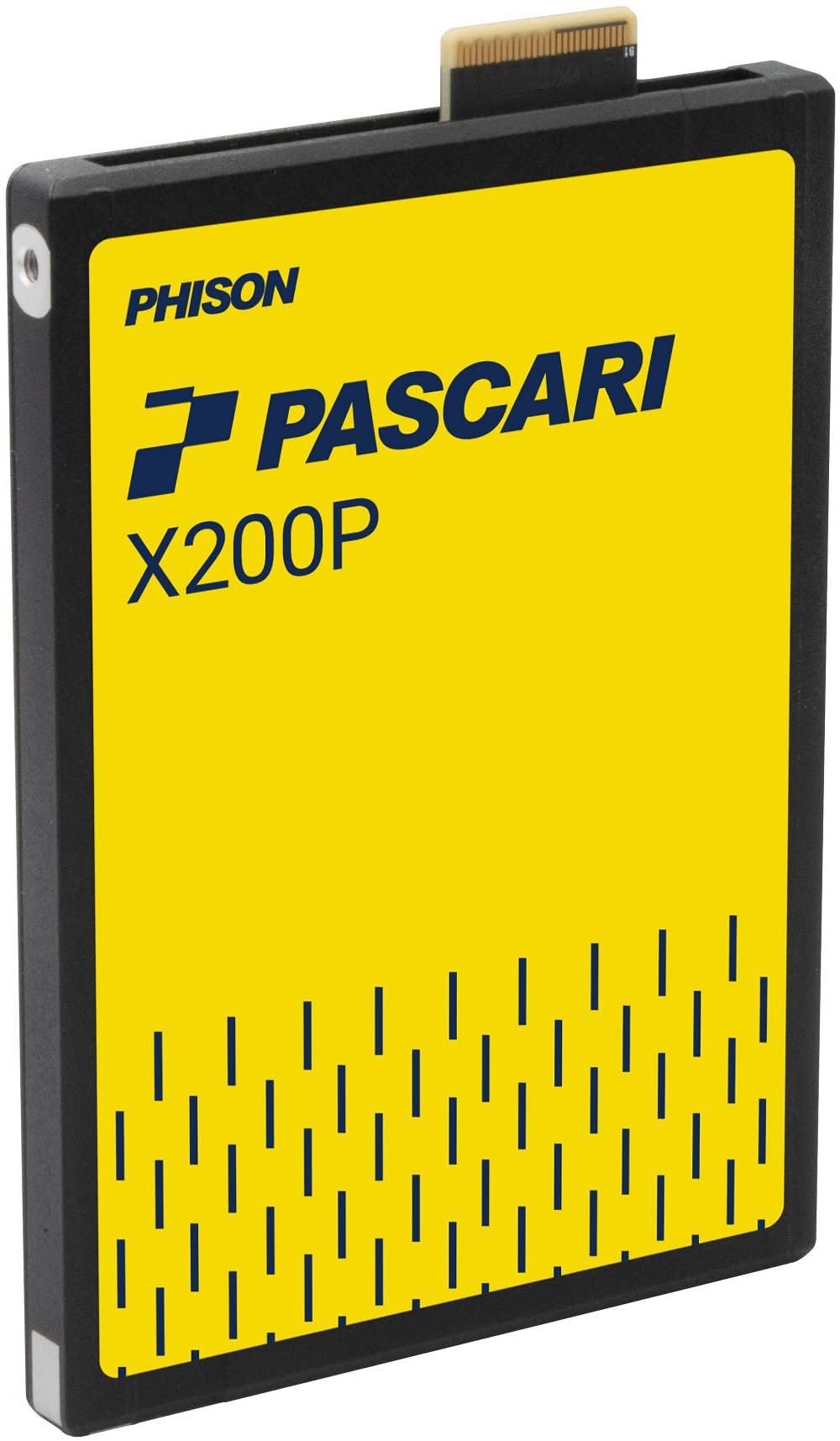

PHISON XX208H0315T3P2116T310 Pascari X200P 15.36TB U.2 15mm PCIE 5.0 Dual Port SED SSD
Specifications
Model Number:XX208H0315T3P2116T310
Brand: PHISON
Alt Part Number(s):XX208H0315T3P2116T310
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model:XX208H0315T3P2116T310
Capacity: 15.36 TB
Form Factor: U.2 15mm
Interface: PCIe Gen5 x4 (Dual Port 2x2 lanes)
Advanced Error Reporting: PCIe AER
Compliance:
PCI Express Base Spec Rev. 5.0
NVMe Base Spec Rev. 2.0
NVMe-MI Rev. 1.2
PCIe SFF-8639 Module Spec Rev. 5.0, Ver. 0.7
Sequential Read: up to 14,800 MB/s
Sequential Write: up to 8,500 MB/s
Random Read: up to 2,800K IOPS
Random Write: up to 420K IOPS
Active Power (128K Read, Avg. RMS): 19 W
Active Power (128K Write, Avg. RMS): 23 W
Active Power (4K Read, Avg. RMS): 21 W
Active Power (4K Write, Avg. RMS): 24 W
Active Power (4K 70/30 R/W, Avg. RMS): 23 W
Idle Power: 5 W
MTBF (million hours): 2.5
UBER: < 1 sector per 10¹⁸ bits read
DWPD: 1
TBW: 28.032 TB
Operating Temp. (°C): 0 – 70 (with airflow)
Non-Operating Temp. (°C): -40 – 85
Shock (Operating): 500 G, 2 ms
Shock (Non-Operating): 1000 G, 0.5 ms
Vibration (Operating): 2.17 Grms (7–800 Hz)
Vibration (Non-Operating): 16.3 Grms (10–2000 Hz)
Drop: 80 cm, 6 surfaces
Bending: 50 N, 60 s
Certifications: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL
Environmental Compliance: RoHS
Features:
LBAF: 512 / 512+8 / 4K / 4K 8 / 4K+64 Bytes
128 Namespaces
Dual Port
Reservation
Metadata Protection
Thermal Throttling
Power Loss Protection
Hardware AES-XTS 256-bit Encryption
SMBus Support
*
