Overview

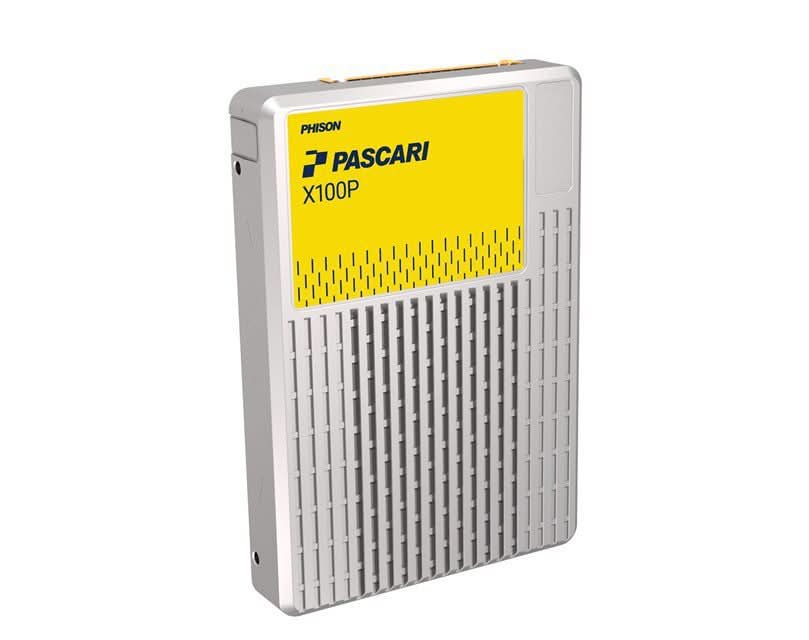

PHISON Pascari X100P XP106H003T84P224T0900 3.84TB U.2 Single Port PCIe Gen4x4 Opal SSD
Specifications
Model Number:XP106H003T84P224T0900
Brand: PHISON
Alt Part Number(s):XP106H003T84P224T0900
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model:XP106H003T84P224T0900
Capacity: 3.84TB
Form Factor: U.2
Security: Opal
Interface: PCIe Gen4x4 (Single Port x4 lanes)
NVMe: 1.4
Sequential Read (MB/s): 7,000
Sequential Write (MB/s): 6,700
4K Random Read (IOPS): 1,600K
4K Random Write (IOPS): 170K
Read Latency (µs): 100 (QD=1, Workers=1); 110 (QD=32); 450 (QD=64, Workers=8)
Write Latency (µs): 15 (QD=1, Workers=1); 300 (QD=32); 4000 (QD=64, Workers=8)
IOPS Consistency: 95%
QoS Read (µs, 99%): 100 (QD=1); 140 (QD=32); 600 (QD=64)
QoS Write (µs, 99%): 12 (QD=1); 200 (QD=32); 3200 (QD=64)
Power - Random Read/Write (W): 13.3 / 15.5
Power - Sequential Read/Write (W): 10.6 / 17.9
Idle Power (W): 5.8
Inrush Current: 1.5A
DWPD: 1
TBW: 7.01TB
MTBF (million hours): 2.5
UBER: < 1 sector per 10^18 bits read
Operating Temp (°C): 0 - 70
Non-Operating Temp (°C): -40 - 85
LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
Data Retention: 3 months
Encryption: AES-XTS 256-bit
Other Features: ECC, Wear Leveling, Bad Block Management, TRIM, SMART, Over-Provision, Firmware Upgrade, Metadata Protection, Thermal Throttling, Power Loss Protection, Reservation Support, SMBus, NVMe-MI
Compliance: PCIe 4.0, NVMe 1.4, RoHS
*
