Overview

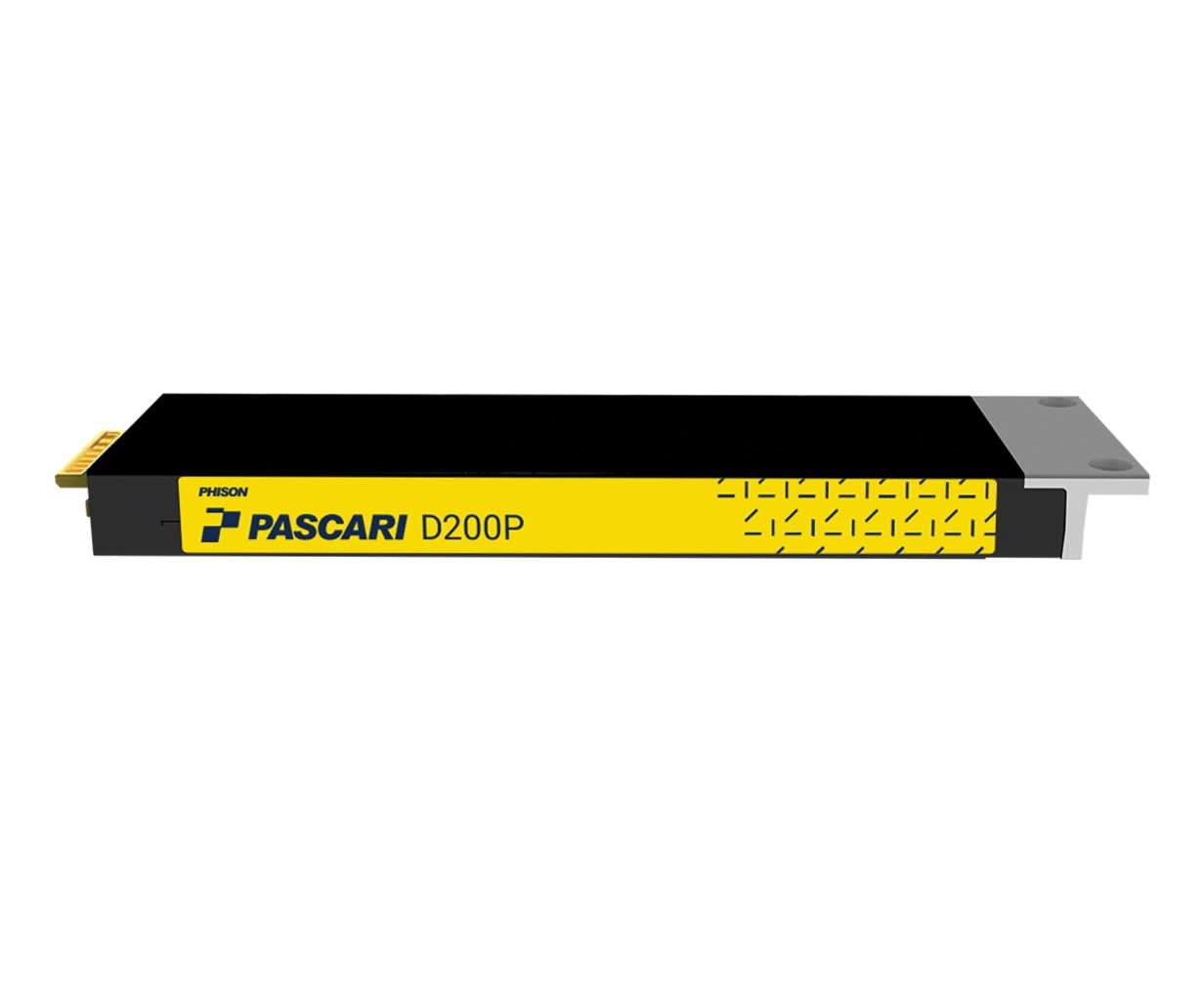

PHISON DP20AH031T92P212T0410 Pascari D200P 1.92TB EDSFF E1.S PCIe Single Port SED SSD
Specifications
Model Number:DP20AH031T92P212T0410
Brand: PHISON
Alt Part Number(s):DP20AH031T92P212T0410
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model:DP20AH031T92P212T0410
Capacity: 1.92 TB
Form Factor: EDSFF E1.S
Interface: PCIe Gen5 x4
Advanced Error Reporting: PCIe AER
Compliance:
PCI Express Base Spec Rev. 5.0
NVMe Base Spec Rev. 2.0
NVMe-MI Rev. 1.2
Datacenter NVMe SSD Spec V2.0
SNIA SFF-TA-1009 R3.1.1 / 1006 R1.5 / 1020 Rev1.1 / 1023 Rev 1.0
Sequential Read: up to 14,000 MB/s
Sequential Write: up to 4,200 MB/s
Random Read: up to 2,350K IOPS
Random Write: up to 140K IOPS
Active Power (128K Read, Avg. RMS): 16 W
Active Power (128K Write, Avg. RMS): 14 W
Active Power (4K Read, Avg. RMS): 15 W
Active Power (4K Write, Avg. RMS): 16 W
Active Power (4K 70/30 R/W, Avg. RMS): 13 W
Idle Power: 4.9 W
MTBF (million hours): 2.5
UBER: < 1 sector per 10¹⁸ bits read
DWPD: 1
TBW: 3,504 TB
Operating Temp. (°C): 0 – 70 (with airflow)
Non-Operating Temp. (°C): -40 – 85
Shock (Operating): 1000 G, 2 ms
Shock (Non-Operating): 1500 G, 0.5 ms
Vibration (Operating): 1.52 mm / 20 G (20–2000 Hz)
Vibration (Non-Operating): 3.08 Grms (7–800 Hz)
Drop: 80 cm height
Bending: ≤ 50 N
Certifications: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL
Environmental Compliance: RoHS, REACH
Features:
128 Namespaces
Single Port
Reservation
Metadata Protection
Thermal Throttling
Power Loss Protection
SMBus
End-to-End Data Path Protection
TCG Opal 2.04
Hardware AES-XTS 256-bit Encryption
Sanitize
*
