Description

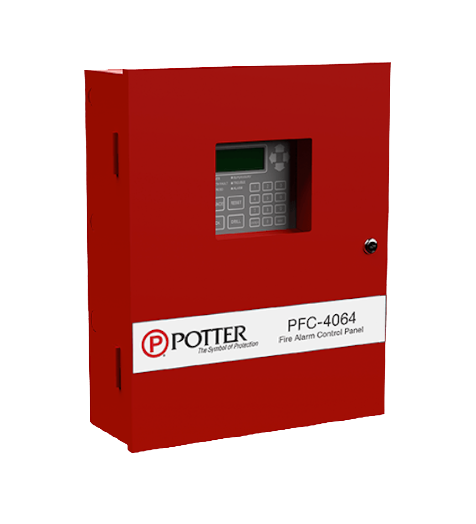

The Potter PFC-4064 Conventional Fire Alarm Control Panel is a compact, microprocessor-based unit designed for reliable fire system monitoring and communication. Equipped with six initiating device circuits and four high-current notification appliance circuits, it ensures comprehensive system supervision. With built-in Ethernet connectivity, a 5.0-amp power supply, and support for up to 31 accessories, the PFC-4064 is ideal for both small and expandable fire alarm installations.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Potter |
| Category |
Fire Alarm Systems |
| Part Number |
PFC-4064 |
| Subcategory |
Conventional Fire Alarm Control Panel |
| Inputs |
6 programmable Initiating Device Circuits (expandable to 192) |
| Notification Appliance Circuits (NACs) |
4 circuits, 24VDC, 3.0A each |
| Power Supply |
5.0A |
| Auxiliary Output |
1.0A programmable |
| Display |
80-character LCD with status LEDs |
| Communication |
Built-in Ethernet with listed IP Communicator |
| Connectivity |
P-Link RS-485 bus supports up to 31 accessories |
| Compliance |
UL-864, NFPA-70, NFPA-72 |
| Cabinet |
Metal enclosure with key lock and Lexan viewing window |
| Battery Capacity |
Supports up to two 12VDC, 18AH batteries |
| Synchronization |
Strobe sync for Gentex®, Amseco®, System Sensor®, Cooper/Wheelock® |
| Programming |
Onboard keypad navigation and limited configuration |
| Event History Buffer |
Built-in for recorded events |
| Dimensions |
14 × 4 × 18 in |
| Weight |
15 lbs |
Information About
PFC-4064
The PFC-4064 is a UL-864, NFPA-70, and NFPA-72 compliant conventional fire alarm control panel from Potter Electric Signal Company. It features a modular design that supports expansion up to 192 input circuits using IDC-6 modules, allowing adaptability for various building sizes and applications. Its metal enclosure includes a key lock and Lexan viewing window for secure system access, while the backlit LCD and LED indicators provide clear system visibility. Designed for both performance and convenience, the PFC-4064 integrates strobe synchronization, Ethernet connectivity, and a P-Link RS-485 bus for seamless integration with Potter system accessories.
Key Features:
- Six Programmable IDCs: Provides flexible configuration options for fire detection zones.
- Expandable Design: Supports up to 192 input circuits using IDC-6 expansion modules.
- Powerful Supply: 5.0A power supply with four NACs rated at 3.0A each for reliable signaling.
- Strobe Synchronization: Compatible with Gentex®, Amseco®, System Sensor®, and Cooper/Wheelock® devices.
- Integrated Ethernet: Built-in IP communicator allows remote monitoring and e-mail notifications.
- Auxiliary Output: 1.0A programmable output for additional fire alarm control functions.
- User-Friendly Interface: 80-character LCD display and system LEDs for clear status visibility.
- Accessory Support: P-Link RS-485 bus supports up to 31 system accessories for enhanced scalability.
The PFC-4064 delivers the reliability and precision required for professional-grade fire detection, notification, and system supervision applications.
