Description

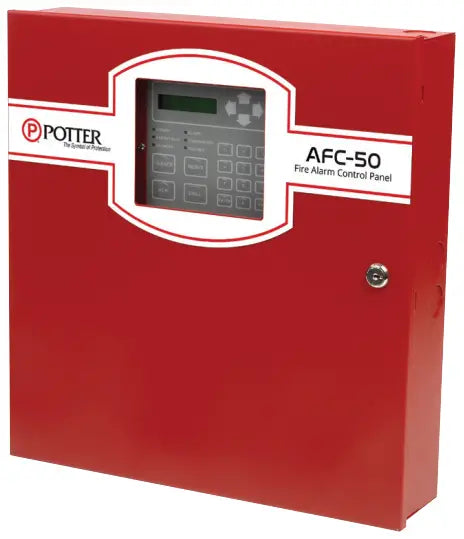

The Potter AFC-50 is an intelligent analog addressable fire alarm control panel supporting up to 50 devices. Designed for small to medium-sized facilities, it provides reliable detection, communication, and control through flexible SLC configurations. With built-in networking, power expansion, and strobe synchronization, the AFC-50 ensures scalable fire protection with comprehensive system integration.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Potter |
| Category |
Fire Alarm Equipment |
| Part Number |
AFC-50 |
| Subcategory |
Control Panels |
| Type |
Analog Addressable Fire Alarm Control Panel |
| Device Capacity |
50 addressable points (expandable with multi-point SLC modules) |
| Zones |
99 software zones |
| Display |
LCD user interface with menu navigation |
| Relays |
Dedicated Alarm, Supervisory, and Trouble relays |
| Power Supply |
5 Amps standard, expandable up to 310 Amps with PSN-1000 |
| NAC Circuits |
Two Class A/B NACs, 3 Amps each, expandable up to 188 |
| I/O Circuits |
Two Class A/B I/O circuits, 1 Amp each |
| Strobe Sync |
Gentex, AMSECO, System Sensor, Cooper Wheelock with Quadrasync |
| Communication |
Built-in IP communicator; optional two-line DACT |
| Programming |
Ethernet port for programming and network connectivity |
| Event History |
4,000-event history buffer |
| Battery Charger |
8–55 Ah, 27.3 VDC output |
| Operating Range |
32° to 120°F (0° to 49°C), up to 93% non-condensing humidity |
| Enclosure |
16-gauge cold rolled steel with locking door and Lexan window |
| Approvals |
NFPA, UL 864, IBC, CS, RS, PPU, AUX, DAC, March, NC, Rev Pol, OT |
| Dimensions |
16” W × 17” H × 3” D |
| Weight |
16 lbs |
Information About AFC-50
The AFC-50 is part of Potter’s line of analog addressable fire alarm systems, offering modular expansion and advanced communication features. It operates with the exclusive Potter protocol, supporting a full range of sensors, heat detectors, and modules on a single SLC. Equipped with a 5-amp power supply, multiple NACs, and I/O circuits, the AFC-50 is engineered to meet NFPA and UL standards for dependable life safety. Its built-in IP communicator, Ethernet programming port, and optional DACT provide flexible connectivity options, making it suitable for diverse building applications.
Key Features:
- Device Capacity: Supports up to 50 addressable points with expansion via SLC modules.
- Power Supply: 5-amp capacity with two regulated 3-amp NACs and two 1-amp I/O circuits.
- Strobe Synchronization: System-wide Quadrasync technology for Gentex, AMSECO, System Sensor, and Cooper Wheelock devices.
- Expandable Power: Compatible with up to 31 PSN-1000 intelligent power supplies, adding up to 310 amps.
- Built-in Communication: Integrated IP communicator with optional DACT for zone or point reporting.
- Programming and Control: Ethernet port for configuration, email status reporting, and event notifications.
- History Storage: 4,000-event history buffer for long-term system tracking.
- Compliance: Meets NFPA 72, ANSI/UL 864, and IBC code requirements.
The AFC-50 delivers the reliability and precision required for intelligent addressable fire detection and facility protection.
