Description
Note:

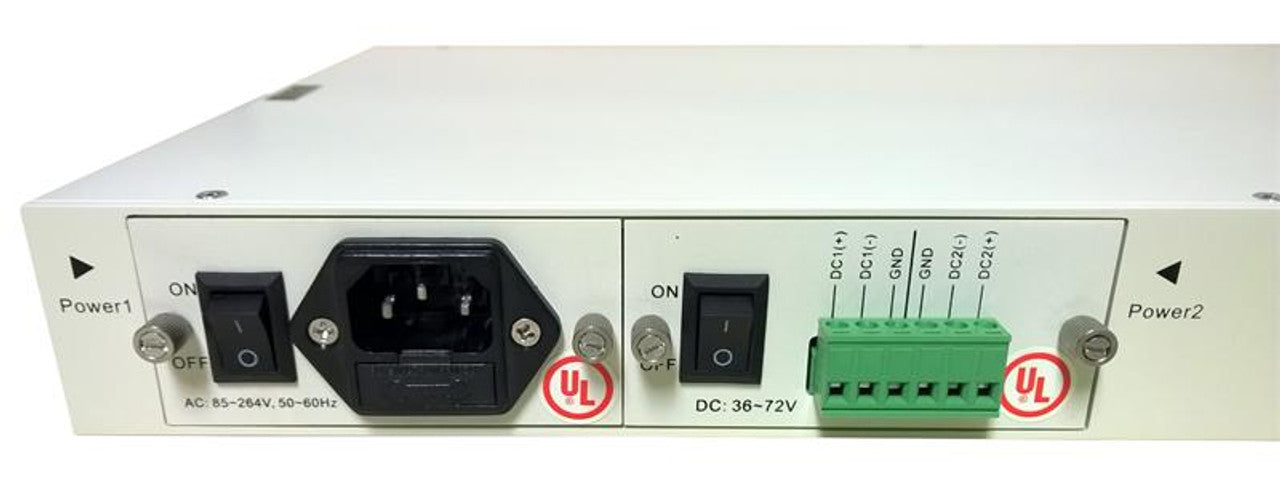

The OLPS-RM-35-AD includes one OLPS-RM-AC power supply with AC90-240V input and one OLPS-RM-DC48 power supply with DC 36-72V input.
Product description

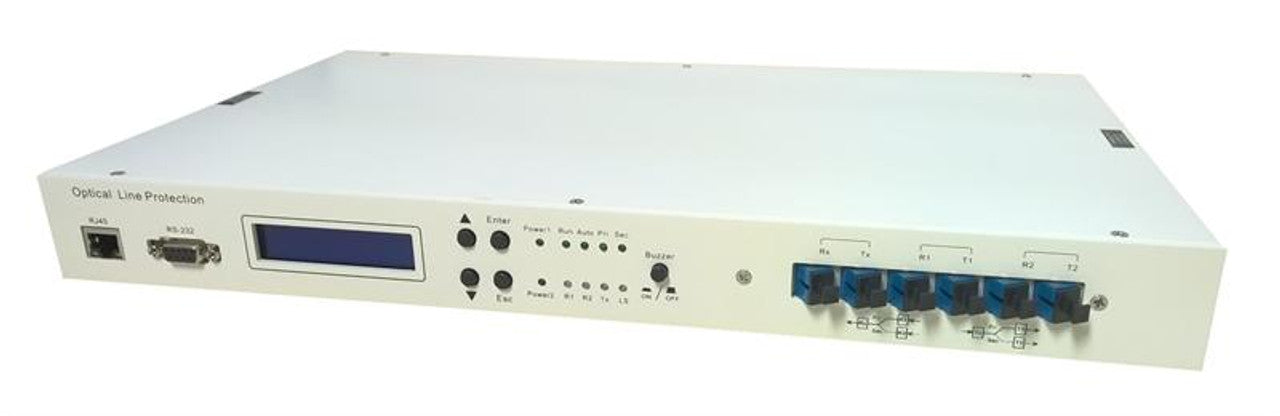

The OLPS-RM-35-AD is a high performance Optical Line Protection System for critical fiber optic transmission circuits. The OLPS works as a 1:1 protection system. The 1:1 protection system has the advantage of a very low insertion loss compared with 1+1 protection systems. The OLPS-RM-35-AD offers only 1.2dB of insertion loss, making it a favored protection choice for tight optical budget applications.
The OLPS is an automatic system that switches fiber communication from a main fiber line to an alternate backup fiber when the main line communication is disabled. This is done by constantly monitoring the optical level of the main line.
When signal level gets under a set threshold, communication is diverted on the secondary path in less than 35 miliseconds. Unit has management available via console and SNMP.
Management allows set-up of threshold optical level for switching and behavior for recovery: automatic reverting to main when signal is restored, manual revert or no switch.
The new OLPS-RM-35-AD chassis offers 19" rack mounting brackets with only 1U of space used, saving vital rack space when necessary. An 8 slot OLPS rack on 4RU space is available for double rack space density, the OLPS-4RM-DD chassis

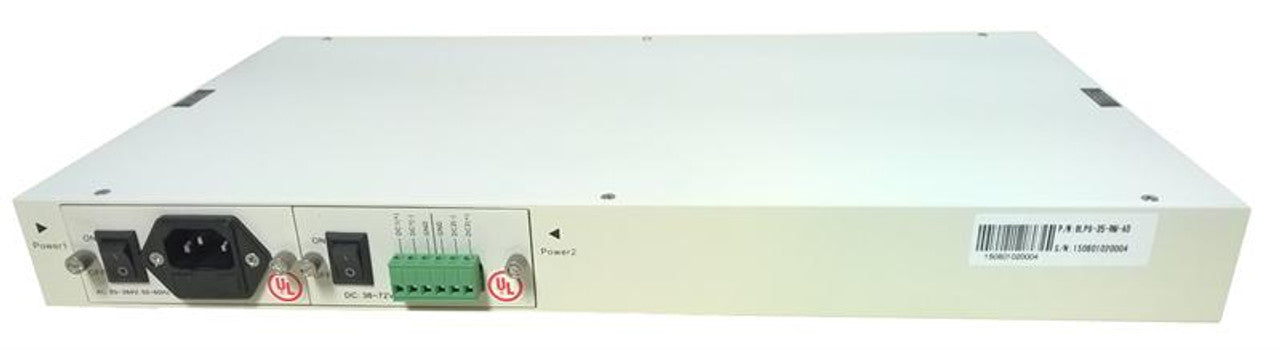

The OLPS chassis provides redundant power supply system with "hot swap" feature, to provide continuous operation. It can accomodate both AC (110V) and DC (48V) power supply units, either in mixed or same type of power input.
Technical specifications
| Chassis: | 1RU height, 19" wide mounting system |
| Optical Protection System: | 1:1 |
| Operating wavelengths: | 1310nm (+/-50nm) and 1550nm (+/-50nm) |
| Monitored power range: | -50~+23dBm |
| Accuracy level: | +/-0.25dB |
| Insertion Loss: | Tx<1.2dB, Rx<1.2dB |
| Switching time: | <35ms |
| PDL: | <0.05dB |
| WDL: | <0.1dB |
| Dimensions(WxDxH): | 440mm x 140mm x 89mm |
| Temperature: | -10~60°C (Operating); -20~75°C (Storage) |
| Power: | 90-260V AC or -36 to -72V DC hot swappable power supply units, 2 slots available on chassis |
| MTBF: | 60,000 hours |
Additional information on OLPS-RM-35-AD unit:
PDF datasheet
