Description
Product description

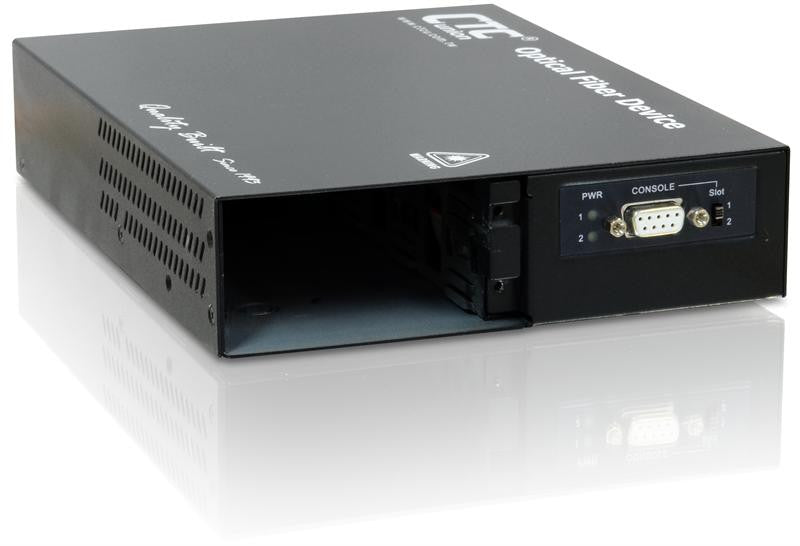

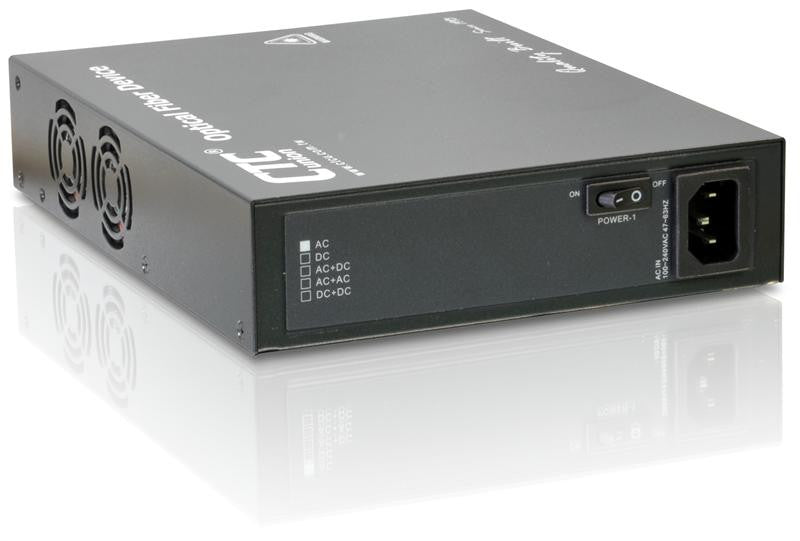

FRM220-CH02M-AC is a two slot chassis for FRM220 compatible media converters. The casing has integrated AC 90-240V power supply and provides a serial RS-232 DB9 console port for management and a switch that selects which slot can be accessed for management. This product is optional and intended for high end applications requesting a single package unit (embedded power supply) and no separate power adapter .
Among the optional integrated power casings with two slots, there are also the FRM220-CH02M-DC48 and FRM220-CH02M-AD chassis.
FRM220-CH02M-DC48 has an embedded DC 18~72V power input, ideal for telecom grade power requirements, while FRM220-CH02M-AD has dual redundant AC and DC 18~72V power supplies. For such options please do not hesitate to contact us.
Technical specifications
| Material: | Painted stainless steel casing, 2U height, accepting 19" or 23" wide mounting system |
| Compatibility: | Accepts all models of media converters from FRM220 series, hot swappable converters (allowing changing of individual converters during operation) provides DB9 RS-232 serial console port for management of FRM220 series converters |
| Cards: | 2 slots for FRM220 series media converters |
| Power: | single 90-260V AC, single -18 to -72V DC or both AC and DC redundant option |
| Temperature: | 0 ~ 50°C (Operating); 0 ~ 70°C (Storage) |
| Humidity: | 20 ~ 80% non condensing (Operating); 0 ~ 90% (Storage) |
| Power Consumption: | 10W |
| Dimensions(WxDxH): | 180mm x 135mm x 35mm |
| Weight: | 400gr (Single AC power unit, unpopulated chassis) |
| Compliance: | CE Mark, FCC part 15 Class A |
| MTBF: | 80,000 hours |
Additional information on FRM220-CH02M-AC optional casing:
PDF datasheet
