Overview

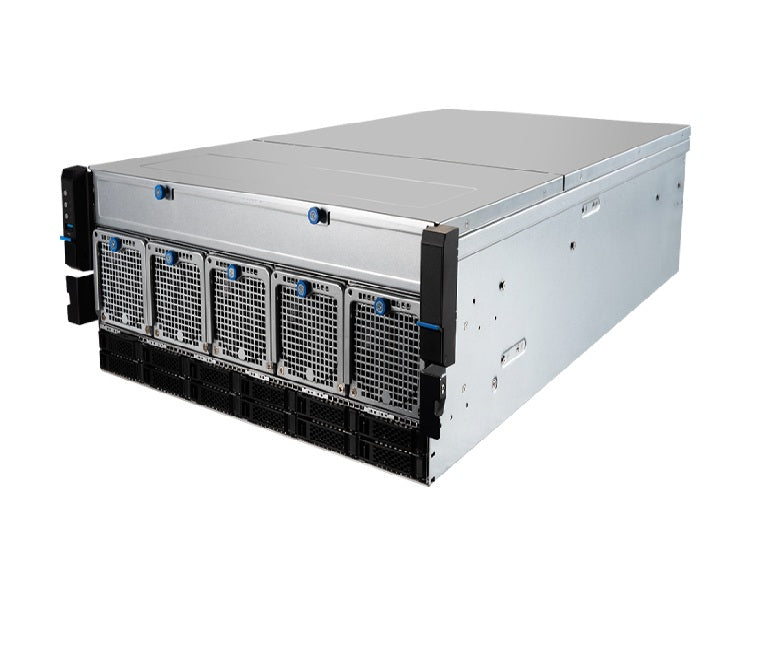

The MSI G4101-05 is a high-end 4U GPU server barebone designed for AI inference, 3D rendering, and media streaming. It is the most power-efficient SKU in the G4101 series, featuring an air-cooled CPU design and 80 PLUS Titanium redundant power supplies.
Specifications
Model Number: G4101-05
Brand: MSI
Alt Part Number(s): G4101-05
Product Type: Barebone Server
Technical Description
Brand: MSI
Model Number: G4101-05
Series: G4101
Processor Type: Single AMD EPYC 9005/9004 Series
Processor Core: 128-Core
Processor Thread: 256-Thread
Processor Power: TDP Up to 500W
Processor Socket: (1) AMD Socket SP5
Motherboard: MS‑S3371
Chipset Type: System-on-a-Chip (SoC)
Graphics Controller: ASPEED AST2600
Number of Drive Bays: (12) Hot-swap 2.5” U.2 PCIe 4.0 NVMe drive bays
Networking: (1) 1000Base-T Dedicated Server Management port
Expansion Slots: (4) × PCIe 5.0 ×16, (2) × PCIe 4.0 ×16
Memory Supported: 3TB
Memory Size: 256GB per DIMM
Memory Technology: DDR5
Memory Speed: 6400MT/s(1DPC)
Memory Slots: 12 DIMM slots
Memory Channels: 12-Channels
Cooling: (1) Air cooling module, (5) 8038 Easy-Swap chassis fans
Power Supply: (1+1) Redundant 3000W CRPS Titanium
Form Factor: 4U Rackmount
Height: 6.9"
Width: 17.2"
Depth: 32.7"
*
