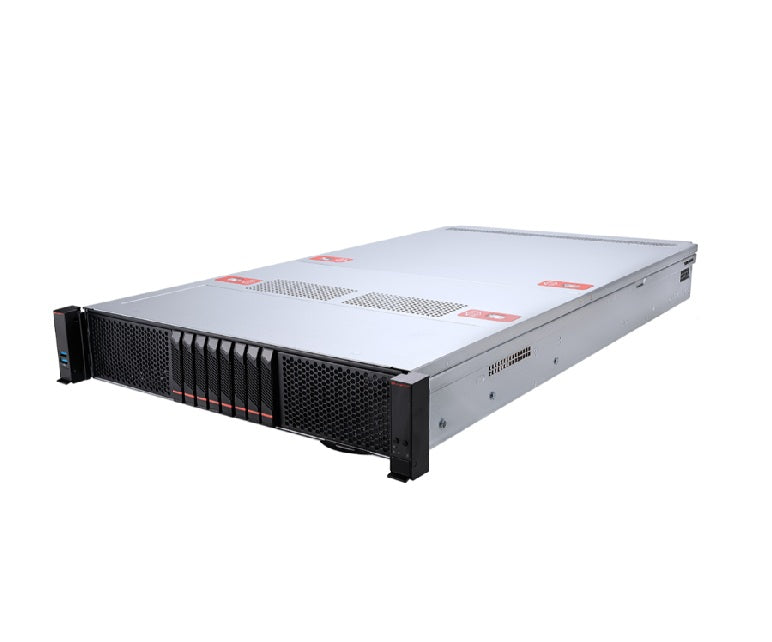

The MSI S5062X270RAU8 is a 2U dual-socket enterprise server motherboard (often found in the CX270-S5062 barebone system) based on the DC-MHS architecture. It is specifically engineered to balance high-density compute with flexible storage, supporting the latest Intel Xeon 6 processors
Specifications
Model Number: S5062X270RAU8
Brand: MSI
Alt Part Number(s): S5062X270RAU8
Product Type: Barebone Server
Technical Description
Brand: MSI
Model Number: S5062X270RAU8
Model Series: CX270-S5062
Processor Type:Dual Intel Xeon 6500/6700 series
Processor Core: 120-Core
Processor Socket: (2) LGA4710 (Socket E2)
Processor Power: 350W
Motherboard: MS-S3681
Networking: 1 × Dedicated 1000Base‑T management RJ‑45 port
RAID Levels: NVMe RAID 0/1/5/10 support Intel VROC
Front Drive Bays: 8 x 2.5" U.2 PCIe 5.0 x4 NVMehot-swap bays
Rear Drive Bays: 2 x hot-swap E1.S 9.5mm PCIe 5.0 x4 NVMe bays
Graphics Controller: ASPEED AST2600
Memory Supported: 8TB
Memory Capacity: 256GB Per Slot
Memory Technology: DDR5
Memory Channels: 16 Channels
Memory Slots: 32 x DIMM
Expansion Slots: 7 × PCIe 5.0 x16 slots
Cooling: (2) EVAC air cooling modules, (6) 6056 Hot-swap System Fans
Power Supply: (1+1) Redundant 2700W CRPS 80PLUS Titanium
Form Factor: 2U Rackmount
