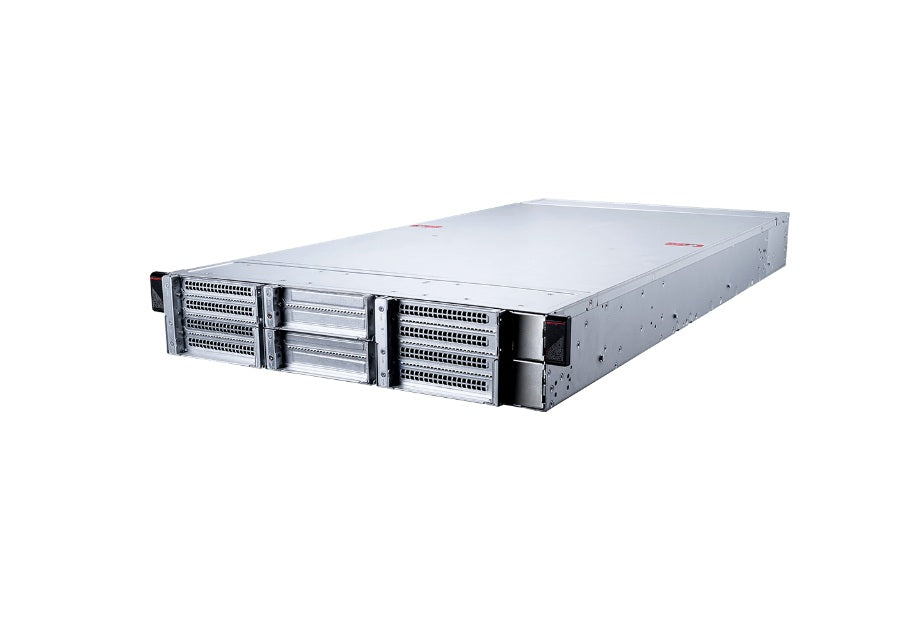

The MSI S3063G290RAU4 (often marketed as CG290‑S3063) is a 2U rackmount GPU‑ready server barebone designed for AI, edge compute, small‑scale inference, and accelerated workloads. It combines high‑speed memory, NVMe storage support, and several PCIe expansion slots for GPU cards
Specifications
Model Number: S3063G290RAU4
Brand:MSI
Alt Part Number(s): S3063G290RAU4
Product Type: Barebone Server
Technical Description
Brand: MSI
Model Number: S3063G290RAU4
Model Series: CG290‑S3063
Processor Type: Single Intel Xeon 6500P/6700P-Series
Processor Socket: (1) LGA4710 (Socket E2)
Processor Core: 56-Core/112 threads
Processor Power: 350W
Chipset Type: Intel C690
Motherboard: MS‑S409
Number of Channels: 8-Channel
Networking: (1) 1000Base-T (Intel I210‑AT)
Drive Bays: (4) Rear hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays
RAID: NVMe RAID 0/1/5/10 support (Intel® VROC RAID key required)
Graphics Controller: ASPEED AST2600 BMC
GPU support: 4 dual‑width
GPU Model: NVIDIA H200 NVL, NVIDIA RTX PRO 6000 Blackwell PCIe
Memory Capacity: 256GB (RDIMM)
Memory Supported: 4TB
Memory Technology: DDR5
Memory Speed: RDIMM: 6400MT/s(1DPC), 5200MT/s(2DPC),MRDIMM: 8000MT/s(1DPC)
Memory channels: 8 Channels
Memory Slots: 16 x DIMM
Expansion Slots: (7) PCIe 5.0 x16
Cooling: (6) 6056 System Fans, 1) Air cooling module
Power Supply: 4 × PSUs Redundant (configured as 2+2 for redundancy)
Form Factor: 2U Rackmount
