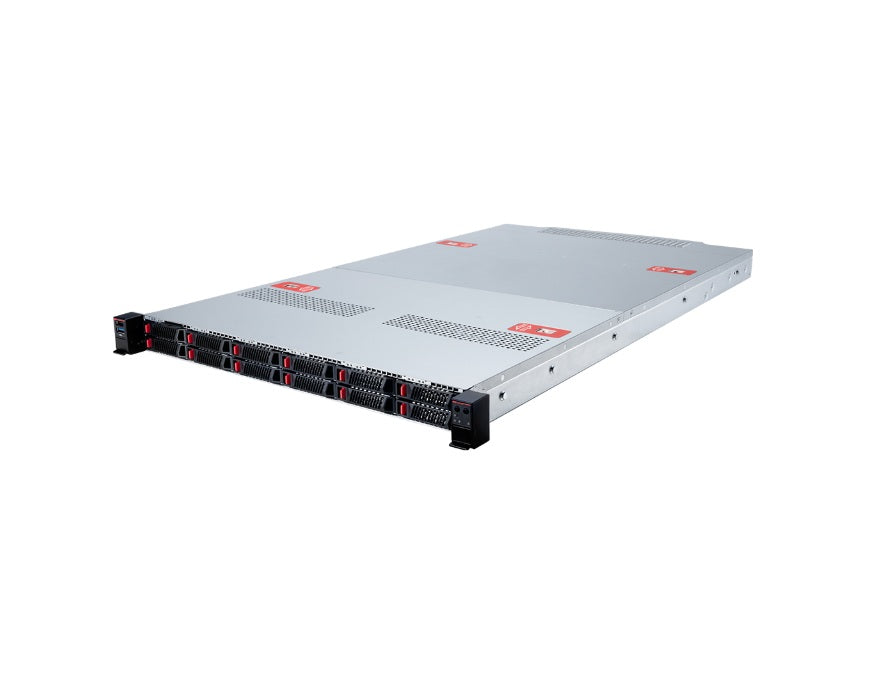

The MSI S5062X170RAU12 (also known as the CX170-S5062) is a high-density 1U dual-socket rackmount server designed for cloud computing, AI inference, and content delivery. It is built on the DC-MHS (Data Center-Modular Hardware System) architecture to support the Intel Xeon 6 processor family
Specifications
Model Number: S5062X170RAU12
Brand: MSI
Alt Part Number(s): S5062X170RAU12
Product Type: Barebone Server
Technical Description
Brand: MSI
Model Number: S5062X170RAU12
Model Series: CX170-S5062
Processor Type: Dual Intel Xeon, 6500/6700-Series
Processor Socket: (2) LGA4710 (Socket E2)
Processor Core: 112-Core/224-threads
Processor Power: 350W
Motherboard: MSI D5062
Networking: 1000Base‑T server management port
Front hot‑swap bays: 12 × 2.5″U.2 PCIe 5.0 x4 NVMe
Rear hot‑swap bays: 2 × E1.S 9.5 mm PCIe 5.0 x4 NVMe
RAID: NVMe RAID 0/1/5/10 support (Intel VROC)
Graphics Controller: ASPEED AST2600 BMC
GPUSupported: 2 × PCIe 5.0 x16
Memory Capacity: 256GB, MRDIMM-64GB
Memory Speed: RDIMM: 6400MT/s(1DPC), 5200MT/s(2DPC),MRDIMM: 8000MT/s (1DPC)
Memory Supported: 8TB
Memory Technology: DDR5
Memory Channels: 16 Channels
Memory Slots: 32 x DIMM
Expansion Slots: (2) PCIe 5.0 x16 FHHL single wide slots
Cooling: (2) EVAC air cooling modules, (8) 4056 Hot-swap System Fans
Power Supply: Redundant (1+1) 2000W 80 PLUS Titanium
Form Factor: 1U Rackmount
