Description

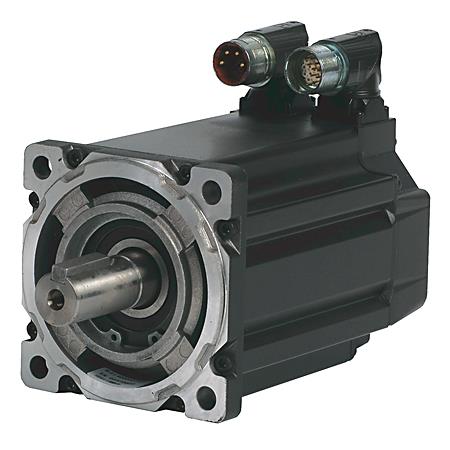

The MPM-B2153F-MJ72AA is a high-performance Kinetix® MP-Series servo motor from Allen-Bradley, designed for precision motion control in demanding industrial automation systems. It features a 215 mm frame size, low-inertia rotor, and high torque output, making it ideal for high-speed, high-response applications.

Technical Specifications

Information About MPM-B2153F-MJ72AA

The Allen-Bradley MPM-B2153F-MJ72AA is a medium-inertia servo motor from the MP-Series™, engineered to deliver precise motion control in demanding industrial applications.

Key Features

• Voltage and Speed:

  • Operates at 460 V AC with a base speed of 3000 RPM.

• Torque and Power:

  • Provides a continuous stall torque of 45.0 Nm (398 lb-in) and a peak stall torque of 99.0 Nm (876 lb-in).

  • Delivers a continuous output power of 7.2 kW.

• Frame and Mounting:

  • Features a 215 mm (8.46 in.) frame size with IEC metric mounting dimensions, facilitating integration into various systems.

• Feedback System:

  • Equipped with a multi-turn high-resolution encoder for accurate position feedback.

• Shaft and Connectivity:

  • Comes with a keyed shaft extension and SpeedTEC DIN connectors that are right-angle and 180° rotatable, enhancing installation flexibility.

• Environmental Protection:

  • Designed with an IP65/IP67-rated enclosure, offering protection against dust and water ingress, suitable for harsh industrial environments.
