Description

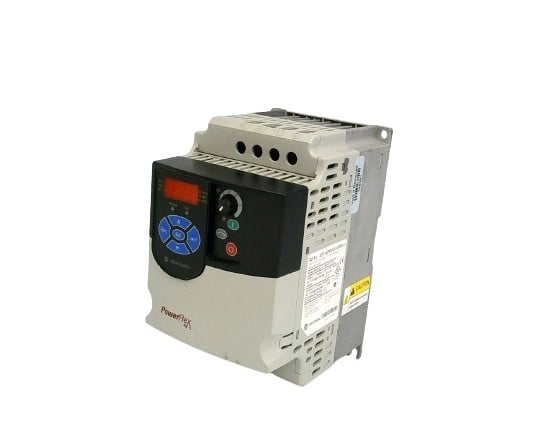

The Allen-Bradley 22F-V4P5N103 PowerFlex 4M is a compact and cost-effective variable frequency drive (VFD) designed for simple speed control of three-phase AC motors.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley |
| Category |
Drives |
| Part Number |
22F-V4P5N103 |
| Subcategory |
|
|
Amperage
|
4.5 Amp |
| Blade Dimensions |
100 mm W x 136 mm D x 174 mm H |
|
Enclosure
|
IP20- NEMA/UL?Type Open |
| Input Voltage |
120 V |
| Output Current |
4.5 A |
| Power Rating |
0.75 kW |
| Standard |
C-TICK,CE,CUL,GOST,UL |
| Connection Type |
Fixed Terminal Block |
| Frequency |
50-60 Hz |
| Mounting Type |
Panel Mount |
| Power Factor |
0.98 |
| Split Crucible |
S |
| Voltage |
120 Volt |
| Weight |
3.10 lbs |
Information About 22F-V4P5N103
The Allen-Bradley 22F-V4P5N103 is a PowerFlex 4M adjustable frequency AC drive designed to provide compact and cost-effective motor speed control in a variety of light industrial applications. It is optimized for OEMs and end users seeking simple installation, configuration, and reliable operation in panel-mount environments.
Key Features:
- Power Rating: Supports motors up to 0.75 kW (1 HP), suitable for a broad range of fractional horsepower applications.
- Input Voltage: Accepts 120V AC single-phase input power, making it adaptable for use in standard low-voltage systems.
- Output Current: Delivers 4.5 A, providing ample drive capacity for its rated motor size.
- Frequency Range: Operates at 50/60 Hz with adjustable output frequency for tailored motor control.
- Control Method: Utilizes Volts per Hertz (V/Hz) control for straightforward and efficient motor speed regulation.
- User Interface: Equipped with a fixed digital keypad and LED display for intuitive parameter access and diagnostics.
- Communication: Features integral RS-485 communication supporting Modbus RTU and Rockwell DSI protocols for streamlined network integration.
- Enclosure Type: IP20 open-type design, intended for installation within control cabinets.
- Mounting Options: Supports both DIN rail and panel mounting, with zero-stacking capability up to 40°C for space-saving installations.
The 22F-V4P5N103 PowerFlex 4M AC drive is ideal for small machinery and systems requiring reliable, affordable, and user-friendly variable speed motor control. Its compact footprint, built-in communication, and straightforward operation make it a go-to choice for a wide range of drive applications.
